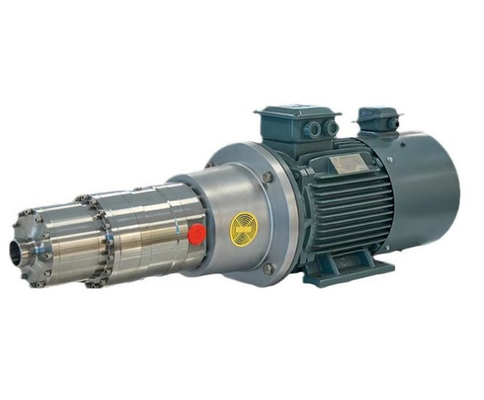

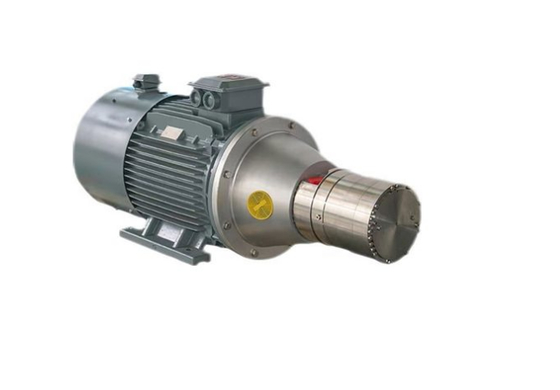

10-80 Bar Pressure-Adaptable DHP 4.5 Axial Piston Pump - High-Pressure Water Treatment Consumables

Product Details:

Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: DHP 4.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information
Product Model: DHP 4.5 Geometric Displacement: 50 Cm³/rev
Rated Flow At Rated Speed (1500 Rpm): 4.5 M³/h (equivalent To 75 L/min In Minute Flow Rate) Minimum Outlet Pressure: 10 Bar
Maximum Continuous Outlet Pressure: 80 Bar (For Higher Or Lower Pressure Requirements, Please Contact FENIGAL Sales Representative)
Highlight:

high-pressure axial piston pump

,

water treatment consumables pump

,

pressure-adaptable DHP 4.5 pump

Product Description

The DHP 4.5 axial piston pump, a high-stability water treatment consumable from WUXI FENIGAL, is customized for large/medium seawater & industrial desalination systems. As a core model in the DHP series, it excels in low noise, strong corrosion resistance, and wide condition adaptability—becoming essential fluid transfer equipment for industrial reverse osmosis desalination.

Operating on the axial piston principle, its plungers (parallel to the drive shaft) reciprocate in bores to adjust pump cavity volume, enabling high-pressure transfer of low-viscosity corrosive media (seawater, industrial saline wastewater). Unlike traditional pumps, it uses the transported fluid as lubricant, eliminating oil tanks and oil leakage to meet desalination’s strict cleanliness demands. The integrated flushing check valve simplifies RO membrane system piping, reducing installation space and costs—ideal for factory-level wastewater desalination and medium-sized seawater desalination stations.

Core Advantages for Water Treatment

  • Large Flow & Low Noise: Delivers 4.5 m³/h flow at 1500 rpm rated speed, satisfying large/medium system needs. Ultra-low pulse, ≤78 dB(A) noise (per EN ISO 3744-2010), fitting environment-sensitive industrial sites.
  • Strong Corrosion Resistance & Wide Adaptability: Key components use 2205 duplex stainless steel, resisting high-salinity corrosion. 10-80 Bar continuous outlet pressure adapts to different RO membranes; 2-5 Bar low inlet pressure reduces front-end equipment configuration difficulty.

Core Technical Parameters of DHP 4.5

Parameter Category Specific Value
Product Model DHP 4.5
Geometric Displacement 50 cm³/rev
Rated Flow (1500 rpm) 4.5 m³/h (75 L/min)
Minimum Outlet Pressure 10 Bar
Maximum Continuous Outlet Pressure 80 Bar (Contact FENIGAL sales for other requirements)
Minimum/Maximum Inlet Pressure 2 Bar / 5 Bar
Continuous Operating Speed Range 700～1800 rpm
Operating Noise (EN ISO 3744-2010) ≤78 dB(A) (measured on full unit at max pressure/speed)
Power (1500 rpm & 80 Bar) 15.0 kW
Medium Temperature 2～50 ℃ (NaCl concentration-dependent)
Ambient Temperature 0～50 ℃
Overall Weight 34.5 kg
Integrated Component Flushing Check Valve
Core Application Large/medium seawater desalination, industrial wastewater desalination, resource recovery

Power Parameters (1500 rpm Rated Speed)

Pump Model Rated Flow (L/min) Rated Flow (m³/h) Power at 60 Bar Power at 70 Bar Power at 80 Bar Rated Speed (rpm)
DHP 4.5 75 4.5 11.0 kW 15.0 kW 15.0 kW 1500

Inlet & Outlet Dimensions

Piston Pump Model Inlet Size Outlet Size
DHP 4.5 M42×1.5, 22 mm Depth M42×1.5, 22 mm Depth

Overall Dimensions (mm, with Motor)

Piston Pump A B H K P AD HD C D L G IEC Motor
DHP 4.5 254 210 160 15 350 260 420 253 204 605 1069 11 kW - 4P
DHP 4.5 254 254 160 15 350 265 420 253 204 645 1109 15 kW - 4P
DHP 4.5 279 241 180 15 350 265 445 253 204 695 1159 18.5 kW - 4P

Installation & Operation Tips

  1. Interface Connection: "I" = inlet, "O" = outlet (M42×1.5). Match pipeline threads to avoid forced connection damage; ensure tightness to prevent high-pressure leakage.
  2. Filtration Requirement: Install 10 μm absolute filter (≥99.98% efficiency, β10>5000) at inlet—prohibit 90% efficiency filters to avoid internal component wear.
  3. Pressure Protection: Inlet low-pressure switch (2 Bar) prevents dry running; outlet high-pressure switch (70 Bar) + safety valve (5-9 MPa) protects RO membranes/pipelines.
  4. Start-Up/Shutdown: Flush with fresh water after shutdown (add bactericide if >15 days shutdown). Never start with rear valve closed.

Maintenance & Warranty

  • Daily Maintenance: Check filter pressure difference (replace element if >0.5 Bar) to keep inlet fluid clean.
  • Regular Inspection: Full inspection every 8000 hours (check shaft seal leakage, plunger wear—replace parts if flow drops >10%).
  • Warranty: 1-year free maintenance (delivery date); 8000-hour maintenance-free warranty (if operated as required, max 18 months).
