DuPont SFP-2860 PVDF Ultrafiltration Module 51m² for Wastewater
Product Details:
| Place of Origin: | China |
| Brand Name: | DuPont |
| Certification: | CE |
| Model Number: | SFP-2860 |
| Document: | UF-IntegraTec-P-Series-PVDF...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Area: | 51 M² (549 Ft²) | Flux Range (25°C): | 40–90 LMH |
|---|---|---|---|
| Max TMP: | 2.1 Bar | Flow Rate: | 2.0–6.9 M³/hr |
| Weight (Empty): | 48kg | Target Applications:: | Industrial Wastewater Reuse ,Seawater Pretreatment For Desalination ,Compact Containerized Plants, Cooling Tower Blowdown Recovery |
| Highlight: | DuPont SFP-2860 PVDF ultrafiltration membrane,industrial wastewater UF membrane,DOW PVDF ultrafiltration module |
||
Product Description

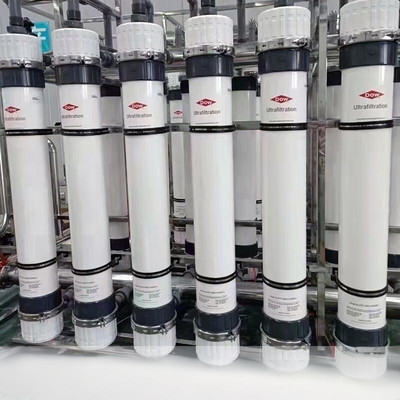

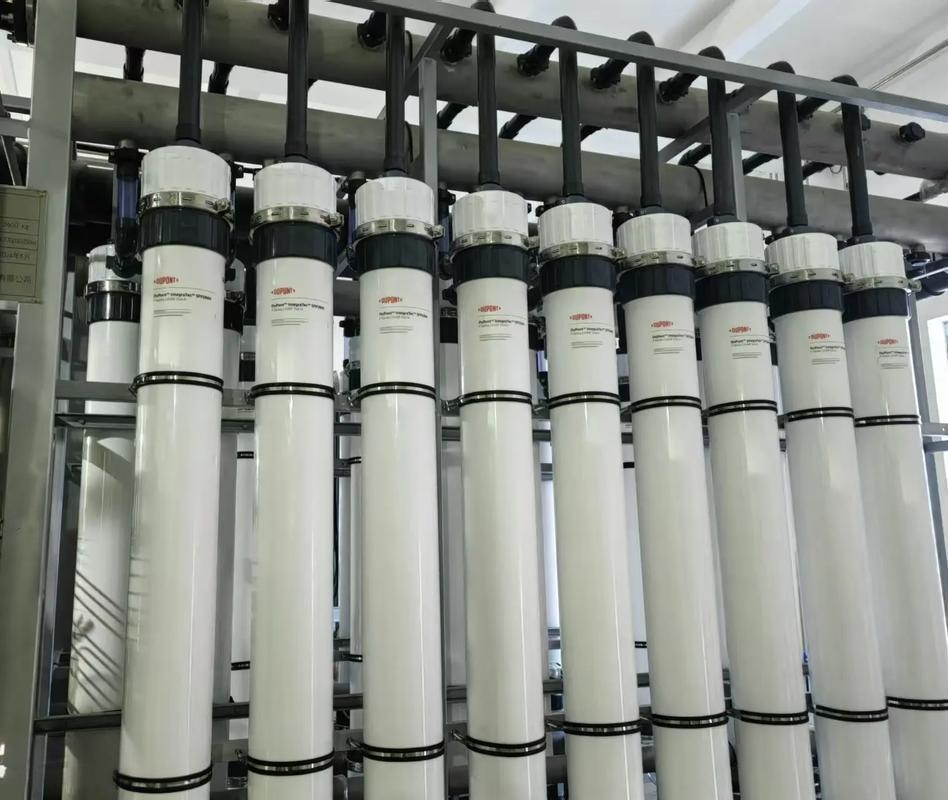

The DuPont UF SFP-2860 ultrafiltration module delivers robust performance in space-limited applications. Featuring PVDF hollow fiber technology with an outside-in flow configuration, it efficiently handles feed water with high solids while minimizing pretreatment needs and backwash volumes.
- Precision Filtration: 0.03 μm nominal pore size removes bacteria, viruses, colloids, and particulates to protect downstream RO systems.
- Engineered Durability: Hydrophilic PVDF fibers offer superior mechanical strength and chemical resistance (pH 2-11) for extended service life.
- Space-Saving Design: Shorter length (1,860 mm / 73.2 in) ideal for low-ceiling installations with 51 m² (549 ft²) effective membrane area.
- Broad Compatibility: Processes surface water, seawater, industrial wastewater, and municipal effluents.
| Attribute | Value |
|---|---|
| Membrane Area | 51 m² (549 ft²) |
| Flux Range (25°C) | 40–90 LMH |
| Max TMP | 2.1 bar |
| Flow Rate | 2.0–6.9 m³/hr |
| Weight (Empty) | 48kg |
| Target Applications | Industrial wastewater reuse, Seawater pretreatment for desalination, Compact containerized plants, Cooling tower blowdown recovery |
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m2/hr | 24-70 gfd |
| Flow range | 2.0 - 6.1 m3/hr | 9.2 - 26.7 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
- Filtrate turbidity ≤0.1 NTU
- Filtrate SDI ≤2.5
Proper start-up of a UF system is indispensable for preparing the membranes for operational service and preventing membrane damage. Adhering to the correct start-up sequence also contributes to ensuring that the operating parameters of the system conform to the design specifications.
Before commencing the system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration, and other system checks should be accomplished. Kindly refer to the product technical manual.
