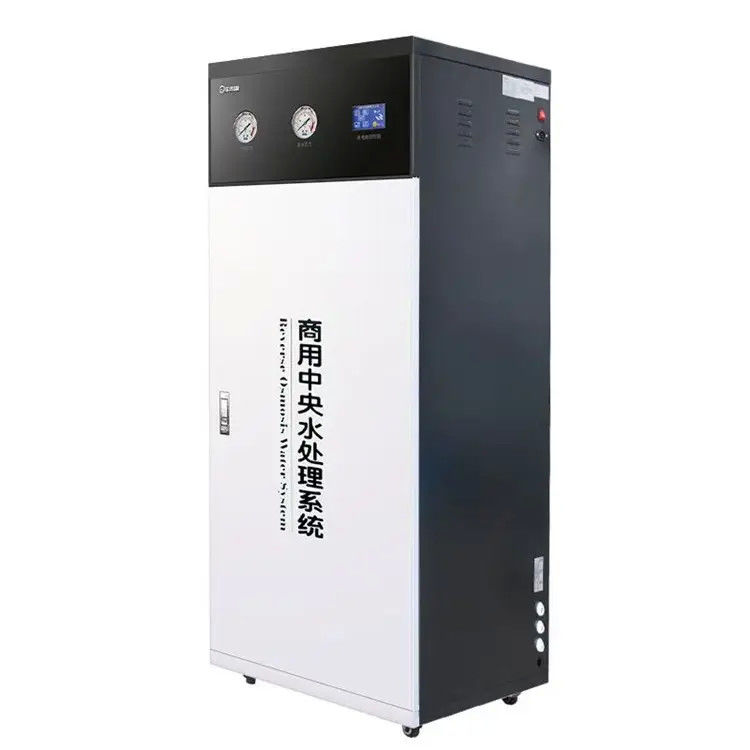

1600G All-in-one Design Reverse Osmosis Water Plant For Commerical
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Brackish Water Reverse Osmosis Water Plant |
| Document: | W0405-RO Data sheet-ibu02.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Production Capacity Of This Plant: | 1600G | Product Code: | SW-1600-200E2 / ZW-1600-200E2 |
|---|---|---|---|
| Feed Water TDS: | <2000 Ppm | Main Material Material Of Pipe: | SS304 |
| RO Membrane: | Filmtec/Hydranautics | Origin: | China |
| Some Configuration Of This Plant: | 20PP*20CTO+20PP+2-8+4040+Leo 2-4+Liquid Level Sensor+200SS304 (3 Pressure Sensors, 2 Water Quality Sensors, 1 Liquid Level Sensor) | ||
| Highlight: | All-in-one ro water plant,1600G Reverse Osmosis Water Plant,Commerical reverse osmosis water treatment plant |
||
Product Description
1600G All-in-one Design Reverse Osmosis Water Plant For Commerical
✅ All-in-One Compact System
- Pre-assembled & Pre-tested: Reduces installation time by 80% – just connect power and feedwater.
- Modular Skid Design: Fits tight spaces (50% smaller than traditional RO systems).
✅ High-Efficiency Performance
- 99.7% Salt Rejection: Advanced TFC membranes ensure consistent water quality (TDS < 50 ppm).
- Energy-Saving Pump: Cuts power consumption by 25% vs. conventional RO plants.
✅ Commercial-Grade Durability
- Corrosion-Resistant Materials: SS316L/PVC construction for longevity in harsh environments.
- FDA & CE Compliance: Safe for food/beverage, healthcare, and pharmaceutical applications.
✅ Smart Automation
- Touchscreen PLC Control: Real-time monitoring of flow, pressure, TDS, and system alerts.
- Remote IoT Access: Manage operations via mobile app or desktop (Wi-Fi/4G enabled).
✅ Low Maintenance
- Self-Cleaning CIP (Clean-in-Place) System: Extends membrane life by 30%.
- Quick-Change Cartridge Filters: No tools required for replacements.
| category | Water production | Product Code | Remark | Product images |
| Conventional box | 800G | SW-800-150E2 | 20PP*20CTO+20PP+ZS600*2+3013-400*2+Leo 2-4+Liquid level sensor+150SS304 (3 pressure sensors, 2 water quality sensors, 1 liquid level sensor) | Picture9 |
| ZW-800-150E2 | ||||
| 1600G | SW-1600-200E2 | 20PP*20CTO+20PP+2-8+4040+Leo 2-4+Liquid level sensor+200SS304 (3 pressure sensors, 2 water quality sensors, 1 liquid level sensor) | Picture9 | |
| ZW-1600-200E2 | ||||
| 3200G | SW-3200-200E2 | 20PP*20CTO+20PP+2-8+4040*2+Leo 2-4+Liquid level sensor+200SS304 (3 pressure sensors, 2 water quality sensors, 1 liquid level sensor) | Picture9 | |
| New business machine | 800G | SW-A233-200HE2 | 20PP*20CTO+20PP+X400*2+3013*2 | Picture9 |
| +Leo 2-4+Liquid level sensor+200LSS304 (3 pressure sensors, 2 water quality sensors, 1 liquid level sensor) | ||||
| 2000G | SW-D433-300HE2 | UF*2+CFB*1+3013-600*4+T33*4+300L304+25w ultraviolet light+0.55KW frequency conversion, built-in 300L304 water tank, (3 pressures, 2 flows, 2 water quality tests, 1 liquid level) | Picture1 | |
| 630*700*1900mm | ||||
| 1600G | SW-A4022-350E2 | 20PP*20CTO+20PP+2-13+4021*2+Nanfang 1-4+Liquid level sensor+200SS304 (3 pressure sensors, 2 water quality sensors, 1 liquid level sensor) | Picture1 | |
| Water Collection | 0.5T/H | ZW-4042-300HE2 | 20PP*20CTO+20PP+2-8+4040*2+Leo 2-4+Liquid level sensor+300SS304 (3 pressure sensors, 2 water quality sensors, 1 liquid level sensor) | Picture2 (With water intake) |
| E Series | 0.5T/H | SW-4042-E2 | Raw water pump + quartz sand tank + activated carbon tank + 3 core 20 inches + 4040*2, network, 10.2 touch screen, 900*670*1735mm (3 pressures, 2 flows, 2 water quality tests, 1 level) |
Picture2 |
| 1T/H | SW-4044-E2 | Raw water pump + quartz sand tank + activated carbon tank + antiscalant + 5 core 20 inches + 4040*4, Network, 10.2 touch screen, 900*670*1735mm (3 pressures, 2 flows, 2 water quality tests, 1 level) |
Picture2 | |
| Water supply | Water supply | GX-500 | 304 water tank + 25W UV + frequency conversion | Picture3 |
| GX-800 | 550W,900*670*1735mm, 900*670*1735mm | |||
| L Series | 0.5T/H | SW-4042-LE2 | Raw water pump + quartz sand tank + activated carbon tank + scale inhibitor + 3 core 20 inches + 4040*2 Network, 10.2 touch screen, 1550*700*1750mm (3 pressures, 2 flows, 2 water quality tests, 1 level) |
Front: Picture 4 Inside: Picture 5 |
| 1T/H | SW-4044-LE2 | Raw water pump + quartz sand tank + activated carbon tank + antiscalant + 5 core 20 inches + 4040*4 Network, 10.2 touch screen, 1550*700*1750mm (3 pressure, 2 flow, 2 water quality tests) |
Front: Picture 4 Inside: Picture 6 |
|
| 2T/H | SW-4048-LE2 | 4-5 raw water pump + quartz sand tank 400 + activated carbon tank + antiscalant + 5 core 40 inches + 4040*8, Network, 10.2 touch screen, 1550*700*1750mm (4 pressure, 2 flow, 2 water quality detection) |
Front: Picture 4 Inside: Picture 7 |
|
| 3T/H | SW-4012-LE2 | 1.Raw water pump + 500 quartz sand tank + activated carbon tank + scale inhibitor + 5 core 40 inches + 4040*12 2.Network, 10.2 touch screen 3.1550*700*1750mm (4 pressures, 2 flows, 2 water quality tests) 4.The built-in water tank is standardly equipped with 304 stainless steel 1.2mm. 5.Pretreatment is ultrafiltration membrane 6.Plus and Play Pre-engineered Design |
Front: Picture 4 Inside: Picture 8 |
|
| 1. The built-in water tank is standardly 304 stainless steel 1.2mm. | ||||
| 2. ZW: with water inlet. | ||||
| 3. A: Pretreatment is 20 blue bottles. | ||||
| D: Pretreatment is ultrafiltration membrane. |
