High Chemical Resistance DOW UF Membranes Modules SFP 2860XP / SFD 2860XP For Seawater
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP 2860XP and SFD 2860XP |
| Document: | SFP-2860XP, SFD-2860XP, SFP...XP.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Weight (empty/ Water Filled): | 48kg/106kg | Membrane Area Of This Model: | 51 M² |
|---|---|---|---|
| Flow Range Of This Model: | 2.0 – 8.5 M³/hr | Volume Of This Model: | 35liters |
| Installation Of This Model: | Wall-mounted | Particle Size (max.): | 300 µm |
| Operating PH: | 2-11 | Particle Size Of This Model: | 300 µm |
| Flow Configuration Of This Model: | Outside In, Dead End Flow | Filtrate Flux Of This Model: | 40-110 L/m2/ Hr |
| Application Of The Model: | Wastewater Treatment,Seawater | Feature: | High Chemical Resistance |
| Highlight: | SFP 2860XP DOW UF Membranes Modules,Seawater DOW UF Membranes Modules |
||
Product Description

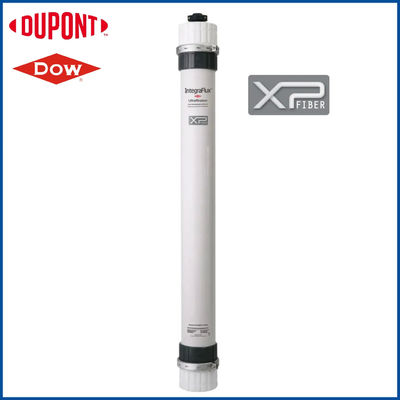

High Chemical Resistance DOW UF Membranes Modules SFP 2860XP / SFD 2860XP For Seawater
IntegraFlux™ SFD-2860XP Ultrafiltration Modules with their shorter,60-inch length are suitable for applications with constraints in headspace. Containing XP fiber, with up to 35% higher permeability than previous generation modules, these modules improve operating efficiencies and productivity. IntegraFlux SFD-2860XP Modules are made from high-strength, PVDF hollow fiber membranes engineered to reduce design and fabrication requirements. The fibers have a 0.03-µm pore size for removal of bacteria, viruses, and particulates. IntegraFlux SFD-2860XP Modules have been tested and certified by NSF International under NSF/ANSI Standard 61 and under Standard 419 for Public Drinking Water Equipment (PDWE) for safe use in drinking water applications.
Product Specifications

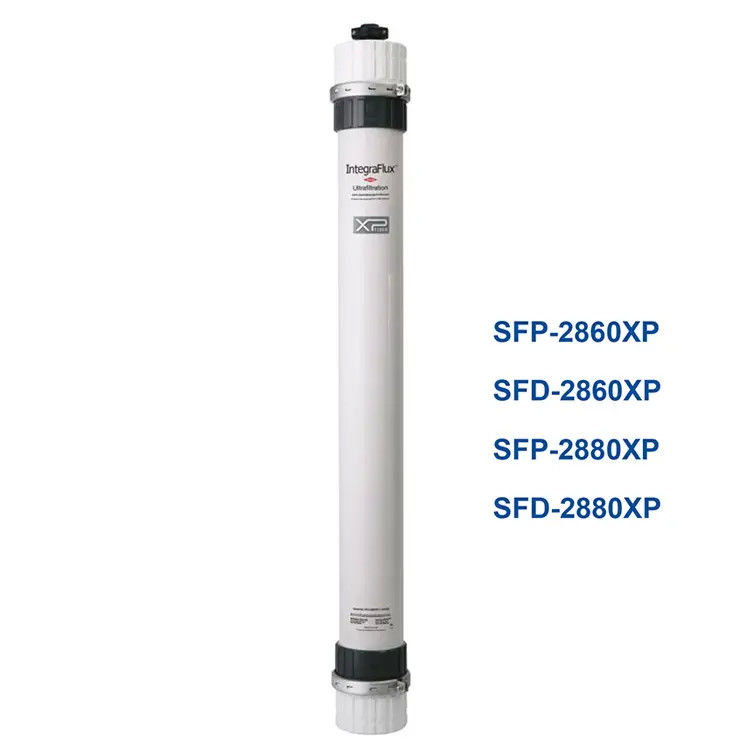

Figure 1: SFP and SFD 2860XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
