Long Service Life DOW UF Membranes Modules SFP 2860XP / SFD 2860XP For Wastewater Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP 2860XP and SFD 2860XP |
| Document: | SFP-2860XP, SFD-2860XP, SFP...XP.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Weight (empty/ Water Filled): | 48kg/106kg | Membrane Area: | 51 M² |
|---|---|---|---|
| Flow Range: | 2.0 – 8.5 M³/hr | Volume: | 35liters |
| Installation: | Wall-mounted | Particle Size (max.): | 300 µm |
| Operating PH: | 2-11 | Particle Size: | 300 µm |
| Flow Configuration: | Outside In, Dead End Flow | Filtrate Flux: | 40-110 L/m2/ Hr |
| Application Of The Product: | Wastewater Treatment | Feature: | Long Service Life |
| Highlight: | Wastewater Treatment DOW UF Membranes Modules,SFP 2860XP DOW UF Membranes Modules,DOW UF Membranes Modules SFP 2860XP |
||
Product Description
Long Service Life DOW UF Membranes Modules SFP 2860XP / SFD 2860XP For Wastewater treatment
High water permeability and efficient operation: XP membrane fiber technology enables Dow's new generation IntegraFlux ultrafiltration membrane to have up to 70% improvement in system operation and water production efficiency. Compared with the previous generation products, the water permeability has increased by 35%, greatly improving the operation efficiency and output. In addition, the IntegraFlux membrane module using XP membrane fiber technology can achieve up to 40% reduction in transmembrane pressure difference (TMP) and 15% reduction in energy consumption.
High mechanical strength and chemical resistance: PVDF polymer hollow fiber membrane has high mechanical strength and chemical resistance, which ensures the long service life and reliable and stable operation performance of the membrane module.
Low energy consumption and low drug consumption: XP membrane fiber technology reduces the cleaning frequency and the consumption of chemical agents, further saving operating costs. In addition, the external pressure structure reduces the water consumption in the pretreatment process and backwashing, further reducing energy consumption.
Wide range of applications: Dow Ultrafiltration Membrane XP Series is suitable for a variety of water treatment applications, including industrial water, municipal water, seawater desalination, wastewater recycling, etc. Its excellent performance makes it an ideal choice for the treatment of industrial wastewater, municipal wastewater, surface water and seawater.
Product Specifications

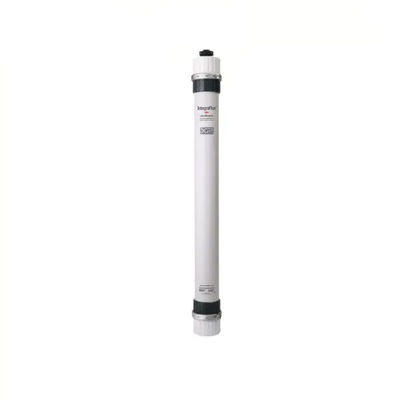

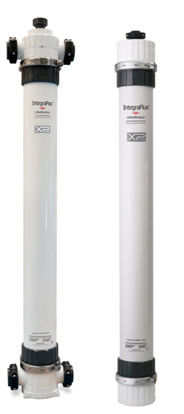

Figure 1: SFP and SFD 2860XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
