51m² 8 Inch Diameter DOW UF Membranes Modules SFP 2860XP / SFD 2860XP
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP 2860XP and SFD 2860XP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Diameter: | 8 Inch | Membrane Area: | 51m² |
|---|---|---|---|
| Membrane Material: | PVDF | Flow Range Per Module: | 2.0 – 8.5 M³/hr |
| Nominal Pore Diameter: | 0.03 µm | Volume: | 35liters |
| Installation: | Wall-mounted | Condition: | 100% Original |
| Rejection Rate: | 99.9% | Operating Pressure: | 1-5 Bar |
| Filtration Capacity: | Up To 100,000 Liters Per Day | Operating PH: | 2-11 |
| Certifications: | ISO 9001, NSF, CE | ||
| Highlight: | DOW Ultrafiltration Membranes,Ultrafiltration Membrane System,Ultrafiltration Membranes For Water Treatment |
||
Product Description
51m² 8 Inch Diameter DOW UF Membranes Modules SFP 2860XP / SFD 2860XP
IntegraFlux™ Ultrafiltration (UF) modules with XP fiber are made from high permeability, high mechanical strength, hollow fiber PVDF membranes. The modules provide excellent performance, industry leading membrane area with low energy and chemical consumption. IntegraFlux™ modules have the following general properties and characteristics: l
- Up to 35% higher permeability than previous generation modules helping to improve operating efficiencies and productivity l
- 0.03 µm nominal pore diameter for removal of bacteria, viruses, and particulates including colloids to protect downstream processes such as RO
- PVDF polymeric hollow fibers for high mechanical strength with excellent chemical resistance providing long membrane life and reliable operation
- Outside-In flow configuration allowing a wide range of solids in the feed water minimizing the need for pretreatment processes and reducing the backwash volume compared to Inside-Out configurations
Product Specifications

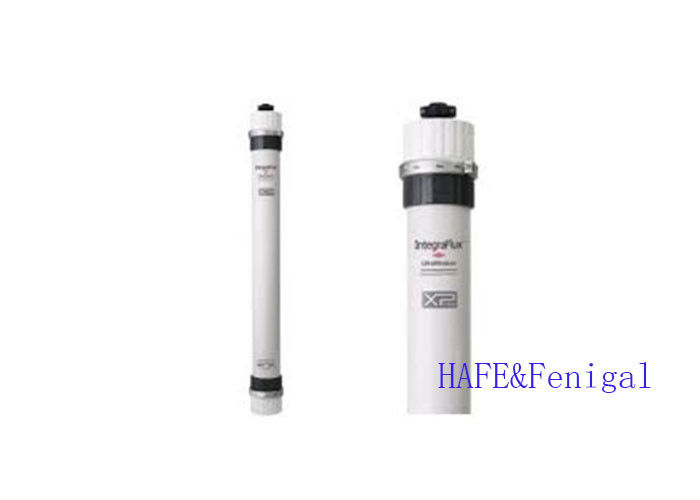

Figure 1: SFP and SFD 2860XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
