Brackish Tap Water LC LE 4040 Membrane 4"X40" 2500GPD
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE/NSF etc. |
| Model Number: | LCLE etc. |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 bag |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export PP Bag |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000 bags per month |
|
Detail Information |
|||
| Maximum Applied Pressure: | 600 Psig (4.16 MPa) | Maximum Operating Temperature: | 113°F (45°C) |
|---|---|---|---|
| Maximum Feedwater Turbidity: | 1.0 NTU | Maximum Feedwater SDI: | 5.0 |
| Maximum Feed Flow: | 16 GPM (3.6 M³/h) | Maximum Pressure Drop: | 10 Psi |
| Highlight: | 4"X40" lc le 4040 membrane,2500GPD lc le 4040 membrane,4040 brackish ro membrane |
||
Product Description
DOW's filmtec brackish/tap water LC LE-4040 RO membrane 4"x40" | 2,500 GPD
DOW FILMTEC LC LE-4040 Membrane Elements deliver high quality water at low pressure at harsh water conditions, using Dow’s innovative, proprietary technology for low energy commercial applications. Dow’s fully automated element production enables the most consistent products in the industry that minimizes the total cost of ownership of water treatment systems.
SPECIFICATIONS
| Product | Part Number Dry (Wet) | Feed Spacer Thickness (mil) | Permeate Flow Rate gpd (m3/d) | Min. Salt Rejection (%) | Stabilized Salt Rejection (%) |
|---|---|---|---|---|---|
| LC LE-4040 | NA | 28 | 2500 (9.5) | 99 | 99.2 |
| Product | Part Number | Feed Spacer Thickness (mil) | Permeate Flow Rate gpd (m3/d) | Stabilized Salt Rejection (%) |
|---|---|---|---|---|
| BW30-4040 | NA | 34 | 2,400 (9.1) | 99.5 |
Many more specifications are available at request.

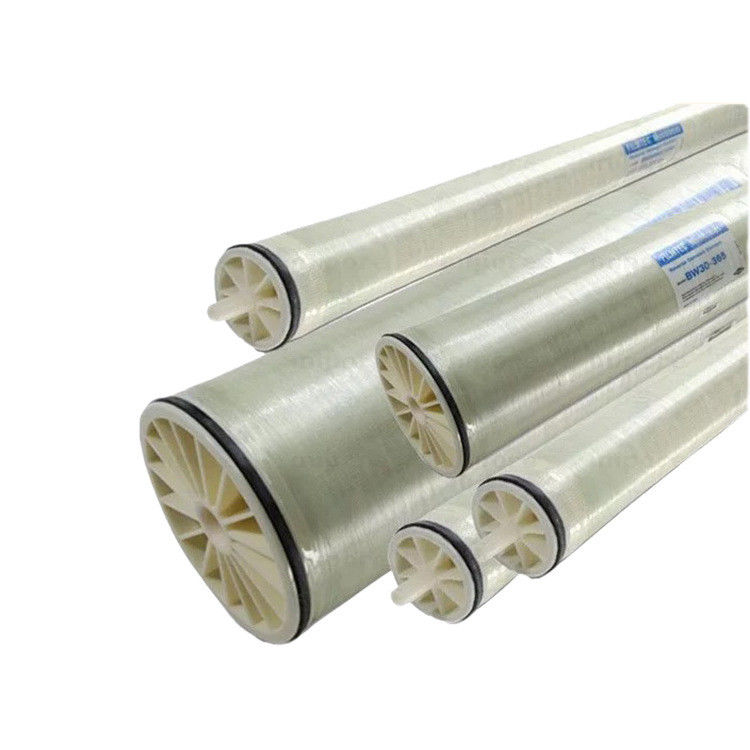

DOW FILMTEC Brackish Water Reverse Osmosis Elements can separate salts from water and are produced with an automated fabrication process for precision, consistency, and reliability. DOW FILMTEC RO membranes build on a tradition of leadership in the thin-film composite membrane industry and meet the challenges of higher rejection in lower-pressure operations.
FilmTec™ Brackish Water Reverse Osmosis 4" Elements can separate salts from water and are produced with an automated fabrication process that ensures precision, consistency, and reliability. They are ideal for use in medium-sized water treatment system that produce less than approximately 10 gpm (2300 L/h) of permeate. Our RO membranes build on a tradition of leadership in the thin-film composite membrane industry and meet the challenges of higher rejection in lower-pressure operations.
Specifications
| Model/SKU: | DWC22 |
| Manufacturer ID(Part#): | LC LE-4040 (Part #275173 ) |
| Dimensions(Diameter x Length): | 4" x 40" (actual 3.9" x 40") |
| Stabilized Salt Rejection: | 99.0% |
| Permeate Flow Rate(Gallons per Day, gpd): | 2,500 gpd(9,500 L/Day or 9.5 m3/day) * |
| Maximum Feed Flow Rate(Gallons per Minute, gpm): | 16.0 gpm (3.6 m3/h) |
| Applied Pressure(psi): | 150 psi (10.3 bar) |
| Maximum Operating Pressure(psi): | 600 psi (41 bar) |
| Maximum Pressure Drop(psi): | 15 psi (0.9 bar) |
| Maximum Operating Temperature(°F): | 113°F (45°C) |
| pH Range, Continuous Operation: | 2 - 11 ** |
| pH Range, Short-Term Cleaning: | 1 - 13 |
| Maximum Feed Silt Density Index(SDI): | SDI 5 |
| Free Chlorine Tolerance(ppm): | < 0.1 ppm *** |
| Membrane Style: | Drop-in Element |
| Membrane Material: | Polyamide Thin-Film Composite |
| Active Area: | 94 sq. ft. |
| Outer Wrap: | Hard fiberglass outer shell |
| Housing/Pressure Vessel Size(inch): | 4 inch |
