Product Details:

Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: DHP 1.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information
Product Model: DHP 1.0 Geometric Displacement: 6.06 Cm³/rev
Rated Flow At Rated Speed (3000 Rpm): 0.92 M³/h (equivalent To 15.3 L/min In Minute Flow Rate) Minimum Outlet Pressure: 10 Bar
Maximum Continuous Outlet Pressure: 80 Bar (For Higher Or Lower Pressure Requirements, Please Contact FENIGAL Sales Representative)
Highlight:

DHP 1.0 axial piston pump

,

ultra-compact water treatment consumables

,

small-scale desalination pump

Product Description

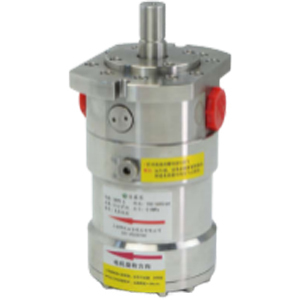

The DHP 1.0 axial piston pump, a ultra-compact water treatment consumable from WUXI FENIGAL, is tailored for small/medium industrial reverse osmosis systems—ideal for small island seawater desalination and workshop-level industrial wastewater desalination. It solves "efficient transportation + low pollution" needs of small systems, becoming a reliable fluid transfer solution for miniaturized desalination projects.


Operating on the axial piston principle, its plungers (parallel to the drive shaft) reciprocate in bores to adjust pump cavity volume, enabling high-pressure transfer of low-viscosity corrosive media (seawater, industrial saline wastewater). It uses the transported fluid as lubricant, eliminating oil tanks and oil leakage to meet strict cleanliness demands. Weighing only 3.7 kg with an integrated flushing check valve, it simplifies RO membrane piping, reducing installation space and costs.

Core Advantages for Water Treatment

  • Corrosion Resistance & High Stability: Key components use 2205 duplex stainless steel for high-salinity resistance; 80 Bar continuous working pressure meets RO system high-pressure needs.
  • Flexible Flow & Ultra-Low Noise: Fixed-displacement design—flow is proportional to speed (0.92 m³/h at 3000 rpm, adjustable for different systems). ≤74 dB(A) noise (per EN ISO 3744-2010), fitting quiet workspaces.

Core Technical Parameters of DHP 1.0

Parameter Category Specific Value
Product Model DHP 1.0
Geometric Displacement 6.06 cm³/rev
Rated Flow (3000 rpm) 0.92 m³/h (15.3 L/min)
Minimum Outlet Pressure 10 Bar
Maximum Continuous Outlet Pressure 80 Bar (Contact FENIGAL sales for other requirements)
Minimum/Maximum Inlet Pressure 1 Bar / 5 Bar
Continuous Operating Speed Range 700～3450 rpm
Operating Noise (EN ISO 3744-2010) ≤74 dB(A) (measured on full unit at max pressure/speed)
Power (3000 rpm & 80 Bar) 3.0 kW
Medium Temperature 2～50 ℃ (NaCl concentration-dependent)
Ambient Temperature 0～50 ℃
Overall Weight 3.7 kg
Integrated Component Flushing Check Valve
Core Application Small/medium seawater desalination, industrial wastewater desalination, resource recovery

Power Parameters (3000 rpm Rated Speed)

Pump Model Rated Flow (L/min) Rated Flow (m³/h) Power at 60 Bar Power at 70 Bar Power at 80 Bar Rated Speed (rpm)
DHP 1.0 15.3 0.92 2.2 kW 2.2 kW 3.0 kW 3000

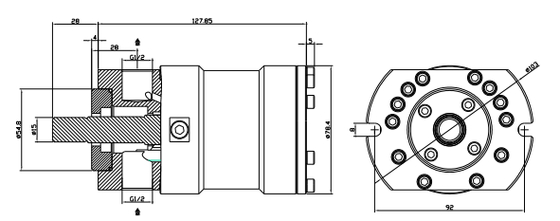

Inlet & Outlet Dimensions

Piston Pump Model Inlet Size Outlet Size
DHP 1.0 G1/2〞, 13 mm Depth G1/2〞, 13 mm Depth

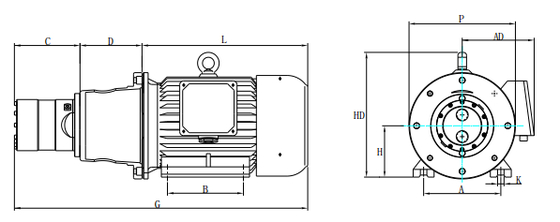

Overall Dimensions (mm, with Motor)

Piston Pump A B H K P AD HD C D L G IEC Motor
DHP 1.0 140 125 90 10 200 165 255 133 100 365 598 2.2 kW - 2P
DHP 1.0 160 140 100 12 250 175 275 133 120 405 658 3.0 kW - 2P

Installation & Operation Tips

  1. Interface Connection: "I" = inlet, "O" = outlet (both G1/2〞, 13 mm). Strictly avoid reverse connection to prevent plunger/check valve damage.
  2. Filtration Requirement: Install 10 μm absolute filter (≥99.98% efficiency, β10>5000) at inlet—prohibit 90% efficiency filters to avoid plunger wear.
  3. Pressure Protection: Inlet low-pressure switch (1 Bar) prevents dry running (idling >10 mins ruins plungers); outlet high-pressure switch (70 Bar) + safety valve (5-9 MPa) protects RO membranes/pipelines.
  4. Start-Up/Shutdown: Flush with fresh water after shutdown (add bactericide if >15 days shutdown). Never start with rear valve closed.

Maintenance & Warranty

  • Daily Maintenance: Check filter pressure difference (replace element if >0.5 Bar) to keep inlet fluid clean.
  • Regular Inspection: Full inspection every 8000 hours (check shaft seal leakage, plunger wear—replace parts if flow drops >10%).
  • Warranty: 1-year free maintenance (delivery date); 8000-hour maintenance-free warranty (if operated as required, max 18 months).

Manufacturer Information

  • Company: WUXI FENIGAL SCIENCE AND TECHNOLOGY CO., LTD. (FG Water Technologies)
  • Address: Chuangyi Industrial Park, No. 100 Dicui Road, Binhu District, Wuxi City, Jiangsu Province, China
  • Tel: +86-510-85163211
  • Mobile: +86-13646187144
  • Email: sales@fgwater.com
