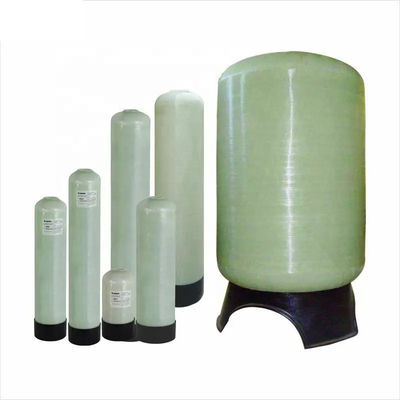

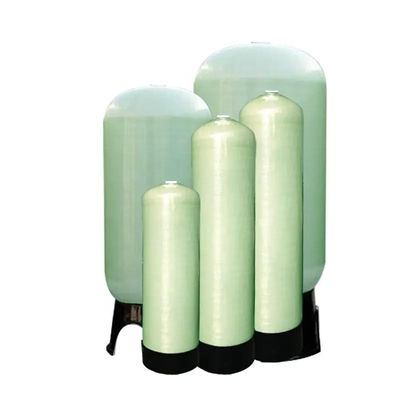

Vessel FRP Composite Tank Made Of Reinforced Fibers And High Performance Resins
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE/UL/NSF |
| Model Number: | Various models available |
| Document: | FRP-tanks-print.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 5-8 working days after payment received |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 set per month |
|
Detail Information |
|||
| The Size(inch): | 08x44 | The Diam&Height(mm): | φ200×1100 |
|---|---|---|---|
| The Opening(inch): | Top Opening 2.5"Thread | The Design Flow Rate(T/H): | 0.2～0.5 |
| The Original: | China | Advantages: | Easy Transportation And Installation |
| Material: | Reinforced Fibers And High-performance Resins，FRP | Main Usage: | Water Treatment |
| Highlight: | Vessel FRP Composite Tank,Reinforced Fibers FRP Composite Tank,High performance Resin FRP Composite Tank |
||
Product Description
采用增强纤维和高性能树脂制成的玻璃钢复合材料储罐
FRP Composite Tanks for Water Processing: These specialized vessels are integral components in diverse water treatment applications. Fabricated as single-piece, corrosion-inhibiting pressure containers, their construction begins with a core liner composed of polyethylene (PE) or fiberglass-reinforced plastic (FRP). Advanced helical fiber deposition (specifically, four-dimensional winding) bonds reinforced fibers and high-performance resin onto this liner, creating a unified, robust structure capable of fulfilling the demanding specifications of purification systems.
The standard tank design comprises a vertical chamber (tank body), capped by upper and lower ingress/egress openings, an auxiliary discharge outlet, and a stabilizing foundation. Connection interfaces at these openings and the discharge port predominantly utilize high-tensile-strength threaded unions or standardized flanges to ensure sealed integrity. Foundation stability is achieved through bases crafted from either reinforced FRP composites or Grade 2 polypropylene (PP) resins.
Functionally, FRP water tanks process a spectrum of aqueous media: from filtered municipal water (clean), demineralized ultrapure supplies, ion-exchange softened water, to pretreated wastewater effluents. Deployment is ubiquitous, serving industrial-scale operations—chemical plants, agricultural facilities, pharmaceutical labs, food manufacturing lines, and breweries—alongside smaller-scale commercial installations and residential point-of-use systems. Optimal performance is assured by selecting from available configurations and volumetric capacities specifically engineered to satisfy defined hydraulic and purity parameters within the treatment circuit.
Water Treatment Composite Tank Specification and Model
