Product Details:

Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: PRO-SD8080/20

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information
Equipment Material: Stainless Steel 304 Tank, UPVC Pipe Capacity: Varies Depending On Model
Capacity Of Water: 2TPH Voltage: 3.0kW-380-415V,50HZ
Installed Power: 1.7kW-220-240V, 50Hz System Components: Pretreatment, RO Unit, Post-treatment
Product Core Material: Stainless Steel 304 Tank, UPVC Pipe Power Supply: Electricity
Control: Electronic,Manual/PLC Romembrane Optional: Filmtec/Hydranautics
Product Main Process: SF-ACF-IXF-RO Ro Membrane: Vontron, Hydranautics Or DOW, 4040/8040
Product Weight: 450KG Type: Reverse Osmosis System
Membrane Configuration: Spiral Wound
Highlight:

2TPH Brackish Water Reverse Osmosis

,

3.0kW Brackish Water Reverse Osmosis

,

Brackish Water Reverse Osmosis Plant

Product Description

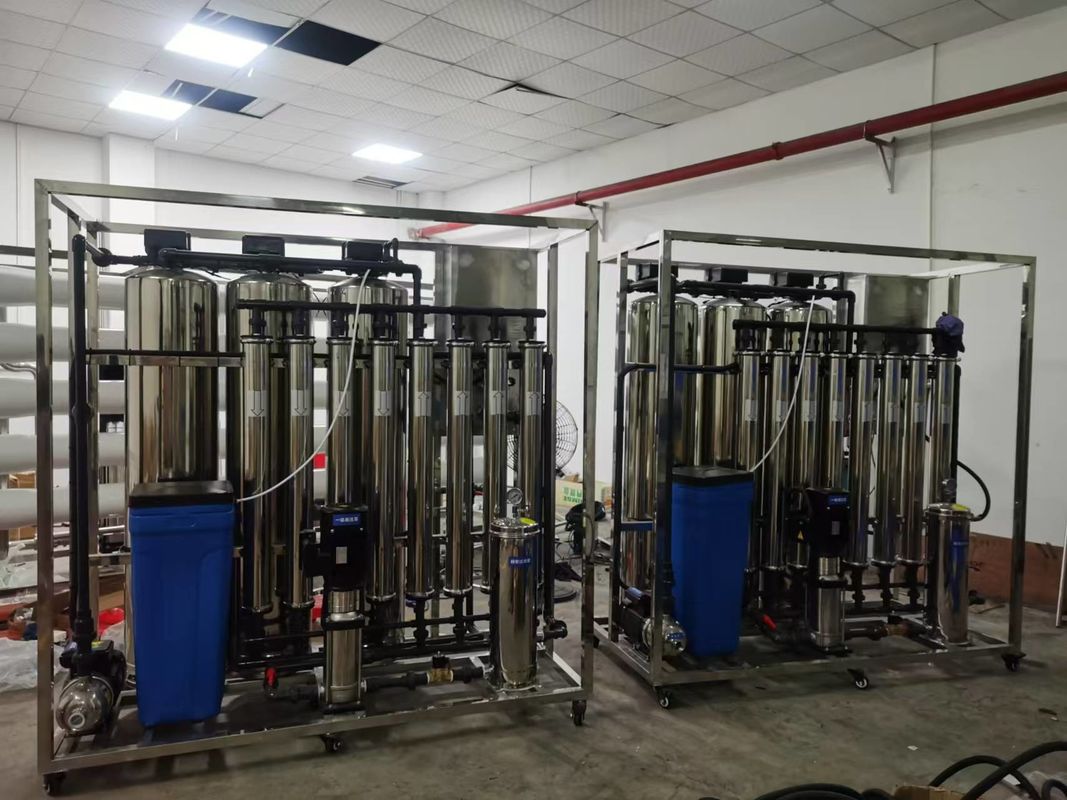

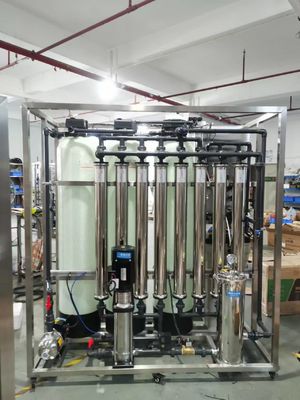

PRO-SD8080/20: High-Efficiency Solution for Brackish Water Reverse Osmosis

1. Introduction to PRO-SD8080/20

The PRO-SD8080/20 is a state-of-the-art brackish water reverse osmosis (RO) plant designed to meet the demanding water purification needs of industrial applications. With a permeate output of 2TPH (12,800 GPD), this system efficiently converts brackish water with TDS levels below 2,000ppm into high-purity water, making it an ideal choice for manufacturing, energy, and commercial sectors. Its SS304 skid-mounted design ensures corrosion resistance, durability, and rapid installation, optimizing space utilization in industrial settings.

2. Technical Specifications and Core Features

The PRO-SD8080/20 combines robust engineering with premium components, delivering reliable performance and efficiency:


  • Output Capacity: 2TPH (12,800 GPD) of purified water, suitable for large-scale industrial operations.
  • Membrane Configuration: Single-pass 8"x2 RO membranes (optional Filmtec or Hyranautics), renowned for their high salt rejection rate (≥99%) and extended lifespan.
  • Power & Voltage: 3.0kW installed power, compatible with 380–415V/50Hz systems, with customizable voltage options available for global applications.
  • Feed Water Requirement: Processes brackish water with TDS <2,000ppm, adapting to diverse water sources.
  • Skid-Mount Design: Constructed with SS304 stainless steel, the skid-mounted frame enables easy transportation, quick setup, and resilience against harsh industrial environments.

3. Advanced Treatment Process

The PRO-SD8080/20 employs a streamlined three-stage filtration process to ensure optimal water quality:


  1. SF (Sand Filter): Removes suspended solids and sediments up to 5 microns, protecting downstream components from damage.
  2. ACF (Activated Carbon Filter): Adsorbs organic compounds, chlorine, and odors, preventing membrane fouling and ensuring odor-free permeate.
  3. RO (Reverse Osmosis): The core stage, where thin-film composite membranes eliminate dissolved salts, bacteria, and impurities, producing high-purity water with TDS as low as 10ppm (depending on feed water quality).


  • Pretreatment System: Two SS304 tanks enhance sediment and contaminant removal, extending the lifespan of RO membranes.
  • Instrumentation: Equipped with uPVC water pipes, flow meters, pressure gauges, LP/HP switches, and operational status indicators for real-time monitoring.
  • Control Unit: An IC-based control system with a TDS indicator enables precise operation and quality management.

4. Benefits for Industrial Users

  • Cost-Effective Operation: With a 3.0kW power consumption, the system minimizes energy costs, while the skid-mounted design reduces installation and maintenance expenses.
  • Reliability and Durability: SS304 construction and premium RO membranes ensure consistent performance in challenging conditions, with a service life of 3–5 years (with regular maintenance).
  • Flexibility: Adaptable to various voltage requirements and feed water conditions, the PRO-SD8080/20 caters to diverse industrial needs, from electronics manufacturing to boiler feed water treatment.
  • Fast Deployment: Backed by expert technical support, the system offers rapid lead times, addressing urgent water treatment demands promptly.

5. Applications and Compliance

The PRO-SD8080/20 is suitable for:


  • Industrial process water in electronics, pharmaceuticals, and food and beverage manufacturing
  • Boiler feed water and cooling tower make-up in energy facilities
  • Potable water production in commercial buildings and resorts
  • Water reuse systems in wastewater treatment plants


It complies with international standards for industrial water quality, ensuring that permeate meets strict process requirements.

6. Conclusion

The PRO-SD8080/20 exemplifies excellence in brackish water reverse osmosis technology, offering high-capacity performance, energy efficiency, and robust reliability. Its advanced SF-ACF-RO process, combined with SS304 pretreatment and premium components, makes it a versatile solution for industries seeking sustainable, cost-effective water purification. With fast installation and expert support, the system addresses critical water treatment needs while optimizing long-term operational efficiency.

Technical Specifications Table

Category Details
Model PRO-SD8080/20
Permeate Output 2TPH (12,800 GPD)
Feed Water TDS <2,000ppm
Membrane Type Single-pass 8"x2 RO membranes (Filmtec/Hyranautics optional)
Construction SS304 skid-mount frame, uPVC water pipes, 2x SS304 pretreatment tanks
Power Supply 3.0kW, 380–415V/50Hz (custom voltages available)
Treatment Process SF-ACF-RO (Sand Filter → Activated Carbon Filter → Reverse Osmosis)
Pretreatment Tanks 2x SS304 tanks
Instrumentation Flow meter, pressure gauge, LP/HP switch, operational status indicators
Control System IC control unit with TDS indicator
Lead Time Fast delivery with technical support
Applications Industrial process water, boiler feed, potable water, water reuse
