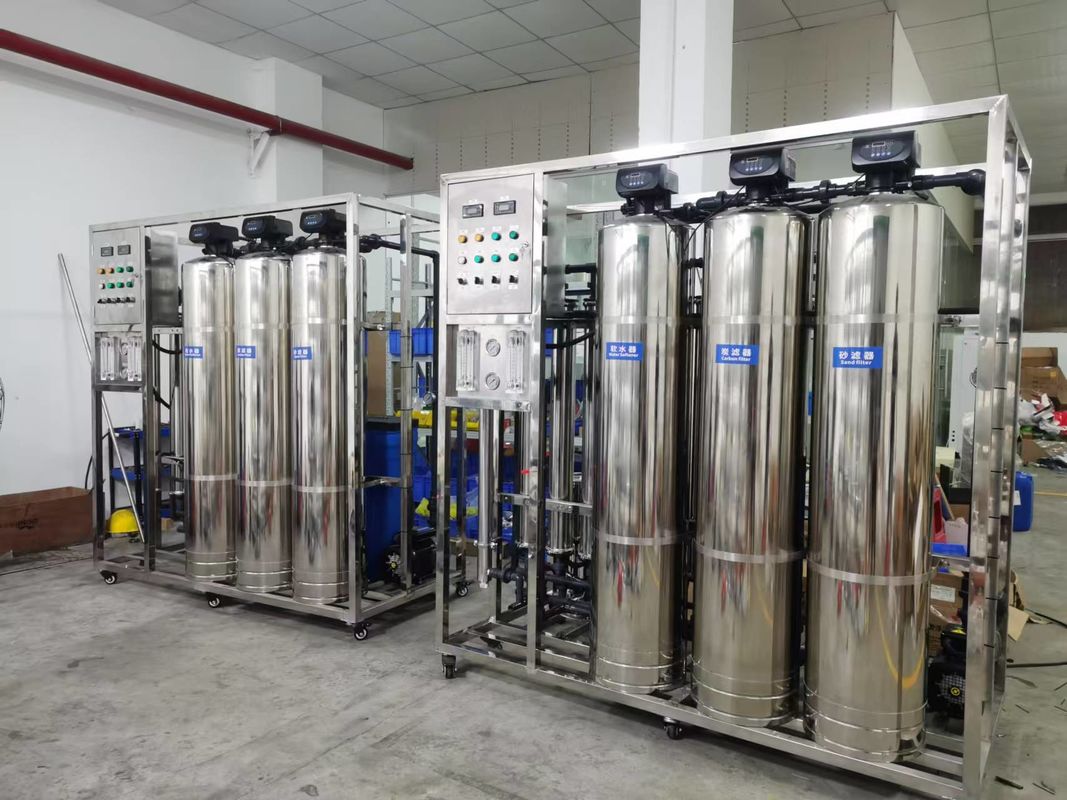

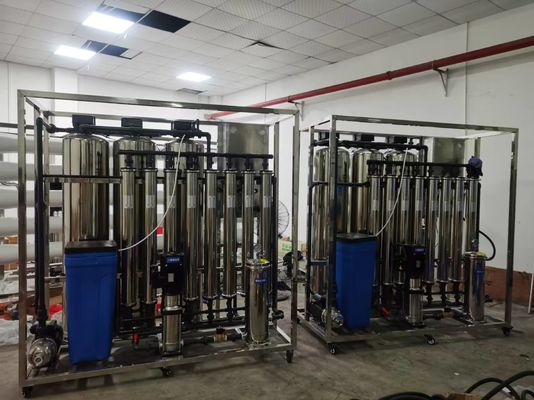

The PRO-FT8080/20 emerges as a cutting-edge brackish water reverse osmosis (RO) plant engineered to meet the rigorous demands of large-scale industrial water purification. With a permeate output of 2TPH (12,800 GPD), this system efficiently converts brackish water with TDS ≤2,000ppm into high-purity water, ideal for manufacturing, energy, and commercial sectors. Its SS304 skid-mounted design ensures corrosion resistance, durability, and seamless installation, while the compact footprint optimizes space in industrial environments.
The PRO-FT8080/20 combines robust engineering with premium components to deliver exceptional performance:
- Output Capacity: 2TPH (12,800 GPD) of purified water, suitable for large-scale industrial operations.
- Membrane Configuration: Single-pass 8"x2 RO membranes (optional Filmtec or Hyranautics), renowned for ≥99% salt rejection and 3–5-year service life.
- Power & Voltage: 3.0kW installed power, compatible with 380–415V/50Hz systems (custom voltages available for global markets).
- Feed Water Requirement: Processes brackish water with TDS <2,000ppm, adapting to diverse water sources.
- Skid-Mount Design: SS304 stainless steel frame for easy transportation, rapid installation, and resistance to harsh industrial conditions.
The PRO-FT8080/20 employs a four-stage filtration sequence to ensure optimal water quality:
- SF (Sand Filter): Removes suspended solids and sediments (≤5 microns), protecting downstream components from damage.
- ACF (Activated Carbon Filter): Adsorbs organic compounds, chlorine, and odors, preventing membrane degradation and ensuring odor-free permeate.
- IXF (Ion Exchange Filter): Reduces hardness-causing ions (calcium, magnesium) and heavy metals, minimizing scaling in the RO system.
- RO (Reverse Osmosis): The core stage, where thin-film composite membranes remove dissolved salts, bacteria, and impurities, producing permeate with ≤10ppm TDS (depending on feed water quality).
- Pretreatment System: Three FRP (fiberglass-reinforced plastic) tanks for enhanced sediment and contaminant removal, ensuring prolonged membrane life.
- Instrumentation: uPVC piping, flow meters, pressure gauges, LP/HP switches, and operational status indicators for real-time monitoring.
- Control Unit: IC-based system with a TDS indicator for precise operation and water quality management.
- Cost Efficiency: 3.0kW power consumption minimizes energy costs, while the skid-mounted design reduces installation and maintenance expenses. FRP tanks offer lightweight durability at a competitive cost.
- Reliability & Performance: SS304 construction and premium RO membranes ensure consistent performance in harsh environments, with minimal downtime for maintenance.
- Flexibility & Customization: Adaptable to different voltage requirements and feed water conditions, the system caters to diverse needs—from process water in electronics manufacturing to boiler feed in power plants.
- Fast Lead Time: Backed by expert technical support, the PRO-FT8080/20 ensures rapid deployment, addressing urgent water treatment demands in time-sensitive industries.
The PRO-FT8080/20 is suitable for:
- Large-scale industrial process water in pharmaceuticals, food and beverage, and chemical manufacturing
- Boiler feed water and cooling tower make-up in energy facilities
- Potable water production in commercial complexes, resorts, and urban infrastructure
- Water reuse systems in municipal wastewater treatment applications
It complies with international standards for industrial water quality, ensuring permeate meets strict process requirements for various applications.
The PRO-FT8080/20 exemplifies excellence in brackish water reverse osmosis technology, combining high-capacity performance, energy efficiency, and robust engineering. Its advanced SF-ACF-IXF-RO process and FRP pretreatment tanks make it a versatile solution for industries seeking reliable, cost-effective water purification at scale. With fast lead times and premium components, the system addresses critical water treatment needs while optimizing operational efficiency for long-term sustainability.
| Category |
Details |
| Model |
PRO-FT8080/20 |
| Permeate Output |
2TPH (12,800 GPD) |
| Feed Water TDS |
<2,000ppm |
| Membrane Type |
Single-pass 8"x2 RO membranes (Filmtec/Hyranautics optional) |
| Construction |
SS304 skid-mount frame, uPVC piping, 3x FRP pretreatment tanks |
| Power Supply |
3.0kW, 380–415V/50Hz (custom voltages available) |
| Treatment Process |
SF-ACF-IXF-RO (Sand → Carbon → Ion Exchange → RO) |
| Pretreatment Tanks |
3x FRP tanks (sand, carbon, ion exchange) |
| Instrumentation |
Flow meters, pressure gauges, LP/HP switches, operational status indicators |
| Control System |
IC-based unit with TDS indicator |
| Lead Time |
Fast delivery supported by expert technical team |
| Applications |
Large-scale industrial process water, boiler feed, potable water, water reuse |
