• PRO-FD8080/20 3TPH Brackish Water Reverse Osmosis Plant SS304 Skid 19kW-380-415V 3.0kW Fast Lead Time
  • PRO-FD8080/20 3TPH Brackish Water Reverse Osmosis Plant SS304 Skid 19kW-380-415V 3.0kW Fast Lead Time

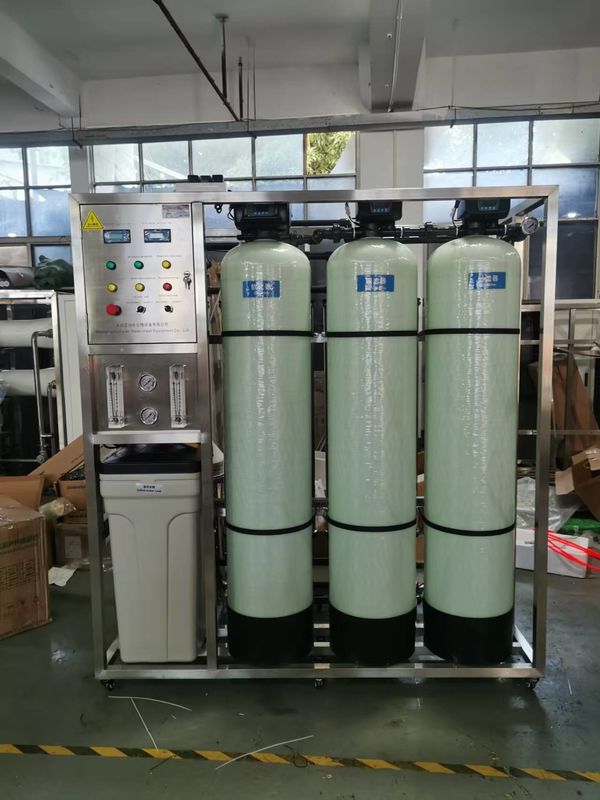

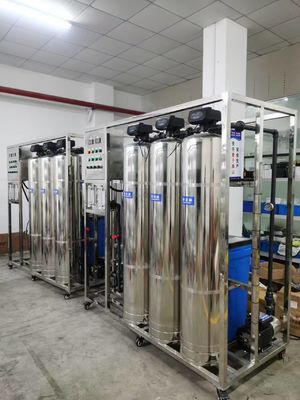

PRO-FD8080/20 3TPH Brackish Water Reverse Osmosis Plant SS304 Skid 19kW-380-415V 3.0kW Fast Lead Time

PRO-FD8080/20 3TPH Brackish Water Reverse Osmosis Plant SS304 Skid 19kW-380-415V 3.0kW Fast Lead Time

Product Details:

Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: PRO-FD8080/20

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information
Core Material: Stainless Steel 304 Tank, UPVC Pipe Power And Voltage: 19kW-380-415V, 50Hz
Components: Pump, RO Membrane,Tanks System Configuration: Skid-mounted Or Containerized
Feed Water Temperature: 5-35 Degrees Celsius Product Series: L Series
Plant Capacity: 3TPH Product Capacity: 1.5TPH
Core Process: SF-ACF-IXF-RO Cleaning System: Chemical Or Physical Cleaning
Main Components: Pump, RO Membrane,Tanks Technology: Reverse Osmosis
Material: SS304/SS316L,carbon Steel Equipment Process: SF-ACF-RO
Weight: 240
Highlight:

3TPH Brackish Water Reverse Osmosis

,

19kW Brackish Water Reverse Osmosis

,

SS304 Skid Brackish Water RO

Product Description

PRO-FD8080/20: High-Capacity Brackish Water Reverse Osmosis Solution for Industrial Applications

1. Introduction to PRO-FD8080/20

The PRO-FD8080/20 emerges as a cutting-edge brackish water reverse osmosis (RO) plant designed for industrial users requiring high-capacity, reliable water purification. With a permeate output of 2TPH (12,800 GPD), this system efficiently converts brackish water with TDS ≤2,000ppm into high-purity water, ideal for large-scale manufacturing, energy production, and commercial sectors. Its SS304 skid-mounted design ensures corrosion resistance, durability, and seamless installation, while the compact footprint optimizes space in industrial environments.

2. Technical Specifications and Core Features

The PRO-FD8080/20 combines robust engineering with premium components to deliver exceptional performance:


  • Output Capacity: 2TPH (12,800 GPD) of purified water, suitable for large-scale industrial operations.
  • Membrane Configuration: Single-pass 8"x2 RO membranes (optional Filmtec or Hyranautics), renowned for ≥99% salt rejection and long-term reliability.
  • Power & Voltage: 3.0kW installed power, compatible with 380–415V/50Hz systems (custom voltages available for global markets).
  • Feed Water Requirement: Processes brackish water with TDS <2,000ppm, adapting to diverse water sources.
  • Skid-Mount Design: SS304 stainless steel frame for easy transportation, rapid installation, and resistance to harsh industrial conditions.

3. Advanced Treatment Process Flow

The PRO-FD8080/20 employs a streamlined three-stage filtration sequence to ensure optimal water quality:


  1. SF (Sand Filter): Removes suspended solids and sediments (≤5 microns), protecting downstream components from damage.
  2. ACF (Activated Carbon Filter): Adsorbs organic compounds, chlorine, and odors, preventing membrane degradation and ensuring odor-free permeate.
  3. RO (Reverse Osmosis): The core stage, where thin-film composite membranes remove dissolved salts, bacteria, and impurities, producing permeate with ≤10ppm TDS (depending on feed water quality).


  • Pretreatment System: Two FRP (fiberglass-reinforced plastic) tanks for efficient sediment and contaminant removal, extending membrane life.
  • Instrumentation: uPVC piping, flow meters, pressure gauges, LP/HP switches, and operational status indicators for real-time monitoring.
  • Control Unit: IC-based system with a TDS indicator for precise operation and water quality management.

4. Key Benefits for Industrial Users

  • Cost Efficiency: 3.0kW power consumption minimizes energy costs, while the skid-mounted design reduces installation and maintenance expenses. The FRP tanks offer lightweight durability at a competitive cost.
  • Reliability & Performance: SS304 construction and premium RO membranes ensure consistent performance in harsh environments, with a service life of 3–5 years (with regular maintenance).
  • Flexibility & Scalability: Adaptable to different voltage requirements and feed water conditions, the system caters to diverse needs—from process water in food manufacturing to boiler feed in power plants.
  • Fast Lead Time: Backed by expert technical support, the PRO-FD8080/20 ensures rapid deployment, addressing urgent water treatment demands in time-sensitive industries.

5. Applications and Compliance

The PRO-FD8080/20 is suitable for:


  • Large-scale industrial process water in electronics, pharmaceuticals, and chemical manufacturing
  • Boiler feed water and cooling tower make-up in energy facilities
  • Potable water production in commercial complexes, resorts, and urban infrastructure
  • Water reuse systems in municipal wastewater treatment applications


It complies with international standards for industrial water quality, ensuring permeate meets strict process requirements for various applications.

6. Conclusion

The PRO-FD8080/20 exemplifies excellence in brackish water reverse osmosis technology, combining high-capacity performance, energy efficiency, and robust engineering. Its SF-ACF-RO process and FRP pretreatment tanks make it a versatile solution for industries seeking reliable, cost-effective water purification at scale. With fast lead times and premium components, the system addresses critical water treatment needs while optimizing operational efficiency for long-term sustainability.

Technical Specifications Table

Category Details
Model PRO-FD8080/20
Permeate Output 2TPH (12,800 GPD)
Feed Water TDS <2,000ppm
Membrane Type Single-pass 8"x2 RO membranes (Filmtec/Hyranautics optional)
Construction SS304 skid-mount frame, uPVC piping, 2x FRP pretreatment tanks
Power Supply 3.0kW, 380–415V/50Hz (custom voltages available)
Treatment Process SF-ACF-RO (Sand Filter → Activated Carbon Filter → Reverse Osmosis)
Pretreatment Tanks 2x FRP tanks (sand and carbon filtration)
Instrumentation Flow meters, pressure gauges, LP/HP switches, operational status indicators
Control System IC-based unit with TDS indicator
Lead Time Fast delivery supported by expert technical team
Applications Large-scale industrial process water, boiler feed, potable water, water reuse

PRO-FD8080/20 3TPH Brackish Water Reverse Osmosis Plant SS304 Skid 19kW-380-415V 3.0kW Fast Lead Time 0
