• PRO-SD8080/15 1.5TPH Brackish Water Reverse Osmosis System SS304 Skid 3.0kW Fast Lead Time
  • PRO-SD8080/15 1.5TPH Brackish Water Reverse Osmosis System SS304 Skid 3.0kW Fast Lead Time

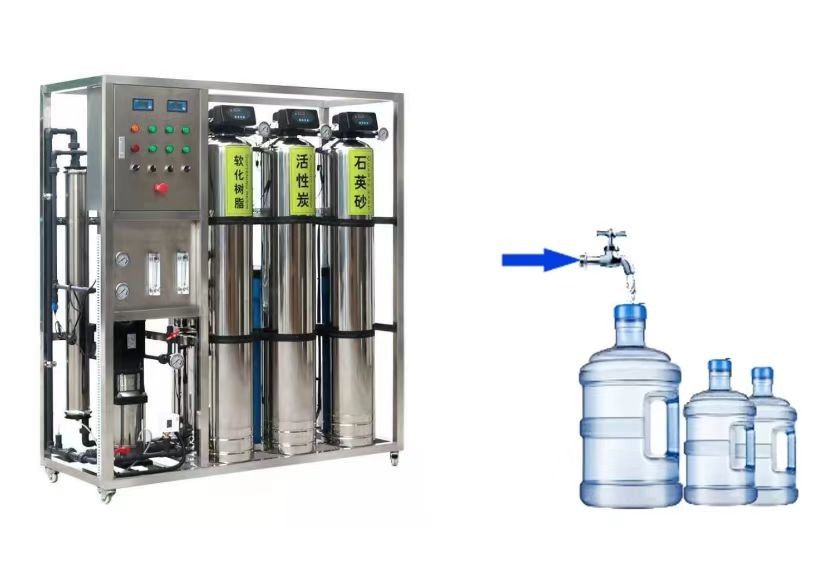

PRO-SD8080/15 1.5TPH Brackish Water Reverse Osmosis System SS304 Skid 3.0kW Fast Lead Time

PRO-SD8080/15 1.5TPH Brackish Water Reverse Osmosis System SS304 Skid 3.0kW Fast Lead Time

Product Details:

Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: PRO-SD8080/15

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information
Production Capacity: 1TPH Product Capacity: 1.5TPH
Water Temp: 5~35˚C Pump: CNP / Grundfos,CNP
Device Capacity: 4TPH Plant Capacity: 3TPH
Water Productivity: 500 L/H Process: Sediment Filters-RO
Plant Installation Power: 1.7kW-380-415V, 50Hz System Capacity: 500-10,000 GPD
Technological Process: SF-ACF-IXF-RO Feed Water Source: Brackish Water
Product Weight: 250KG Capacity Of Water: 2TPH
Plant Permeate: 500 L/H
Highlight:

3.0kW Brackish Water Reverse Osmosis

,

1.5TPH Brackish Water Reverse Osmosis

,

SS304 Skid Brackish Water RO

Product Description

PRO-SD8080/15: High-Efficiency Brackish Water Reverse Osmosis Solution for Industrial Applications

1. Introduction to PRO-SD8080/15

The PRO-SD8080/15 stands as a premium brackish water reverse osmosis (RO) plant engineered to deliver reliable, high-capacity water purification for industrial needs. With a permeate output of 1.5TPH (9,600 GPD), this system efficiently converts brackish water with TDS ≤2,000ppm into high-purity water, ideal for manufacturing, energy, and commercial sectors. Its SS304 skid-mounted design ensures corrosion resistance, durability, and quick installation, while the compact footprint optimizes space in industrial environments.

2. Technical Specifications and Core Features

The PRO-SD8080/15 combines robust engineering with premium components to meet rigorous industrial standards:


  • Output Capacity: 1.5TPH (9,600 GPD) of purified water, suitable for mid-to-large-scale industrial operations.
  • Membrane Configuration: Single-pass 8"x2 RO membranes (optional Filmtec or Hyranautics), renowned for ≥99% salt rejection and long-term performance.
  • Power & Voltage: 3.0kW installed power, compatible with 380–415V/50Hz (custom voltages available for global markets).
  • Feed Water Requirement: Processes brackish water with TDS <2,000ppm, adapting to diverse water sources.
  • Skid-Mount Design: SS304 stainless steel frame for easy transportation, rapid installation, and resistance to harsh industrial conditions.

3. Advanced Treatment Process Flow

The PRO-SD8080/15 employs a streamlined three-stage filtration sequence for optimal water quality:


  1. SF (Sand Filter): Removes suspended solids and sediments (≤5 microns), protecting downstream components from damage.
  2. ACF (Activated Carbon Filter): Adsorbs organic compounds, chlorine, and odors, preventing membrane degradation and ensuring odor-free permeate.
  3. RO (Reverse Osmosis): The core stage, where thin-film composite membranes remove dissolved salts, bacteria, and impurities, producing permeate with ≤10ppm TDS (dependent on feed water quality).


  • Pretreatment System: Two SS304 tanks for efficient sediment and contaminant removal, extending membrane life.
  • Instrumentation: uPVC piping, flow meters, pressure gauges, LP/HP switches, and operational status indicators for real-time monitoring.
  • Control Unit: IC-based system with a TDS indicator for precise operation and water quality management.

4. Key Benefits for Industrial Users

  • Cost Efficiency: 3.0kW power consumption minimizes energy costs, while the SS304 skid-mounted design reduces installation and maintenance expenses.
  • Reliability & Durability: SS304 construction and premium RO membranes ensure consistent performance in harsh environments, with a service life of 3–5 years (with regular maintenance).
  • Flexibility & Customization: Adaptable to different voltage requirements and feed water conditions, suitable for process water in electronics, pharmaceuticals, and food manufacturing.
  • Fast Lead Time: Backed by expert technical support, the system ensures rapid deployment for urgent water treatment needs.

5. Applications and Compliance

The PRO-SD8080/15 is ideal for:


  • Industrial process water in manufacturing plants (e.g., electronics, pharmaceuticals)
  • Boiler feed water and cooling tower make-up in energy facilities
  • Potable water production in commercial buildings and remote sites
  • Water reuse systems in wastewater treatment applications


It complies with international standards for industrial water quality, ensuring permeate meets strict process requirements.

6. Conclusion

The PRO-SD8080/15 exemplifies excellence in brackish water reverse osmosis technology, combining high-capacity performance, energy efficiency, and robust engineering. Its SF-ACF-RO process and SS304 pretreatment tanks make it a versatile solution for industries seeking reliable, cost-effective water purification. With fast lead times and premium components, the system addresses critical water treatment needs while optimizing operational efficiency for long-term sustainability.

Technical Specifications Table

Category Details
Model PRO-SD8080/15
Permeate Output 1.5TPH (9,600 GPD)
Feed Water TDS <2,000ppm
Membrane Type Single-pass 8"x2 RO membranes (Filmtec/Hyranautics optional)
Construction SS304 skid-mount frame, uPVC piping, 2x SS304 pretreatment tanks
Power Supply 3.0kW, 380–415V/50Hz (custom voltages available)
Treatment Process SF-ACF-RO (Sand Filter → Activated Carbon Filter → Reverse Osmosis)
Pretreatment Tanks 2x SS304 tanks (sand and carbon filtration)
Instrumentation Flow meters, pressure gauges, LP/HP switches, operational status indicators
Control System IC-based unit with TDS indicator
Lead Time Fast delivery supported by expert technical team
Applications Industrial process water, boiler feed, potable water, water reuse
