PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS<2000ppm

PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS<2000ppm

Product Details:

Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: PRO-FD40160

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information
Equipment Installed Power: 1.7kW-380-415V, 50Hz Operating Pressure: 150-300 Psi
Total Weight: 680KG Electrical Power: 3.0kW-380-415V,50HZ
Size: Depends,1750*550*1650mm Pretreatment: 2xSS304 Tanks
Equipment Process: SF-ACF-RO Weight: 220
System Material: Stainless Steel 304 Tank, UPVC Pipe Voltage: 3.0kW-380-415V,50HZ
Power Supply Required: 5.5kW-380-415V, 50Hz Water Temp: 5~35˚C
Core Components: Pump, RO Membrane,Tanks Capacity: Varies Depending On Model
Product Origin: China
Highlight:

2.1kW Brackish Water Reverse Osmosis

,

1TPH Brackish Water Reverse Osmosis

Product Description

Brackish Water Reverse Osmosis System PRO-FD40160: Efficient Solution for Clean Water Production

In today’s water-scarce landscape, the PRO-FD40160 Brackish Water Reverse Osmosis (RO) System emerges as a reliable solution for converting high-TDS water into potable or industrial-grade water. Designed to handle feed water with TDS levels up to 2000ppm, this skid-mounted unit combines durability, efficiency, and user-friendly operation, making it ideal for commercial, industrial, and remote water treatment applications.

Key Features & Technical Specifications

  • Output Capacity: 1 TPH (6,400 GPD), suitable for mid-scale water needs.
  • Membrane Configuration: Single-pass 4"x4 membranes (optional Filmtec/Hyranautics), ensuring high rejection rates for salts and impurities.
  • Construction: SS304 skid-mount frame for corrosion resistance and easy installation.
  • Power & Voltage: 2.1kW, 380-415V/50Hz (custom voltages available).
  • Pretreatment System: Dual FRP tanks with SF-ACF (sand filter - activated carbon filter) process, removing suspended solids and organic matter.

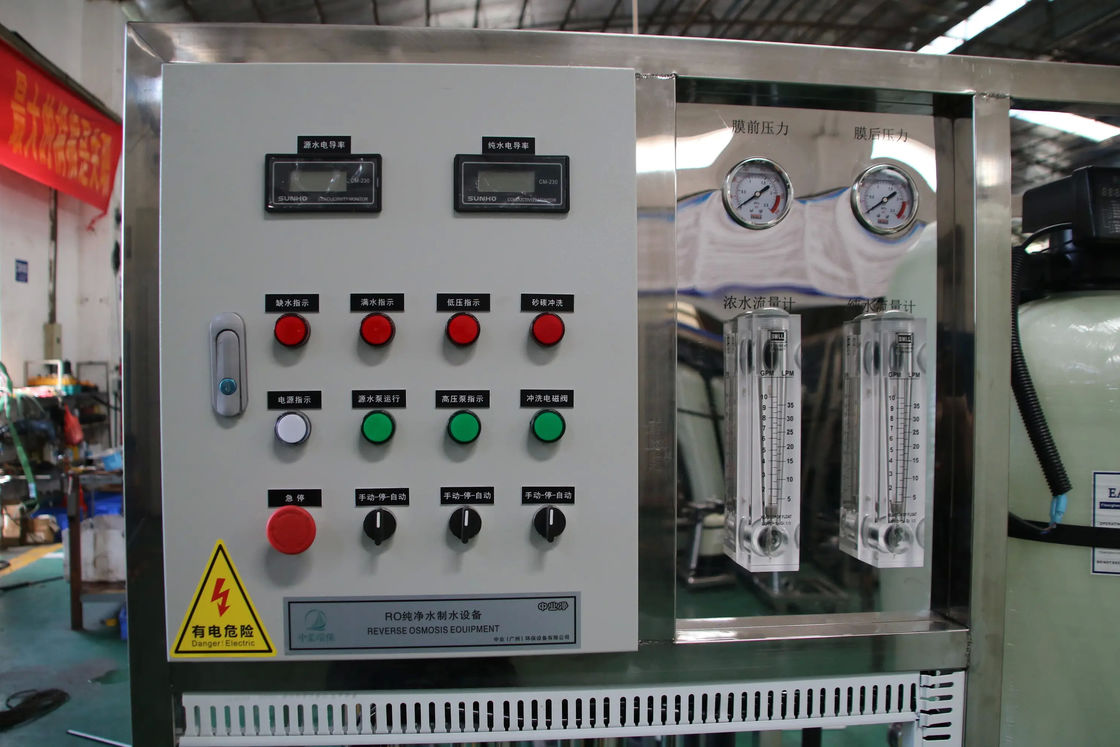

  • Control & Monitoring: IC control unit, TDS indicator, pressure gauges, flow meters, and LP/HP switches for safe, automated operation.
  • Pipework: uPVC water pipes for chemical resistance and long-term durability.

Process Flow & Efficiency

The PRO-FD40160 employs a streamlined SF-ACF-RO process:


  1. Pretreatment: Feed water first passes through sand filters to remove particulates, followed by activated carbon filters to adsorb organic compounds and chlorine, protecting the RO membrane from damage.
  2. Reverse Osmosis: The core stage uses high-pressure pumps to drive water through the RO membrane, rejecting up to 99% of dissolved solids, salts, and contaminants.
  3. Control & Monitoring: Real-time TDS monitoring and pressure switches ensure optimal performance, while operational indicators simplify maintenance.


This design minimizes energy consumption (2.1kW installed power) and maximizes water recovery, making it an eco-friendly choice for brackish water treatment.

Applications & Benefits

  • Industrial Use: Boiler feed water, cooling tower make-up, and process water in manufacturing.
  • Municipal & Community Systems: Small-scale drinking water supply for remote areas or islands.
  • Commercial Settings: Hotels, resorts, and hospitals requiring consistent water quality.
Key Benefits:UYJHMNI]K,
  • Compact skid-mount design reduces installation time and space requirements.
  • High-quality SS304 and uPVC materials ensure longevity and low maintenance.
  • Flexible voltage options and modular components allow customization for global markets.
  • Compliance with feed water TDS<2000ppm makes it suitable for a wide range of brackish water sources.


The PRO-FD40160 Brackish Water Reverse Osmosis System balances performance, durability, and energy efficiency, addressing critical water treatment needs in various sectors. Its robust design and advanced controls make it a smart investment for organizations seeking reliable, high-quality water production. For inquiries or customizations, contact our team to explore how this system can meet your specific requirements.

PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS<2000ppm 0
