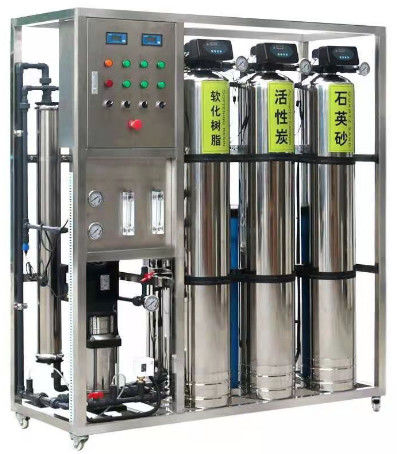

1TPH Saltwater Reverse Osmosis System With Durable SS304 Skid Mount

High-Efficiency Brackish Water Reverse Osmosis System – 1TPH with SS304 Skid-Mount Design

The PRO-FT40160 Brackish Water Reverse Osmosis system is a robust and efficient solution designed for treating brackish water, providing up to 1 ton per hour (1TPH) or 6,400 gallons per day (GPD) of purified water. Suitable for industrial and commercial applications, this system uses advanced single-pass RO membranes with a 4"x4 configuration to deliver high-quality permeate from feed water with a Total Dissolved Solids (TDS) level of less than 2000 ppm.

Built with a SS304 stainless steel skid-mount, the system ensures excellent corrosion resistance and durability, even in challenging operating conditions. With the added advantage of an automated IC control unit and customizable Filmtec/Hydranautics RO membranes, the PRO-FT40160 is engineered to meet diverse industrial needs, such as food and beverage production, pharmaceutical manufacturing, and agricultural irrigation. This system is designed to deliver optimal performance while minimizing energy consumption, offering a cost-effective and sustainable solution for brackish water treatment.

Key Features and Benefits of the PRO-FT40160

1. Efficient Water Production
   The PRO-FT40160 Brackish Water Reverse Osmosis system delivers up to 1TPH of permeate, which is ideal for medium to large-scale operations. Its single-pass membrane setup ensures maximum water recovery, resulting in high-quality purified water with minimal waste.

2. Durable SS304 Skid-Mount Design
   The system’s SS304 stainless steel frame offers corrosion resistance and robustness, ensuring longevity in harsh environments. The skid-mount design facilitates easy installation, making it a versatile choice for various industrial settings.

3. Advanced Pretreatment Process
   This system features an advanced SF-ACF-IXF-RO process, which includes Sand Filtration (SF), Activated Carbon Filtration (ACF), and Ion Exchange Filtration (IXF). This multi-stage pretreatment removes sediment, chlorine, and organic contaminants from the feed water, protecting the RO membranes from fouling and extending their service life.

4. Enhanced Monitoring and Control
   The IC control unit provides automatic control of the system’s operations, ensuring optimal performance and ease of use. The TDS indicator monitors the quality of the treated water, while pressure gauges, flow meters, and LP/HP switches allow operators to monitor and adjust the system’s performance in real-time. Operational status indicators offer additional insights into the system’s functioning, ensuring a seamless operation.

5. Customizable Membrane Options
   The PRO-FT40160 supports Filmtec and Hydranautics RO membranes, offering flexibility for users to choose the membrane brand and model that best fits their water treatment needs. This ensures that the system can be tailored to meet specific water quality requirements and performance goals.

6. Energy-Efficient Power Consumption
   The system operates with an installed power of 2.1 kW and is designed for use with a 380-415V, 50Hz power supply. For locations with different power configurations, optional voltage setups are available. This allows the system to integrate seamlessly into existing infrastructure while maintaining energy efficiency.

Applications of the PRO-FT40160 System

The PRO-FT40160 Brackish Water Reverse Osmosis system is suitable for various applications where purified water is required:

• Food and Beverage Industry – Ensures the production of high-quality water for processing and beverage production, including soft drink production and water for food manufacturing.

• Agricultural Irrigation – Provides clean, safe water for crop irrigation, especially in areas with brackish groundwater or limited access to freshwater sources.

• Municipal Water Treatment – Ideal for water treatment plants in regions where brackish water is the primary source of supply, enabling municipalities to provide clean drinking water to their residents.

• Pharmaceutical and Medical Applications – Supplies purified water for the pharmaceutical industry, which demands stringent water quality standards for production and laboratory use.

Technical Specifications Table

Conclusion

The PRO-FT40160 Brackish Water Reverse Osmosis system offers an efficient, cost-effective solution for treating brackish water to produce high-quality permeate. With its durable SS304 skid-mount design, advanced pretreatment process, customizable membranes, and automated control system, it is ideal for medium to large-scale applications in various industries. Whether for food and beverage production, agricultural irrigation, or municipal water treatment, this system guarantees reliable performance, optimal water quality, and a long service life, making it an excellent investment for businesses seeking a sustainable water treatment solution.
