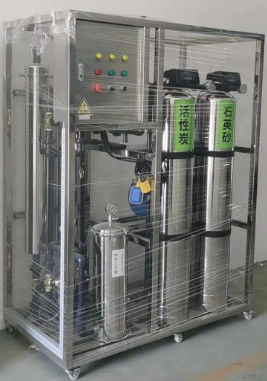

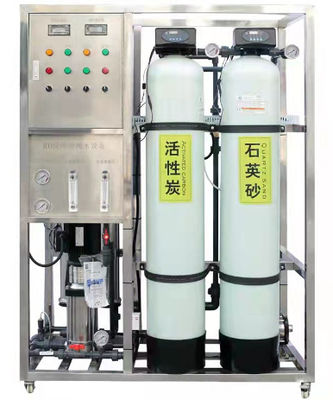

1TPH Salt Water Reverse Osmosis System In SS304 Skid Mounted Design
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | PRO-FD40160 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Equipment Installed Power: | 1.7kW-380-415V, 50Hz | Voltage: | 380V,415V,220V,can Be Customized |
|---|---|---|---|
| Installation Power: | 3.0kW-380-415V | Technological Process: | SF-ACF-IXF-RO |
| Core Process: | SF-ACF-RO | Components: | Pump, RO Membrane,Tanks |
| System Water Productivity: | 500 L/H | Power And Voltage: | 14kW-380-415V, 50Hz |
| Recovery Rate: | Up To 80% | Pipe Material: | UPVC Water Pipes |
| Productivity: | 250 L/H | Feed Water Tds: | Up To 10,000 Ppm |
| Prefilter Tank: | 2xSS304 Tanks | Feed Water Temperature: | 5-35°C |
| Product Productivity: | 500 L/H | ||
| Highlight: | Salt Water Reverse Osmosis System,SS304 Skid Mounted RO System,1TPH Reverse Osmosis System |
||
Product Description
The PRO-FD40160 Brackish Water Reverse Osmosis system is an ideal solution for industries and commercial applications that require efficient water purification from moderately saline water sources. Capable of producing 1 ton per hour (1TPH), or 6,400 gallons per day (GPD), this high-performance system is designed to treat brackish water with a feed TDS (Total Dissolved Solids) level of less than 2000 ppm. Whether used in agriculture, food and beverage processing, or municipal water systems, this system ensures high-quality permeate water while maintaining energy efficiency and low operating costs.
Built with a durable SS304 stainless steel skid-mount and a 4"x4 single-pass membrane configuration, the PRO-FD40160 Brackish Water Reverse Osmosis system guarantees consistent, reliable output while minimizing operational complexity. The advanced filtration process, efficient power usage, and robust construction make it a preferred choice for medium to large-scale water treatment projects.
Key Features and Benefits of the PRO-FD40160 System
-
High-Quality Water Production
The system is engineered to handle brackish water with TDS levels of less than 2000 ppm, making it suitable for a wide range of applications that demand clean water. The single-pass membrane effectively removes salts, contaminants, and impurities to produce high-quality permeate with a high recovery rate. -
Durable Construction with SS304 Skid-Mount
The system’s frame is made from SS304 stainless steel, a material known for its corrosion resistance and strength. The skid-mount design makes it easier to install and maintain, ensuring that the system can withstand harsh industrial environments while offering excellent longevity. -
Efficient Pretreatment Process
The SF-ACF-RO process used in the PRO-FD40160 includes Sand Filtration (SF) and Activated Carbon Filtration (ACF), which remove suspended solids, chlorine, and organic compounds from the feed water. This pretreatment is housed in 2x FRP (Fiberglass Reinforced Plastic) tanks, ensuring durability and resistance to chemical corrosion. -
Advanced Monitoring and Control
The system features an IC control unit that automates system operation and ensures optimal performance at all times. A TDS indicator monitors the quality of the treated water, while pressure gauges, flow meters, and LP/HP switches help operators track the system’s status and detect any issues early. -
Customizable Membrane Options
The PRO-FD40160 is compatible with Filmtec and Hydranautics membranes, allowing users to select the best membranes for their specific needs. This flexibility ensures that the system can meet the requirements of various water quality standards and maximize the lifespan of the membranes. -
Flexible Power Supply
The system operates with 2.1 kW power and is designed for 380-415V, 50Hz power supply, with other voltage options available upon request. This flexibility allows for easy integration into various global locations and industrial power grids.
Applications of the PRO-FD40160
The PRO-FD40160 Brackish Water Reverse Osmosis system is versatile and suitable for various industries where purified water is required, such as:
-
Agriculture: Provides high-quality water for irrigation purposes, particularly in areas with brackish groundwater.
-
Food & Beverage Industry: Ensures purified water for processing and production, including drinking water and water used in manufacturing.
-
Municipal Water Supply: Ideal for cities and towns that need to treat brackish water for consumption or distribution.
-
Pharmaceuticals and Laboratories: Delivers pure water for manufacturing or laboratory use, ensuring compliance with strict water quality standards.
Technical Specifications Table
| Item | Specification |
|---|---|
| Model | PRO-FD40160 |
| Application | Brackish Water Reverse Osmosis |
| Permeate Flow Rate | 1 TPH (6,400 GPD) |
| Skid Material | SS304 Stainless Steel |
| RO Membrane Configuration | 4” x 4 (Single Pass) |
| Installed Power | 2.1 kW |
| Operating Voltage | 380–415V, 50Hz (Other voltages optional) |
| Feed Water TDS | <2000 ppm |
| Pretreatment Process | SF + ACF |
| Pretreatment Tanks | 2x FRP Tanks |
| Piping Material | uPVC |
| Flow Meter & Pressure Gauge | Included |
| Switches | Low Pressure & High Pressure Switches |
| Control System | IC Control Unit with TDS Indicator |
| RO Membrane Brands (Optional) | Filmtec / Hydranautics |
The PRO-FD40160 Brackish Water Reverse Osmosis system is a high-efficiency solution for a variety of industrial and commercial water purification needs. With its durable SS304 skid-mount design, robust pretreatment process, customizable membranes, and advanced monitoring systems, it offers an excellent balance of performance, reliability, and cost-effectiveness. Whether used in food and beverage production, agriculture, or municipal applications, this system ensures the delivery of high-quality purified water with minimal maintenance and energy consumption.
