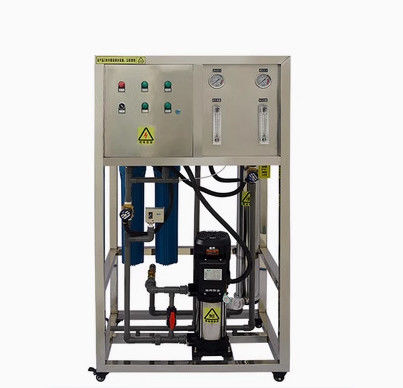

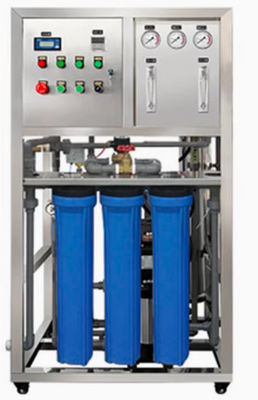

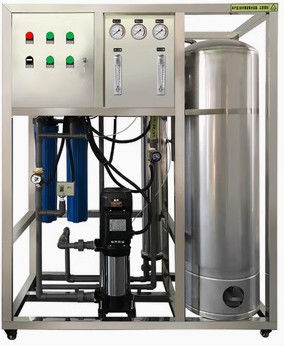

Brackish Water Reverse Osmosis Water Plant 250L/h 1600 GPD

Brackish Water Reverse Osmosis Water Plant 250L/h (1,600 GPD)

Overview

The Brackish Water Reverse Osmosis Water Plant is designed to efficiently treat brackish water sources, providing clean and purified water for various applications. With a permeate flow of 250L/h (1,600 GPD), this plant is well-suited for small-scale commercial, industrial, and municipal water purification. This system is engineered for brackish water with a feed water Total Dissolved Solids (TDS) of less than 2000ppm, and it is built on a durable SS304 skid-mount frame.

The single-pass membrane configuration (4"x1") ensures high performance and reliable output, while the plant is powered by an energy-efficient 1.7 kW motor running on 220-240V, 50Hz, with other voltage options available. This makes it an adaptable solution for different regions and environments. Whether used in an industrial setting, for drinking water production, or for smaller water treatment plants, this unit is built to deliver stable, high-quality water output with minimal maintenance.

Key Features

1. Capacity and Performance

   • The plant is designed to produce 250L/h (1,600 GPD) of purified water. This is ideal for smaller communities, industries, or commercial establishments with moderate water demands.

   • It works effectively with brackish water sources where the TDS is <2000ppm.

2. Single Pass Membrane Configuration

   • The plant utilizes a single-pass membrane configuration with 4"x1" RO membranes. This configuration ensures efficient filtration and excellent salt rejection, making the system suitable for producing high-quality drinking water.

   • Filmtec or Hydranautics RO membranes are available, both of which are industry-leading membrane brands known for their performance and reliability.

3. Skid-Mount Frame for Easy Installation

   • The SS304 skid-mount frame provides structural integrity, corrosion resistance, and ease of installation. The skid-mount design allows for easy transport and placement in various settings, such as commercial and industrial installations, or in remote locations where portability is essential.

4. Pre-treatment System: Sediment Filtration

   • The plant comes equipped with a 3-stage sediment filter system. These filters effectively remove suspended particles, dirt, and larger sediments from the feed water before it enters the RO system, ensuring that the reverse osmosis membrane operates efficiently and without clogging.

   • The filtration process helps to extend the lifespan of the RO membranes and ensures better overall performance of the system.

5. Advanced Control and Monitoring

   • The plant is equipped with a flower meter and pressure gauge, which provide operators with real-time information about water flow and system pressure. These indicators help monitor the performance of the system and ensure it is running at optimal conditions.

   • LP & HP switches protect the system from low and high pressure conditions, preventing potential damage to components.

   • IC control unit for intelligent operation and automation.

   • TDS indicator allows operators to monitor the quality of the permeate water, ensuring that it meets required standards.

6. Energy-Efficient Power

   • The system operates on 1.7 kW of power, which is low for a system of this capacity. This makes it energy-efficient and cost-effective for ongoing operation. The plant operates on 220-240V, 50Hz, with other voltage options available to suit different regions and power requirements.

7. Durable Materials and Construction

   • The plant uses uPVC water pipes, which are durable and resistant to corrosion, ensuring long-term reliable operation even in challenging water conditions.

   • The SS304 skid-mount frame offers strong resistance to corrosion, especially in environments where the plant may be exposed to harsh conditions.

Applications

• Drinking Water Production: Suitable for municipal water treatment, community water supply systems, and other small-scale drinking water production units.

• Industrial Use: Ideal for industries that require purified water for production processes, cooling, rinsing, or cleaning.

• Agricultural Use: The system can be used to treat brackish water for irrigation purposes, especially in areas where fresh water is scarce but brackish water is abundant.

Technical Specifications

The Brackish Water Reverse Osmosis Water Plant with a permeate capacity of 250L/h (1,600 GPD) provides a reliable and efficient solution for treating brackish water in small to medium-scale applications. Whether used for drinking water production, industrial processes, or agricultural irrigation, this system ensures high-quality output and low operational costs. The system’s advanced monitoring, control capabilities, and durable construction make it an excellent choice for consistent and long-term water treatment performance.
