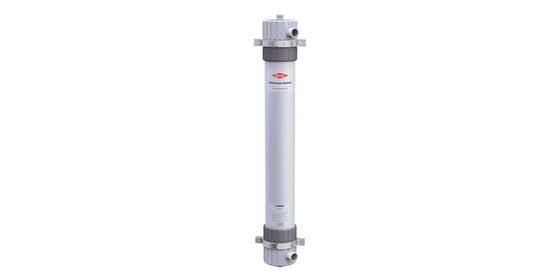

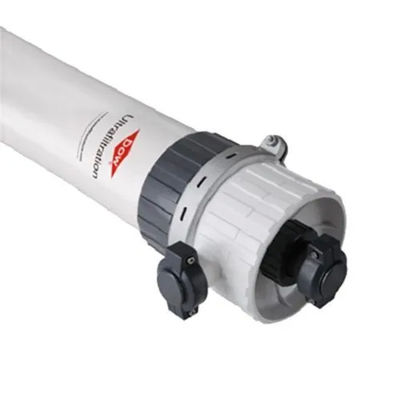

DOW™ UF SFP-2860 High-Capacity Fouling-Resistant For Industrial Municipal
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP-2860 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| The Module Flow Range: | 2.0 – 6.1 M3 /hr | The Module Flow Range Membrane Area: | 51 M² |
|---|---|---|---|
| Module Nominal Pore Diameter: | 0.03 µm | The Module Material: | PVDF |
| Diameter Of This Model: | 8 Inch | Flow Direction Settings: | External Pressure Structure, Dead End Filtration |
| Component NaOCl (max.) Of This Model: | 2,000 Mg/L | The Max Backwash Pressure: | 2.5 Bar |
| Component Filtration Accuracy: | 0.01-0.1μm | Operating Pressure: | 2.5M |
| Component Max. Operating TMP: | 2.1 Bar | Component Turbidity (max.): | 300 Ntu |
| Component Advantages: | High-Capacity, Fouling-Resistant | Application: | Industrial & Municipal |
| Highlight: | Industrial DOW UF SFP-2860,High-Capacity DOW UF SFP-2860,Municipal DOW UF SFP-2860 |
||
Product Description
DOW™ UF SFP-2860: High-Capacity, Fouling-Resistant for Industrial & Municipal
The DOW™ UF SFP-2860 Ultrafiltration Membrane represents a breakthrough in water treatment technology, delivering superior filtration performance with unmatched efficiency and reliability. Engineered for demanding industrial and municipal applications, this advanced membrane system combines cutting-edge materials science with innovative design to provide exceptional water quality while reducing operational costs.
Key Features & Benefits:
- Enhanced Filtration Performance
- 0.02 micron pore size for effective removal of bacteria, viruses, and suspended solids
-
99.99% pathogen rejection rate
- Consistent product water quality with SDI <3
- Optimized Energy Efficiency
- Low transmembrane pressure operation (0.5-1.5 bar)
- 30% energy savings compared to conventional UF membranes
- High permeability design reduces pumping requirements
- Advanced Anti-Fouling Technology
- Proprietary hydrophilic membrane surface
- Reduced cleaning frequency (up to 50% less than standard membranes)
- Exceptional tolerance to high turbidity (up to 500 NTU)
- Robust Construction & Longevity
- Reinforced PVDF hollow fiber membrane
- Withstands chlorine exposure up to 500,000 ppm-hours
- 5+ year lifespan with proper maintenance
- Operational Flexibility
- Wide pH tolerance range (2-11 for cleaning, 4-10 for operation)
- Temperature resistance up to 40°C
- Multiple configuration options (pressurized/submerged)
Technical Specifications:
- Membrane Material: Polyvinylidene fluoride (PVDF)
- Fiber Diameter: 1.0/1.7 mm (inner/outer)
- Maximum Operating Pressure: 3.0 bar
- Typical Flux Rate: 50-100 LMH (L/m²/h)
- Module Dimensions: Customizable (standard 8" diameter)
Applications:
- Pretreatment for reverse osmosis systems
- Surface water treatment for potable use
- Industrial process water purification
- Wastewater reuse and recycling
- Seawater pretreatment for desalination
Why Choose DOW™ UF SFP-2860?
The SFP-2860 sets a new standard in ultrafiltration technology by combining Dow's material science expertise with practical engineering solutions. Its superior fouling resistance and energy-efficient operation significantly reduce lifecycle costs, while the robust construction ensures reliable performance in challenging water conditions. Whether for large-scale municipal projects or specialized industrial applications, the SFP-2860 delivers consistent, high-quality filtration results.
Certifications & Compliance:
- NSF/ANSI 61 Certified
- ISO 9001 Quality Management System
- CE Marked
- Meets AWWA and EPA standards
For optimal performance, we recommend pairing the SFP-2860 with Dow's complete ultrafiltration system solution, including skid-mounted modules, backwash systems, and chemical cleaning stations. Our technical support team can provide customized system design and operational guidance to maximize your investment.
Product Specifications
Figure 1: SFP and SFD 2860 (8-inch diameter)
Figure 2
Operating Parameters
Important information
Proper start-up of a UF system is indispensable for preparing the membranes for operational service and preventing membrane damage. Adhering to the correct start-up sequence also contributes to ensuring that the operating parameters of the system conform to the design specifications, thereby enabling the attainment of system water quality and productivity targets. Before commencing the system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration, and other system checks should be accomplished. Kindly refer to the product technical manual.
Operation guidelines
Avoid any sudden pressure fluctuations during start-up, shutdown, cleaning or other processes to prevent potential membrane damage. Flush the UF system to eliminate the shipping solution before start-up. Remove the residual air from the system before start-up. Manually initiate the equipment. Aim for a permeate flow of 60% of the design during the initial operations. Depending on the application, the permeate obtained from the initial operations should be disposed of. Please refer to the product technical manual.
Regulatory note
NOTICE: NSF/ANSI 61 certified drinking water modules demand specific conditioning procedures before generating potable water. Please refer to the flushing section of the product technical manual for detailed procedures. Drinking water modules might be subject to additional regulatory constraints in certain countries. Please verify local regulatory guidelines and the application status before usage and sale.
The utilization of this product does not inevitably ensure the elimination of cysts and pathogens from water. Effective reduction of cysts and pathogens depends on the complete system design as well as the operation and maintenance of the system.
Notice: No inference should be made regarding the absence of infringement of any patent owned by Dow or others. As the use conditions and applicable laws may vary from one location to another and may change over time, the Customer is accountable for determining whether the products and the information in this document are suitable for the Customer's use and for ensuring that the Customer's workplace and disposal practices comply with applicable laws and other governmental enactments. The product presented in this literature might not be available for sale and/or available in all geographical areas where Dow is represented. The claims made might not have been approved for use in all countries. Dow assumes no obligation or liability for the information in this document. References to "Dow" or the "Company" signify the Dow legal entity selling the products to the Customer unless otherwise explicitly noted. NO WARRANTIES ARE PROVIDED; ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED.
For detailed parameters, please visit:
