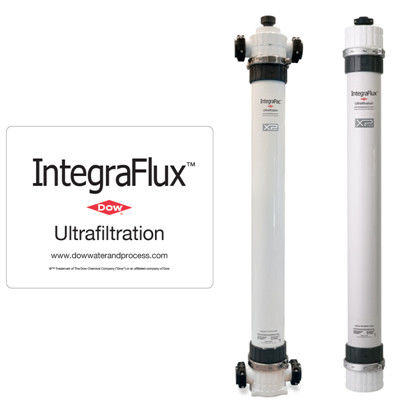

Dow™ IntegraTec™ XP 51 IG - 0.03μm PVDF UF Membrane 51m2 Area NSF Certified
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | IntegraTec™ XP 51 IG(previously SFP-2860XP) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Model Of Filtration: | Out-In Pressurized | Membrane Type Of This Model;: | Hollow Fiber |
|---|---|---|---|
| Membrane Material Of This Model: | PVDF (Polyvinylidene Fluoride | Membrane Pore Size: | Approx. 0.03 µm |
| Module Operating Process: | Dead-end | Other Wetted Module Components: | Polyurethane, Polyethylene, And Polyamide |
| Active Membrane Area: | 51 M² | Shipping Weight Of This Model: | 60 Kg |
| Weight Empty: | 48 Kg | Weight Filled: | 83 Kg |
| Application Of The Product: | Wastewater Treatment | Advantages: | • Municipal Drinking Water. • Industrial Utility Water. • Industrial Wastewater Reuse. • Municipal Wastewater Filtration. • RO Pretreatment |
| Highlight: | NSF Certified PVDF UF Membrane,0.03μm PVDF UF Membrane,51m2 PVDF UF Membrane |
||
Product Description
Dow™ IntegraTec™ XP 51 IG - 0.03μm PVDF UF Membrane,51m² Area,NSF Certified
Advanced Integrated Solution for Industrial Water Challenges
Engineered Excellence
The Dow™ IntegraTec™ XP 51 IG represents the next generation of ultrafiltration technology, combining Dow's patented PVDF hollow fiber membranes with an intelligent integrated design. This industrial-grade solution delivers unmatched performance in the most demanding water treatment applications.
Breakthrough Technology
- Smart Integrated Design: Pre-engineered membrane bundles with optimized fiber distribution (patented XP geometry) enhance flux stability and reduce energy consumption by up to 25% versus conventional UF modules
- Advanced PVDF Matrix: Nano-enhanced polymer formulation provides superior chemical resistance (pH 1-13 intermittent, 2-11 continuous) and extended membrane life (5+ years typical)
- Intelligent Filtration Control: Integrated turbulence promoters enable stable operation at 85-92% recovery rates even with challenging feed waters
Performance Specifications
| Parameter | Value |
|---|---|
| Filtration Area | 51 m² |
| Pore Size | 0.03 μm |
| Operating Pressure | 0.1-0.35 MPa |
| Maximum TMP | 0.6 MPa |
| Temperature Range | 5-40°C |
| Chlorine Resistance | 500,000 ppm·h |
Industrial-Proven Applications
✔ High-Solids Wastewater: Mining effluent (tested at 500 mg/L TSS with <0.1 NTU product)
✔ RO Pretreatment: Achieves SDI15 <2.5 for seawater desalination plants
✔ Chemical Process Water: Certified for use in pharmaceutical and microelectronics production
✔ ZLD Systems: 92% recovery demonstrated in coal-to-chemical wastewater applications
Operational Advantages
- 30% Faster Installation: Pre-assembled cartridge design reduces deployment time
- Maintenance-Free Operation: Automated Integrity Monitoring System (AIMS) compatible
- Sustainable Design: 100% recyclable materials meet EU RoHS directives
Certified Reliability
• NSF/ANSI 61 & 372 Drinking Water System Components
• ISO 9001:2015 Quality Management
• CE Marked for European Market
Product Specifications
Figure 1: SFP and SFD 2860XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
