DOW™ UF SFP-2660 Highly Effective Anti Pollution Preferred For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP-2660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Area Of The Product: | 33m² | Nominal Pore Diameter Of The Product: | 0.03 µm |
|---|---|---|---|
| Module Membrane Operating Pressure Of The Product: | 0.35MPa | Module Membrane Flow Range: | 1.3 – 4.0 M3/hr |
| Filtration Accuracy Of The Product: | 0.01-0.1µm | Filter Method: | External Pressure |
| Temperature: | 1-40ºC | Membrane Particle Size (max.): | 300 µ |
| Membrane Max Backwash Pressure: | 2.5 Bar | TSS (max.): | 100 Mg/L |
| Main Material: | PVDF | Advantages: | High Strength,Highly Effective Anti-Pollution, Preferred For Industrial |
| Application: | Pretreatment | ||
| Highlight: | Industrial DOW UF SFP-2660,Anti-Pollution DOW UF SFP-2660,Highly Effective DOW SFP-2660 Ultrafiltration Module |
||
Product Description
DOW™ UF SFP-2660: Highly Effective Anti-Pollution, Preferred For Industrial
Product Overview

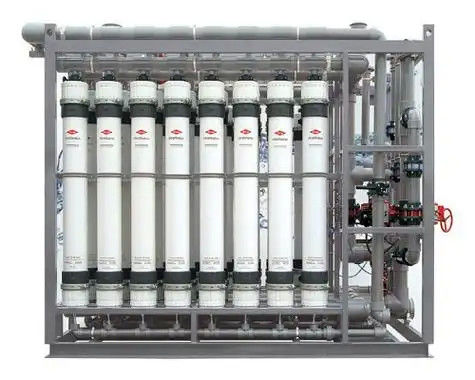

The DOW™ UF SFP-2660 is a high-performance ultrafiltration (UF) membrane module engineered for industrial and municipal water treatment. Utilizing PVDF (polyvinylidene fluoride) hollow fiber technology, it ensures reliable removal of suspended solids, bacteria, colloids, and viruses, serving as an ideal pretreatment for reverse osmosis (RO) systems or standalone filtration solutions.
Key Features
-
Advanced Filtration Performance
- 0.03 μm pore size: Guarantees high-quality effluent with turbidity ≤0.2 NTU and SDI ≤2.5.
- Outside-in flow configuration: Tolerates high-turbidity feedwater (e.g., industrial wastewater, surface water) and minimizes fouling risks.
-
Robust Design & Materials
- PVDF membrane: Exceptional chemical resistance (pH 1–12) and durability for harsh environments.
- U-PVC housing: Lightweight, corrosion-resistant, and eliminates costly pressure vessels.
-
Operational Efficiency
- High recovery rates: Achieves >90% recovery in industrial reuse applications.
- Automated cleaning: Supports air scouring and chemical-enhanced backwashing (CEB) to maintain low transmembrane pressure (TMP: 0.4–0.7 bar).
Applications
- Industrial Wastewater Reuse:
- Treats refinery wastewater (e.g., Sinopec’s 56 m³/h plant) with high oil/COD content.
- Zero-liquid-discharge (ZLD) systems in coal gasification (e.g., 80% recovery in coal-to-chemical plants).
- Municipal Water Treatment:
- Surface water purification (e.g., river water with TSS ≤50 mg/L).
- Pretreatment for seawater desalination.
Product Specifications
Figure 1: SFP and SFD 2660 (6-inch diameter)
Figure 2
Operating Parameters
Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed.
