98%~99% Desalination Rate 250 LPH Commercial Reverse Osmosis Plant For Drinking Water
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Brackish Water Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Plant Productivity: | 250L/H | Plant Installed Power: | 1.7kW-220-240V, 50Hz |
|---|---|---|---|
| Plant Feed Water TDS: | <2000 Ppm | Plant Process: | Sediment Filters-RO |
| Plant Water Pipes Material: | UPVC Water Pipes | RO Membrane Optional: | Filmtec/Hydranautics |
| Plant Weight: | 50 | Plant Size(LxWxH-cm): | 60*50*145 |
| Highlight: | 250 LPH Commercial Reverse Osmosis Plant,Drinking Water Commercial Reverse Osmosis Plant,98%~99% Desalination Rate Reverse Osmosis Plant |
||
Product Description

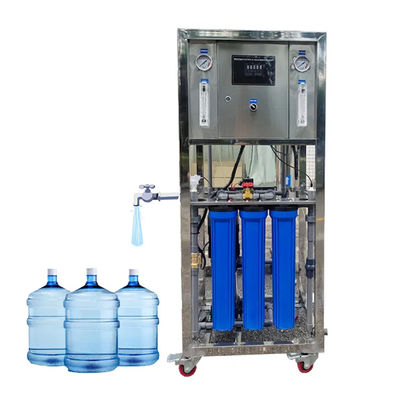

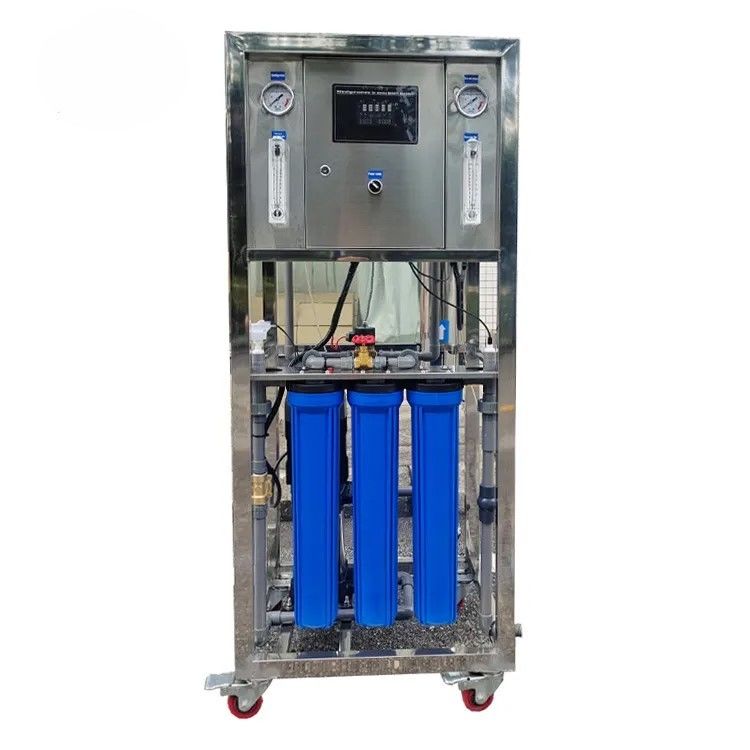

250 LPH Commercial Reverse Osmosis Plant For Drinking Water
Products Description
Details Images

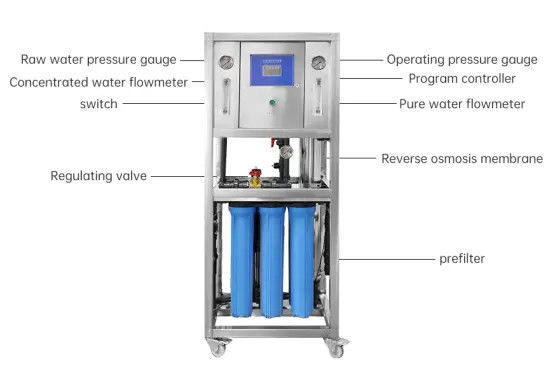

Working Process:
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ security filter→ high pressure pump →reverse osmosis system→ Ozone sterilizer (UV sterilizer).
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
Advantages
Reverse osmosis equipment belongs to physical desalting method, which has many advantages.
1) Non-phase-change physical method was used to desalinate and purify the saline water under norma temperature.
2) Desalting rate of single membrane element is 99.3% and can remove colloid, organics, bacteria, virus and all kinds of heavy metals in water at the same time.
3) With water pressure as the driving force, energy consumption is the lowest among many treatment methods.
4) No need for large amount of chemical treatment, no elimination of chemical waste liquid, no environmental pollution, and the recovery rate is over 70%.
5) High automation program, automatic stop in case of ailure, with automatic protection function.
6) The system is simple, easy to operate, and the water quality is stable.
7) Equipment covers small area, compact structure, reliable operation and high water quality.
Product Paramenters
Applications
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.

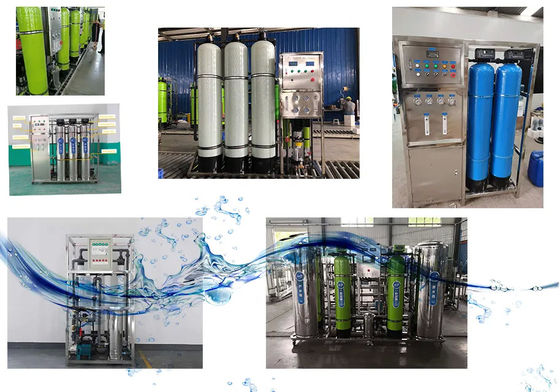

Customer Photos
All optional configurations:
| Product name and basic parameters | Other Configuration | L(cm) | W(cm) | H(cm) | Weight(KG) |
| Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD), SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-220-240V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: sediment filters-RO *with 3 stage sediment filters; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
60 | 50 | 145 | 50 |
| Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD), SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-220-240V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: sediment filters-RO *with 3 stage sediment filters; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
60 | 50 | 145 | 55 |
| Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD), SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-RO *pretreatment: 3 FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
| Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD), SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-IXF-RO *pretreatment: 3 FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
| Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD), SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
| Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD), SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
| Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD), SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
| Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD), SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
| Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD), SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
| Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD), SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
| Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD), SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 230 |
| Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD), SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 250 |
| Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD), SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process: SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 230 |
| Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD), SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 250 |
| Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 235 |
| Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 255 |
| Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 235 |
| Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 255 |
| Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 280 |
| Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 320 |
| Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 280 |
| Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD), SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 320 |
| Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD), SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 320 |
| Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD), SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 340 |
| Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD), SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 340 |
| Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD), SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 360 |
| Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD), SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 360 |
| Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD), SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 380 |
| Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD), SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 380 |
| Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD), SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 400 |
| Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD), SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 380 |
| Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD), SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 400 |
| Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD), SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 400 |
| Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD), SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 430 |
| Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD), SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 400 |
| Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD), SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 420 |
| Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD), SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 430 |
| Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD), SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 450 |
| Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD), SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 450 |
| Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD), SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 480 |
| Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD), SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 500 |
| Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD), SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 540 |
| Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD), SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 500 |
| Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD), SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 620 |
| Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD), SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 680 |
| Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD), SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; feed water TDS<2000ppm; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 760 |
