PVDF DOW UF Membranes Modules SFP-2660 / SFD-2660 With Large Effective Membrane Area
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP-2660 / SFD-2660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Membrane Area: | 33m² | Nominal Pore Diameter: | 0.03 µm |
|---|---|---|---|
| Product Operating Pressure: | 0.35MPa | Product Flow Range: | 1.3 – 4.0 M3/hr |
| Filtration Accuracy: | 0.01-0.1µm | Filter Method: | External Pressure |
| Temperature: | 1-40ºC | Product Particle Size (max.): | 300 µ |
| Product Max Backwash Pressure: | 2.5 Bar | TSS (max.): | 100 Mg/L |
| Core Material: | PVDF | Advantages: | Large Effective Membrane Area |
| Highlight: | DOW UF Membranes Modules SFP-2660,SFD-2660 DOW UF Membranes Modules |
||
Product Description
PVDF DOW UF Membranes Modules SFP-2660 / SFD-2660 With Large Effective Membrane Area

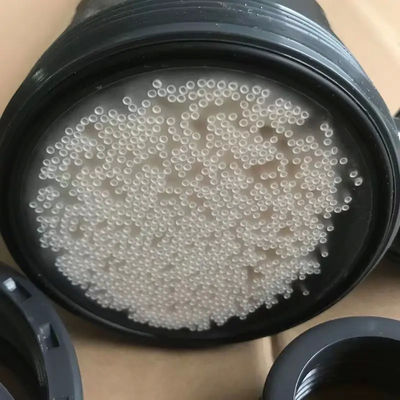

The DOW™ ultrafiltration (UF) modules are made from high strength, hollow fiber membranes that have excellent features and benefits:
-
Hydrophilic PVDF Fiber: This fiber is easy to clean and wet, which helps to maintain stable performance and consistent product quality over the long term. The hydrophilic nature of the PVDF material ensures efficient wetting and prevents fouling, leading to better permeate flux and lower maintenance requirements.
-
External Pressure Structure: The unique external pressure design can tolerate higher influent solid content, thereby reducing the need for extensive pretreatment processes. This feature makes the system more robust and adaptable to handle a wider range of feed water compositions, simplifying the overall treatment process.
-
U-PVC Shell: The use of a U-PVC shell eliminates the need for expensive pressure vessels, significantly reducing the capital costs associated with the membrane system. This cost-effective design makes the solution more accessible and viable for a broader range of applications.
-
Suitable for Large-Capacity Systems: The membrane modules are designed to be suitable for large-capacity systems with a capacity of more than 50 m³/hr (220 gpm). This scalability allows the system to be tailored to the specific needs of various water treatment facilities, from small-scale to large-scale operations.
-
Large Effective Membrane Area: The larger diameter and higher packing density of the membrane elements enable a more economical membrane system design, optimizing the use of available space and reducing the overall footprint of the treatment facility.
-
Wide Application Areas: These membrane modules are widely used in various water treatment fields, including surface water, seawater, industrial wastewater, and secondary biochemical effluent. This versatility allows the system to be deployed across a diverse range of water treatment applications, addressing the unique needs of different industries and environments.
-
0.03 µm Nominal Membrane Pore Size: The precise 0.03 µm nominal membrane pore size ensures the effective removal of bacteria, viruses, particulate matter, and colloids. This level of filtration protects downstream processes, such as reverse osmosis systems, from potential fouling and ensures the delivery of high-quality treated water.
-
High Strength and Strong Chemical Resistance: The robust construction and superior chemical resistance of the membrane assembly guarantee a longer service life, minimizing the need for frequent replacements and reducing the overall life-cycle costs of the water treatment system.
Product Specifications

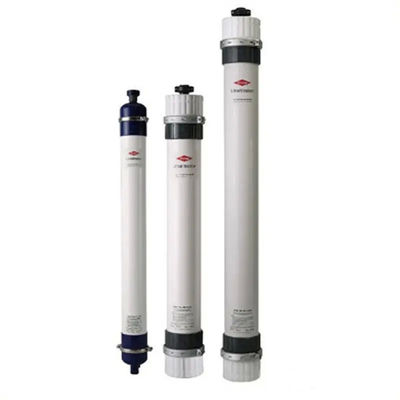

Figure 1: SFP and SFD 2660 (6-inch diameter)
Figure 2
Operating Parameters
Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed.
