3TPH 5.5kW-380-415V 2xFRP Tanks Brackish Water Reverse Osmosis Water Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Brackish Water Reverse Osmosis Water Plant |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Capacity: | 2TPH | The Number And Material Of Tank: | 2xFRP Tanks |
|---|---|---|---|
| Process Of The Device: | SF-ACF-RO | Installed Power Of The Device: | 5.5kW-380-415V, 50Hz |
| Feed Water TDS Of The Device: | <2000 Ppm | Material: | Stainless Steel 304 Tank, UPVC Pipe |
| RO Membrane: | Filmtec/Hydranautics | Weight(KG): | 320 |
| Size(LxWxH): | 260*80*170cm | Components: | Pump, RO Membrane,Tanks |
Product Description

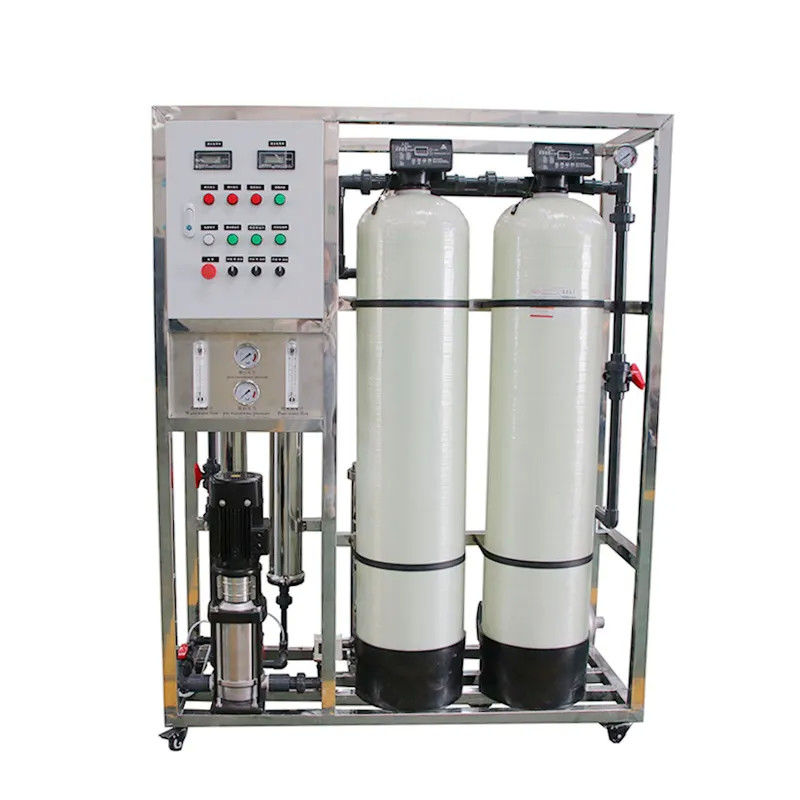

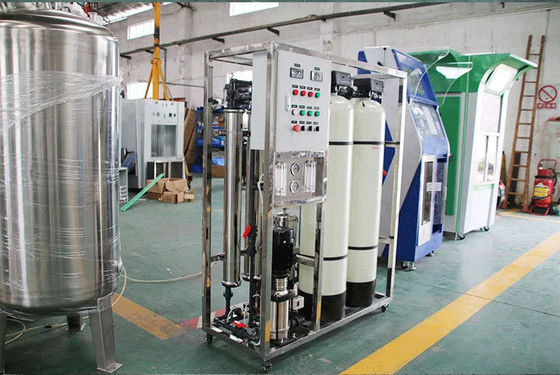

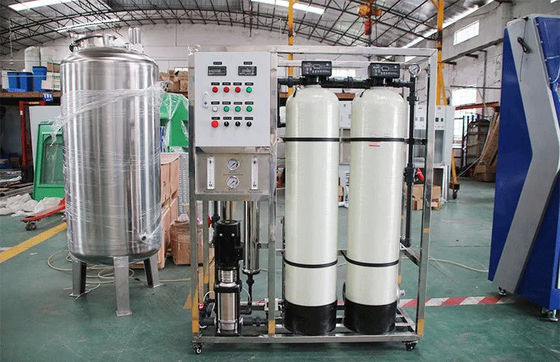

3TPH Pretreatment 2xFRP Tanks Brackish Water Reverse Osmosis Water Plant
Reverse Osmosis (RO) is a highly effective water purification process that utilizes semi-permeable spiral wound membranes to remove impurities from water. These impurities can include dissolved solids, organic compounds, pyrogens, submicron colloidal matter, color, nitrate, and bacteria.
In the RO process, feed water is pushed through the membrane under pressure. The membrane allows water molecules to pass through its tiny pores, while trapping and removing impurities. The purified water that passes through the membrane is known as permeate water, while the concentrated impurities are collected in a separate stream known as concentrate water, which is then flushed away.
RO membranes are commonly used in various applications, including domestic water purification systems, hospital and laboratory cleaning equipment, and other water treatment systems. These membranes are designed to provide high flux rates and effectively remove salts and other contaminants from water, ensuring clean and safe drinking water for various purposes.
Advantages:
1. One-button simple operation.
After installation and debugging, only one button on the panel is required for operation.
2. Fully automatic operation to achieve unmanned operation.
The system can realize manual and automatic switching. During normal operation, the equipment, water pump, control valve, etc. can be manually operated.
3. Self-protection function A low-pressure switch is installed at the inlet of the high-pressure pump.
When the inlet pressure is lower than 0.05, the pressure controller is activated, the equipment stops running, and the safety of the high-pressure pump is ensured; the outlet of the high-pressure pump is equipped with a slow-opening electric valve and a high-pressure pressure switch to ensure the safety of the high-pressure pump, membrane assembly, and membrane shell when the outlet pressure is higher than 1.5Mpa.
4. Real-time monitoring of various operating parameters
An online conductivity meter is installed on the reverse osmosis total water inlet pipe to detect the quality of the source water. A source water flow meter and a concentrated water flow meter are installed on the reverse osmosis device. The reverse osmosis operation is observed according to the two flow meters and the system recovery rate is adjusted. An online conductivity meter is installed on the source water side of the reverse osmosis device to monitor the conductivity of the source water and calculate the system desalination rate. Pressure gauges are installed at the water inlet, concentrate outlet and interstage of the reverse osmosis device to monitor the operation of the reverse osmosis. Pressure gauges are installed on the multi-media filter.
5. Liquid level control system.
The relevant water tank is equipped with a liquid level controller, which is linked with the equipment to control the start and stop.
6. Reverse osmosis shutdown and automatic membrane surface flushing.
The reverse osmosis device automatically flushes the membrane surface when the system is shut down to prevent dirt deposition and scaling. It flushes for 30 seconds every 2 hours to prevent membrane scaling and pollution.
| Product name and basic parameters | Other Configuration | L(cm) | W(cm) | H(cm) | Weight(KG) |
|
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD)
single pass membrane 4"x1, installed power 1.7kW-220-240V, 50Hz; other voltages optional; |
*process: sediment filters-RO *with 3 stage sediment filters; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
60 | 50 | 145 | 50 |
|
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD)
single pass membrane 4"x2, installed power 1.7kW-220-240V, 50Hz; other voltages optional; |
*process: sediment filters-RO *with 3 stage sediment filters; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
60 | 50 | 145 | 55 |
|
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD)
single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-RO *pretreatment: 3 FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
|
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD)
single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-IXF-RO *pretreatment: 3 FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
|
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD)
single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
|
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD)
single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
|
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD)
single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
|
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD)
single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
|
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD)
single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 220 |
|
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD)
single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 240 |
|
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD)
single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 230 |
|
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD)
single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 250 |
|
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD)
single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; |
*process: SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 230 |
|
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD)
single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 78 | 170 | 250 |
|
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 235 |
|
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 255 |
|
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 235 |
|
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 255 |
|
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 280 |
|
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 320 |
|
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 280 |
|
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD)
single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 320 |
|
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD)
single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 320 |
|
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD)
single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 340 |
|
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD)
single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 340 |
|
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD)
single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
260 | 80 | 170 | 360 |
|
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD)
single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 360 |
|
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD)
single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 380 |
|
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD)
single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 380 |
|
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD)
single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 400 |
|
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD)
single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 380 |
|
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD)
single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 400 |
|
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD)
single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 400 |
|
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD)
single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
160 | 85 | 170 | 430 |
|
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD)
single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 400 |
|
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD)
single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 420 |
|
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD)
single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 430 |
|
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD)
single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 170 | 450 |
|
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD)
single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 450 |
|
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD)
single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 480 |
|
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD)
single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 500 |
|
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD)
single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 180 | 540 |
|
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD)
single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; |

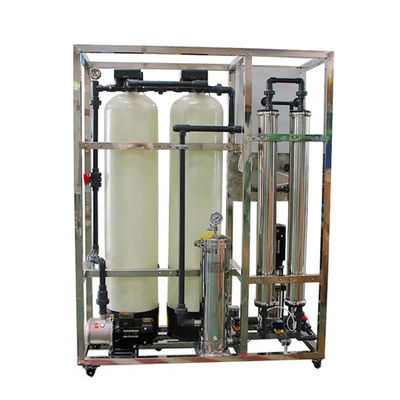

*process:SF-ACF-RO *pretreatment: 2x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 500 |
|
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD)
single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x FRP tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 620 |
|
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD)
single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-RO *pretreatment: 2x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 680 |
|
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD)
single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional; |
*process:SF-ACF-IXF-RO *pretreatment: 3x SS304 tanks; *uPVC water pipes; *flower meter & pressure gauge; *LP&HP switch;operational status indicators *IC control unit & TDS indicator *Filmtec/Hyranautics RO membranes optional |
280 | 85 | 190 | 760 |
About Us
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment quipment design, manufacturing, trading and shipment served for main industrial sectors.
HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.
Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water rever osmosis (BWRO), ultrafiltration (UF)system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners. So far, our company has become a major water treatment equipment supplier for food and beverage industry, pharmaceutical industry, chemical industry, electric power industry, urban water supply industry, municipal and industrial wastewater treatment and more industries, as well as being an exporter to more than 20 countries and regions in Asia, Europe, the Americas, Africa, etc.
OUR CLIENTS
INDUSTRIES SERVED
PRODUCTION SYSTEM
Our production system consist of a list of industry-specialized partnership factories accross China. Some of them singularly cover an area of over 10,000 square meters, including 5,000 square meters of workshop and warehouse and 1,500 square meters of office buildings. All of our technical staff has more than 10 years of experience in the design of water treatment systems, so we are able to provide the perfect solution for all kinds of water purification and sewage treatment applications.
Since the establishment, the Company has always regarded quality as the life of our business. We choose the best components only for the production of various water treatment systems. Our systems are easy to use and maintain, and they stays highly reliable even under toughest conditions.
Our FACTORY
