250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters

Product Details:

Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: Brackish Water Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD)

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information

Productivity: 250L/H Installed Power: 1.7kW-220-240V, 50Hz
Feed Water TDS: <2000 Ppm Process: Sediment Filters-RO
Water Pipes Material: UPVC Water Pipes RO Membrane Optional: Filmtec/Hydranautics
Weight: 50 Size(LxWxH-cm): 60*50*145

Product Description

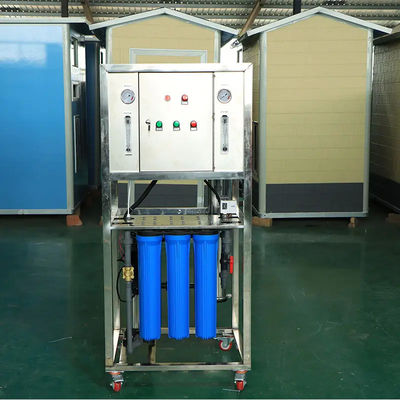

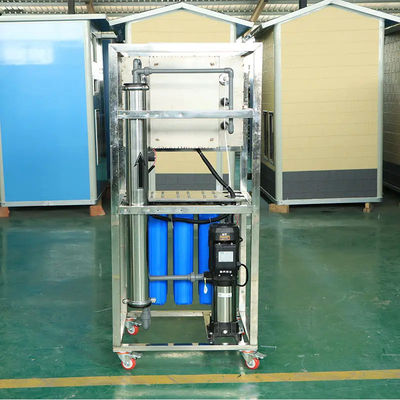

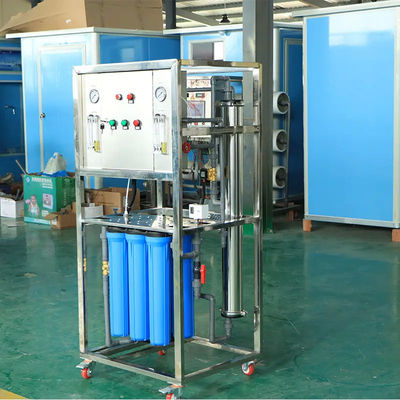

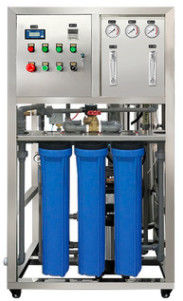

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters



Reverse Osmosis Water Plant



Reverse osmosis is a popular method of preferentially removing salt and other compounds from water. The process uses high pressureto force water through a semipermeable membrane, preserving high quality water while discarding salts, minerals and other contaminants as wastewater. This technology is often used in combination with other pre-treatment techniques such as coagulation or softening in order to maximize removal

efficiency.

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 0

Source factory

Reverse osmosis equipment

Groundwater/tap water

0.25/0.5 ton

● Compact structure

Integrated screen control

●Stainless steel material

Small footprint

●Multiple filtering structures

Factory direct sales, support customization

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 1250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 2

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 3



250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 4

Parameter Table

Product name and basic parameters Other Configuration L(cm) W(cm) H(cm) Weight(KG)
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD),
SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-220-240V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: sediment filters-RO
*with 3 stage sediment filters;
*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
60 50 145 50
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD),
SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-220-240V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: sediment filters-RO
*with 3 stage sediment filters;
*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
60 50 145 55
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD),
SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-RO
*pretreatment: 3 FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 220
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD),
SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-IXF-RO
*pretreatment: 3 FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 240
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD),
SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 220
Reverse Osmosis Water Plant Permeate 250L/h (1,600 GPD),
SS304 skid-mount, single pass membrane 4"x1, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 240
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD),
SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 220
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD),
SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 240
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD),
SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 220
Reverse Osmosis Water Plant Permeate 500L/h (3,200 GPD),
SS304 skid-mount, single pass membrane 4"x2, installed power 1.7kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 240
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD),
SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 230
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD),
SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 250
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD),
SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process: SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 230
Reverse Osmosis Water Plant Permeate 1TPH (6,400 GPD),
SS304 skid-mount, single pass membrane 4"x4, installed power 2.1kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 78 170 250
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 235
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 255
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 235
Reverse Osmosis Water Plant Permeate 1.5TPH (9,600 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 255
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 280
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 320
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 280
Reverse Osmosis Water Plant Permeate 2TPH (12,800 GPD),
SS304 skid-mount, single pass membrane 8"x2, installed power 3.0kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 320
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD),
SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 320
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD),
SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 340
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD),
SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 340
Reverse Osmosis Water Plant Permeate 3TPH (19,200 GPD),
SS304 skid-mount, single pass membrane 8"x3, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
260 80 170 360
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD),
SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 360
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD),
SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 380
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD),
SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 380
Reverse Osmosis Water Plant Permeate 4TPH (25,600 GPD),
SS304 skid-mount, single pass membrane 8"x4, installed power 5.5kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 400
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD),
SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 380
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD),
SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 400
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD),
SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 400
Reverse Osmosis Water Plant Permeate 5TPH (32,000 GPD),
SS304 skid-mount, single pass membrane 8"x5, installed power 7.4kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
160 85 170 430
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD),
SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 400
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD),
SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 420
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD),
SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 430
Reverse Osmosis Water Plant Permeate 6TPH (38,400 GPD),
SS304 skid-mount, single pass membrane 8"x6, installed power 7.9kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 170 450
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD),
SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 180 450
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD),
SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 180 480
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD),
SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 180 500
Reverse Osmosis Water Plant Permeate 8TPH (51,200 GPD),
SS304 skid-mount, single pass membrane 8"x8, installed power 14kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 180 540
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD),
SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 190 500
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD),
SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x FRP tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 190 620
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD),
SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-RO
*pretreatment: 2x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 190 680
Reverse Osmosis Water Plant Permeate 10TPH (64,000 GPD),
SS304 skid-mount, single pass membrane 8"x10, installed power 19kW-380-415V, 50Hz; other voltages optional;
feed water TDS<2000ppm;
*process:SF-ACF-IXF-RO
*pretreatment: 3x SS304 tanks;

*uPVC water pipes;
*flower meter & pressure gauge; *LP&HP switch;operational status indicators
*IC control unit & TDS indicator
*Filmtec/Hyranautics RO membranes optional
280 85 190 760



About Us
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment quipment design, manufacturing, trading and shipment served for main industrial sectors.
HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.
Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water rever osmosis (BWRO), ultrafiltration (UF)system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners. So far, our company has become a major water treatment equipment supplier for food and beverage industry, pharmaceutical industry, chemical industry, electric power industry, urban water supply industry, municipal and industrial wastewater treatment and more industries, as well as being an exporter to more than 20 countries and regions in Asia, Europe, the Americas, Africa, etc.

OUR CLIENTS

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 5

INDUSTRIES SERVED

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 6

PRODUCTION SYSTEM

Our production system consist of a list of industry-specialized partnership factories accross China. Some of them singularly cover an area of over 10,000 square meters, including 5,000 square meters of workshop and warehouse and 1,500 square meters of office buildings. All of our technical staff has more than 10 years of experience in the design of water treatment systems, so we are able to provide the perfect solution for all kinds of water purification and sewage treatment applications.
Since the establishment, the Company has always regarded quality as the life of our business. We choose the best components only for the production of various water treatment systems. Our systems are easy to use and maintain, and they stays highly reliable even under toughest conditions.

Our FACTORY

250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters 7
中国无锡芬尼格尔科技有限公司公司简介中国无锡芬尼格尔科技有限公司公司简介
中国无锡芬尼格尔科技有限公司公司简介中国无锡芬尼格尔科技有限公司公司简介

Want to Know more details about this product
I am interested in 250L/H 1.7kW-220-240V Brackish Water Reverse Osmosis Water Plant With 3 Stage Sediment Filters could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
