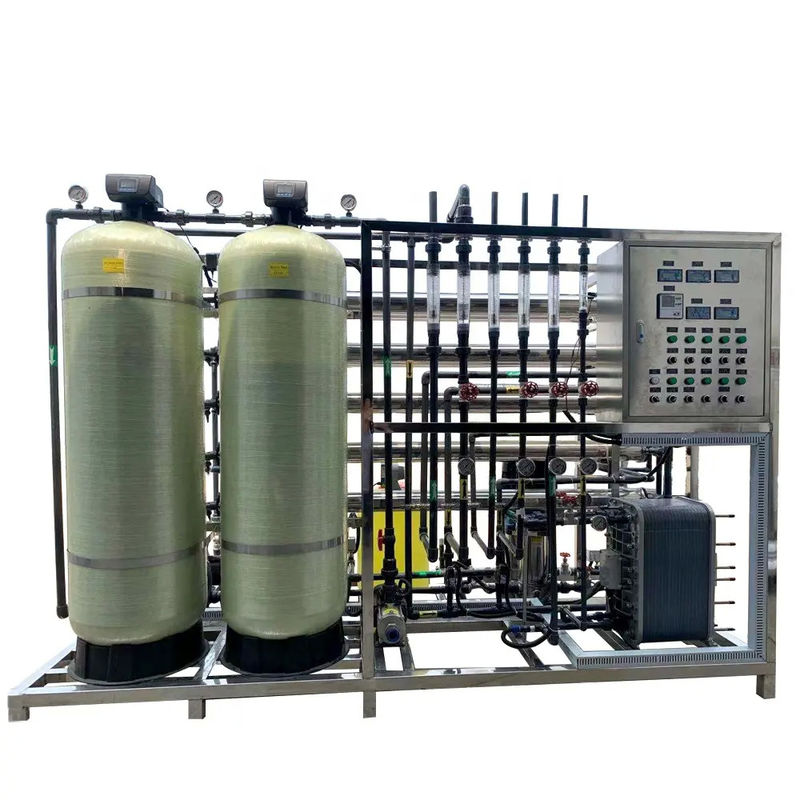

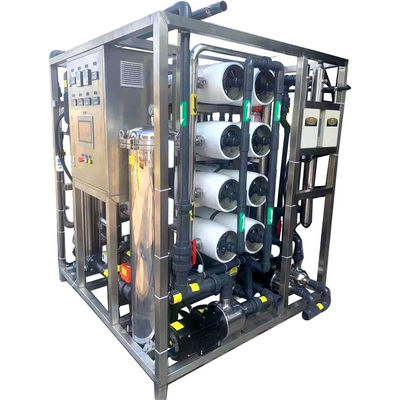

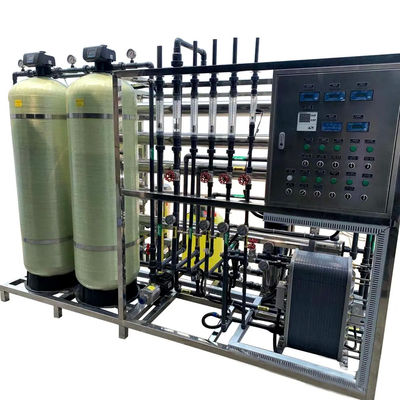

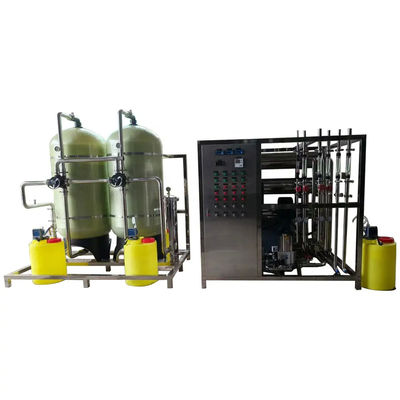

Double Pass RO 1500L/H EDI Ultrapure Water Machine For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Ultrapure Water Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Name: | Double Pass RO +EDI | Production Capacity: | 1500L/H |
|---|---|---|---|
| Purified Water Resistivity: | ≥15MΩ·cm | Applicable Industries: | Power, Electronics, Medicine, Chemical, Food And Laboratory,etc. |
| Power Supply: | 380/480V 50HZ/60HZ 3Phases | High Pressure Parts: | SS304 |
| Low Pressure Parts: | U-PVC | Precision Filter: | SS304 |
| Feed Pump: | 1Set SS304 CNP | ||
| Highlight: | Double Pass edi water treatment system,1500L/H edi water treatment system,1500L/H ultrapure water machine |
||
Product Description
Industrial Reverse Osmosis Plant EDI Water Treatment System Ultrapure Water Machine
EDI (Electrodeionization) is also called continuous electric desalination technology.RO & EDI Machine can be widely used in the fields of power, electronics, medicine, chemical, food and laboratory,etc. No need acid-base chemicals can continuously produce high-quality ultrapure water.
Main Parameters
| Name | Double pass RO +EDI |
| Production capacity | 1500L/H |
| Purified water resistivity | ≥15MΩ·cm |
| Applicable Industries | power, electronics, medicine, chemical, food and laboratory,etc. |
| Power supply | 380/480V 50HZ/60HZ 3Phases |
| High pressure parts | SS304 |
| Low pressure parts | U-PVC |
| Precision filter | SS304 |
| Feed Pump | 1Set SS304 CNP |
| High pressure pump | 1Set SS304 CNP |
Ultrapure water with different resistivity can be customized!
Main Features
1-It can run and produce water continuously, highly automatic.
2-No need chemical to regeneration,easy operation and maintainance
3-RO system uses imported USA DOW membrane
4-Automatic switch on when lack of water,and switch off when no water or full of water
5-RO membrane auto wash and reduce the pollution speed.
6-Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7-Production water condutivity meter monitors water quality online contionuosly.
8-Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

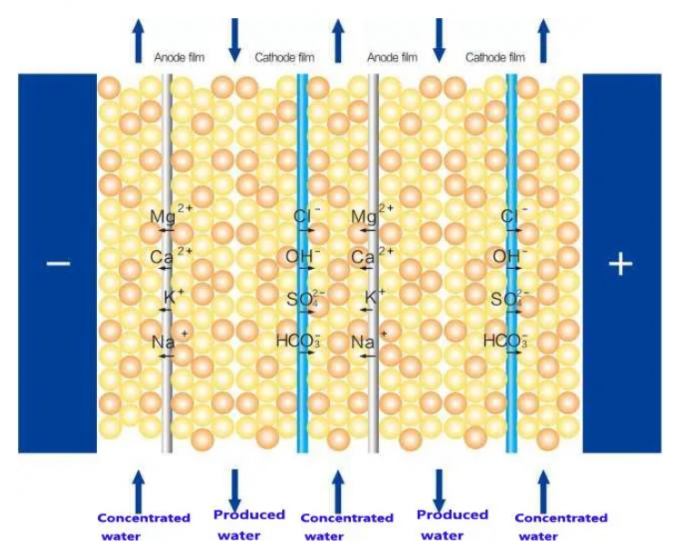

Working Principle
1. Raw water enters the EDI system, with the main part flowing into the resin membrane and the other part flowing out along the outside of the membrane to wash away the ions outside the membrane.
2. The resin captures the ions dissolved in the water.
3. The captured ions move under the action of the electrodes, with cations moving toward the positive electrode and anions moving toward the negative electrode.
4. Cations pass through the cation membrane and flow out of the resin/membrane.
5. Anions pass through the anion membrane and flow out of the resin/membrane.
6. The concentrated ions are discharged from the wastewater path.
7. Free ion water flows out of the resin/membrane.

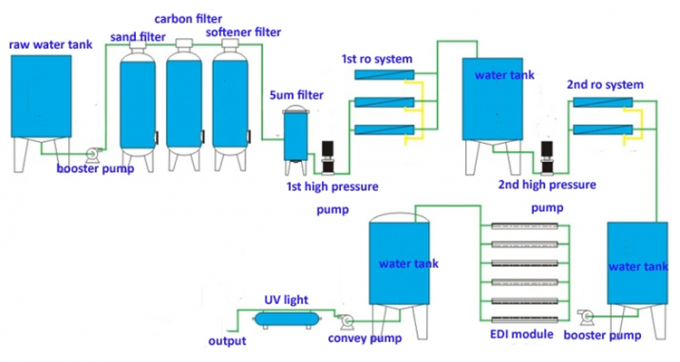

Working process:
Raw water tank →Feed water pump → multi-media filter(sands filter) → active carbon filter → water softener(or inhibitor dosing)→PP filter→ high-pressure pump →RO system→PH adjust system →RO tank →EDI booster pump →UV sterilization →PP filter→ EDI system →EDI tank → transfer pump → outlet water
FEED WATER SPECIFICATIONS
- Feed Water Conductivity Equivalent, including CO2
and Silica: < 40 µS/cm - Feed Water Source: RO permeate
- Temperature: 41 – 113 °F (5 – 45 °C)
- Inlet Pressure: = 100 psi (6.9 bar)
- Maximum Total Chlorine (as Cl): < 0.02 ppm
- Iron (as Fe): < 0.01 ppm
- Manganese (as Mn): < 0.01 ppm
- Sulfide (S2-): < 0.01 ppm
- pH: 4 – 11
- Total Hardness (as CaCO3): < 1.0 ppm
- Dissolved Organics (TOC as C): < 0.5 ppm
- Silica (SiO2): < 1.0 ppm
| Features: | Benefits of EDI: |
|
|
| The ideal applications for an Electro-Deionization Unit include: | ||
|
|
|
