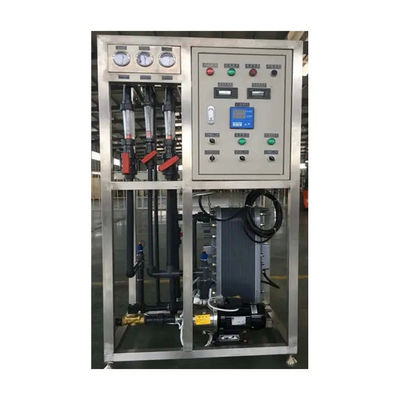

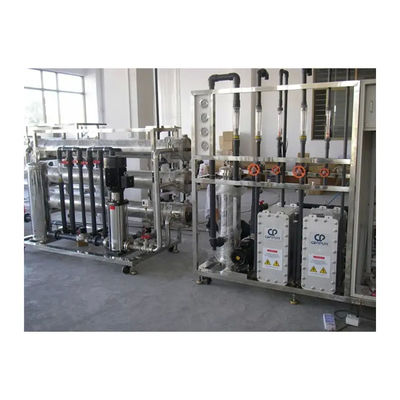

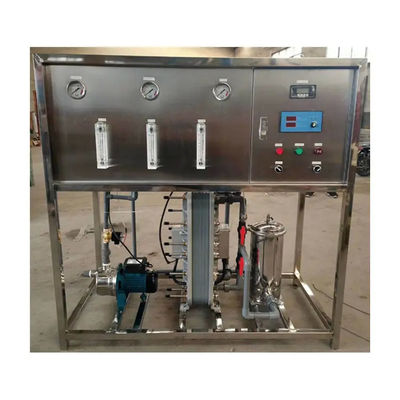

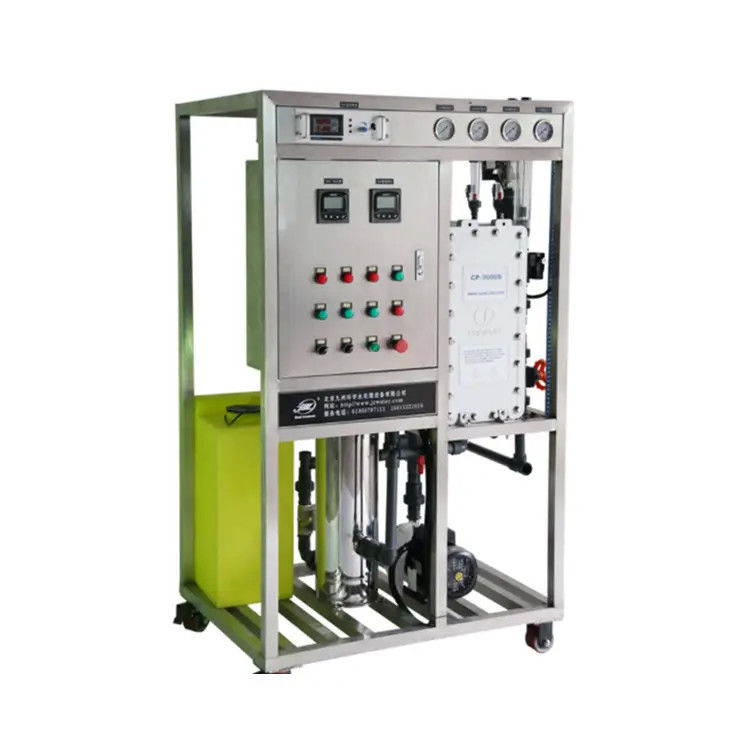

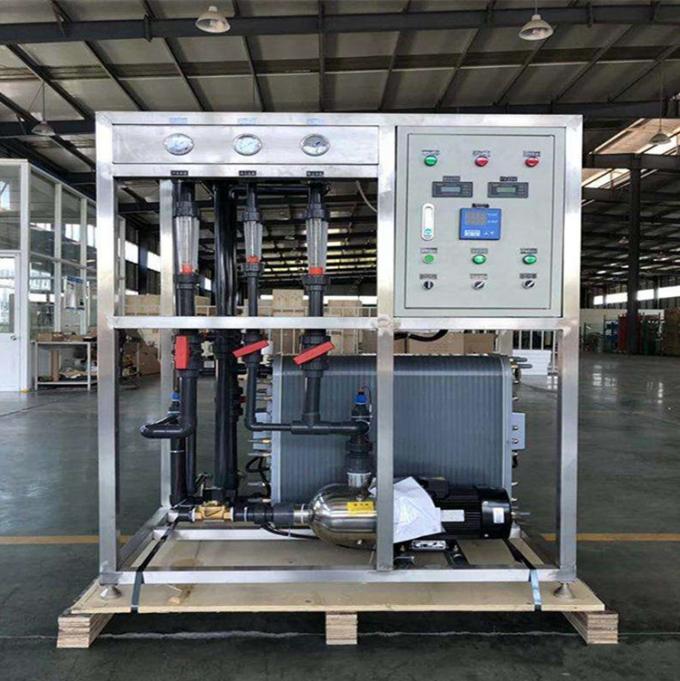

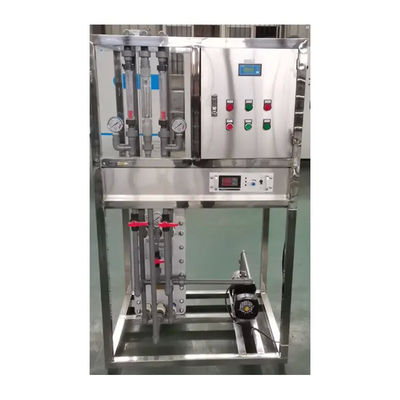

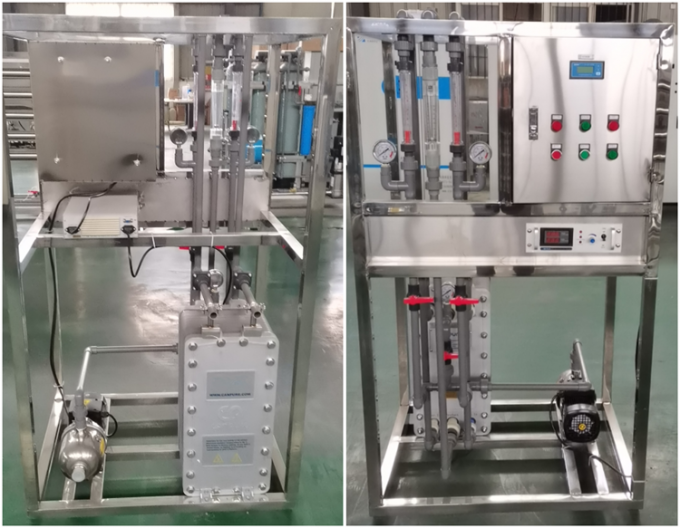

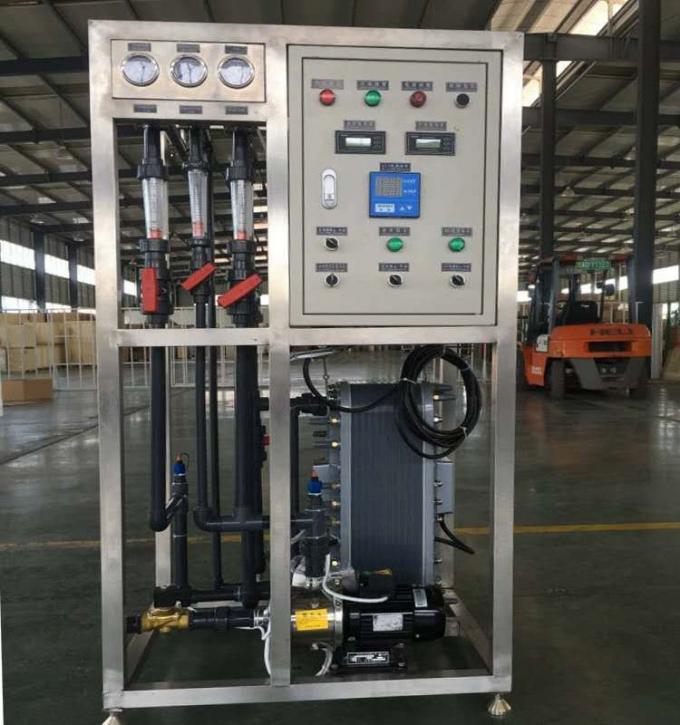

Purifier 600 RO Filtration EDI Ultrapure Water Industrial Reverse Osmosis Plant System
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Ultrapure Water Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Water Source: | Reverse Osmosis Water Production, Conductivity ≤ 20μS / Cm | Inlet Pressure: | 0.2-0.6Mpa |
|---|---|---|---|
| Pump Material: | Sus304 | Hardness: | Less Than 0.5PPM (calculated As SiO2) |
| Temperature: | 5 ° C -38 ° C | Key Words: | EDI Ultrapure Water SYSTEM |
| Operation: | Automatic And Manual | Capacity: | 250L~10000L |
| Technology Use: | Revers Osmosis+EDI | ||
| Highlight: | EDI industrial reverse osmosis plant,Ultrapure Water industrial reverse osmosis plant,edi Ultrapure water treatment |
||
Product Description

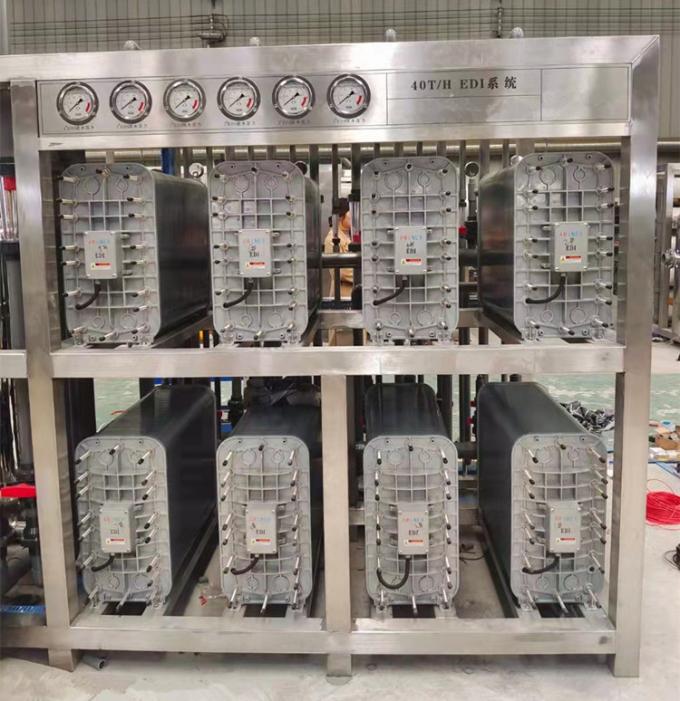

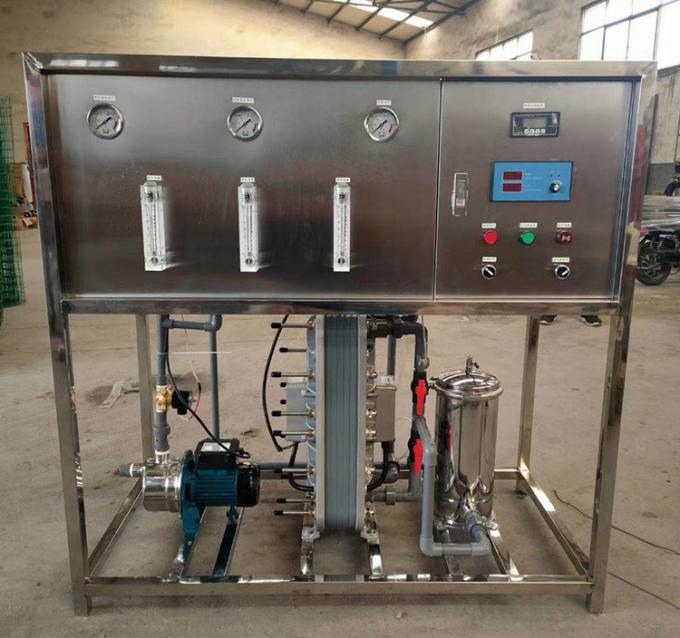

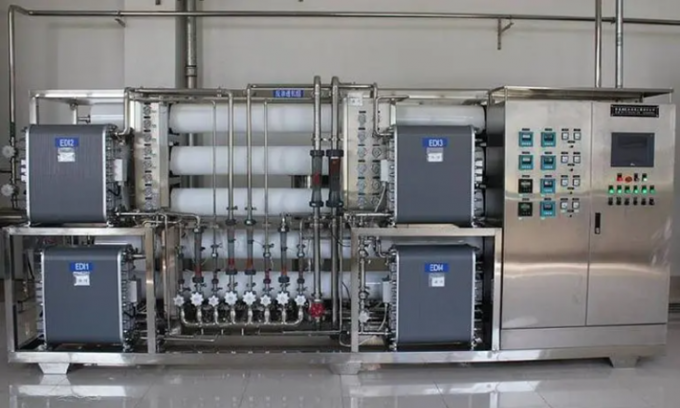

Purifier 600 RO Filtration Ultrapure Water Machine EDI Ultrapure Water System

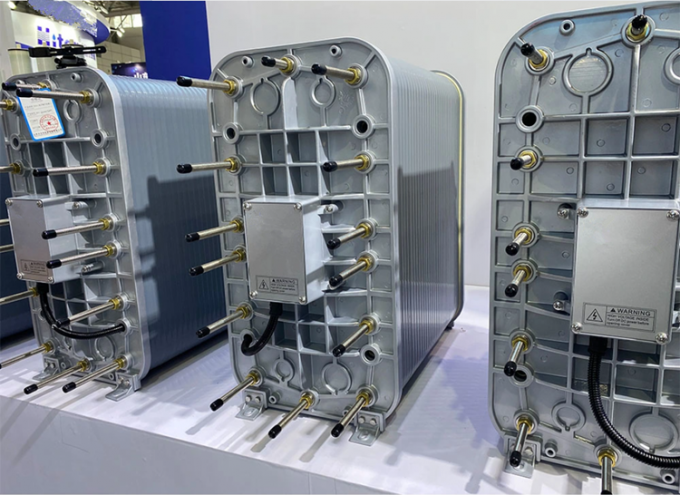

The EDI system is a revolutionary technology in water treatment technology. This technology uses an electric regeneration ion exchange desalination process to replace the traditional mixed ion exchange desalination process, and achieves a higher desalination effect through ion exchange resin and selective ion membrane. , combined with the reverse osmosis process, the water quality reaches a high-standard water production volume of 10-150M.CM.
Working Principle
1. Raw water enters the EDI system, with the main part flowing into the resin membrane and the other part flowing out along the outside of the membrane to wash away the ions outside the membrane.
2. The resin captures the ions dissolved in the water.
3. The captured ions move under the action of the electrodes, with cations moving toward the positive electrode and anions moving toward the negative electrode.
4. Cations pass through the cation membrane and flow out of the resin/membrane.
5. Anions pass through the anion membrane and flow out of the resin/membrane.
6. The concentrated ions are discharged from the wastewater path.
7. Free ion water flows out of the resin/membrane.
Working process:

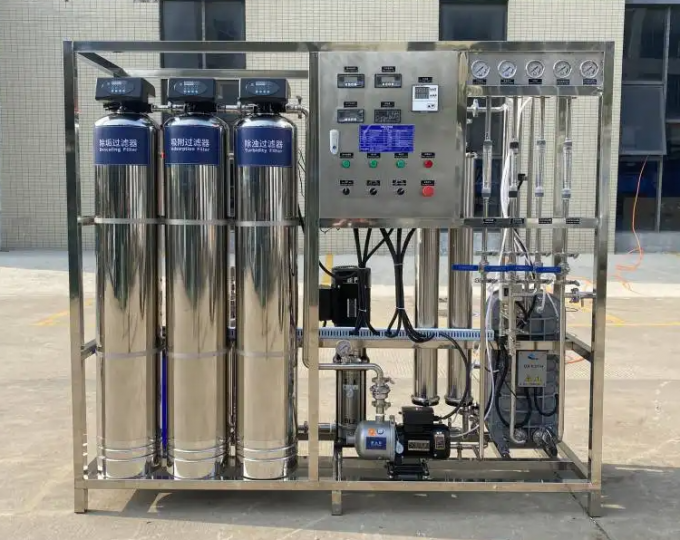

Raw water tank →Feed water pump → multi-media filter(sands filter) → active carbon filter → water softener(or inhibitor dosing)→PP filter→ high-pressure pump →RO system→PH adjust system →RO tank →EDI booster pump →UV sterilization →PP filter→ EDI system →EDI tank → transfer pump → outlet water
EDI water conditions
Technical Parameters
| Water source | reverse osmosis RD water production, conductivity ≤ 20μS / cm |
| Inlet pressure | 0.2-0.6Mpa |
| Hardness | less than 0.5PPM (calculated as siO2) |
| Temperature | 5 ° C -38 ° C |
FEED WATER SPECIFICATIONS
- Feed Water Conductivity Equivalent, including CO2
and Silica: < 40 µS/cm - Feed Water Source: RO permeate
- Temperature: 41 – 113 °F (5 – 45 °C)
- Inlet Pressure: = 100 psi (6.9 bar)
- Maximum Total Chlorine (as Cl): < 0.02 ppm
- Iron (as Fe): < 0.01 ppm
- Manganese (as Mn): < 0.01 ppm
- Sulfide (S2-): < 0.01 ppm
- pH: 4 – 11
- Total Hardness (as CaCO3): < 1.0 ppm
- Dissolved Organics (TOC as C): < 0.5 ppm
- Silica (SiO2): < 1.0 ppm
| Features: | Benefits of EDI: |
|
|
| The ideal applications for an Electro-Deionization Unit include: | ||
|
|
|
