RO Water EDI Water Purification System For Manufacturing Plant Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | EDI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Industries: | Manufacturing Plant, Food & Beverage Factory, Home Use, Construction Works , Energy & Mining | Machine Core Components: | Pressure Vessel, Pump |
|---|---|---|---|
| Machine Name: | Electrodeionization EDI RO Purified Ultrapure Water Treatment Systems | Machine Material: | FRP+UPVC/Stainless (Tanks) Customized |
| Machine Maximum Total Chlorine (as Cl): | < 0.02 Ppm | Machine Type: | Pre-treatment+RO+EDI (Customized) |
| Machine Voltage: | 110V / 220V / 380V,50~60Hz | Machine Working Pressure: | 0.2~0.3Mpa |
| Machine Conductivity: | 18MΩ*CM | ||
| Highlight: | RO edi water system,reverse osmosis edi water system,reverse osmosis water treatment plant manufacturers |
||
Product Description

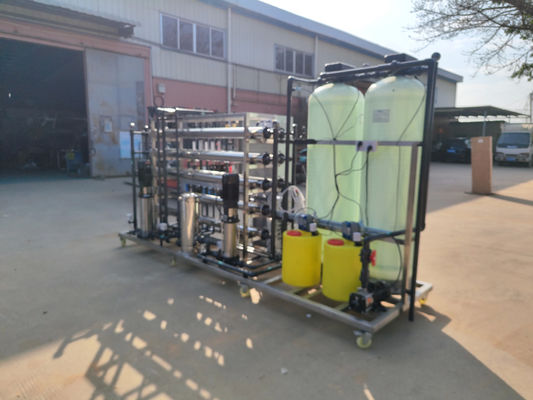

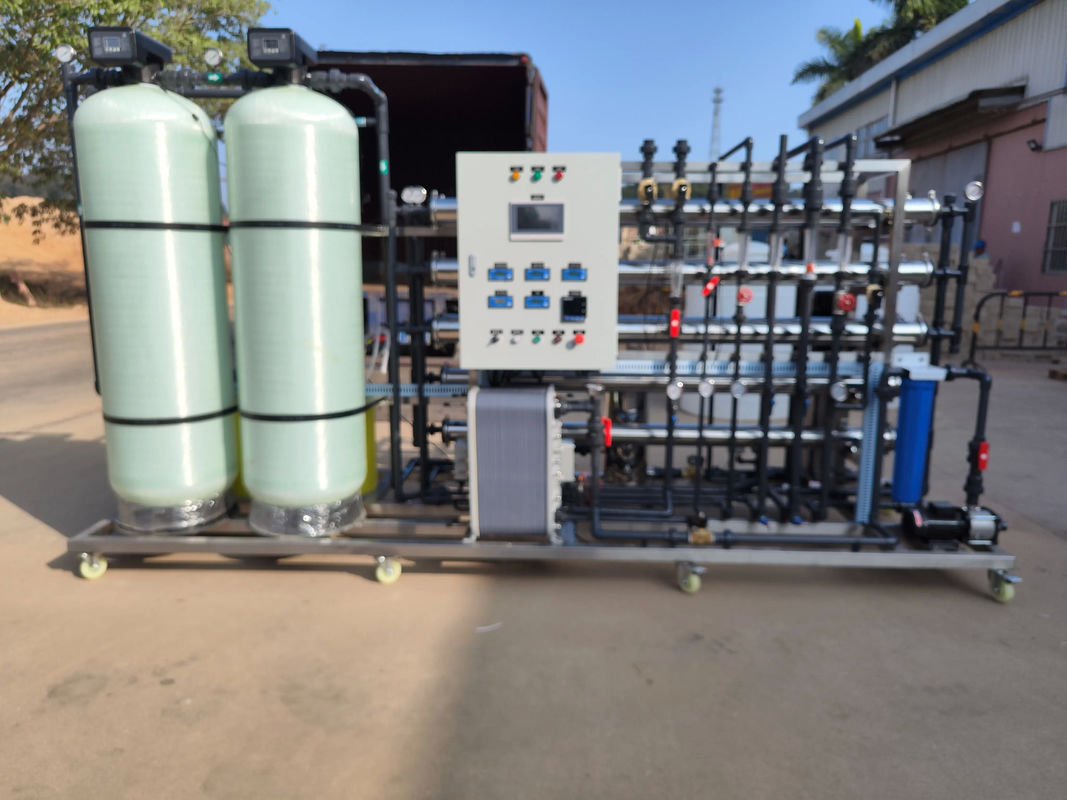

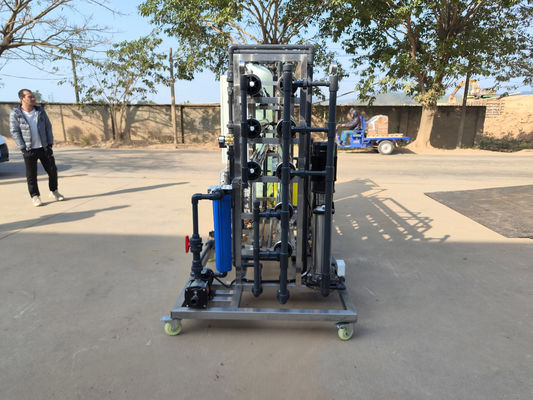

1500LPH RO water Ultrapure Water Machine EDI Water Purification System for manufacturing plant treatment
EDI CEDI (electrodeionization) is a process that uses ion exchange resin to absorb ions from a dilute water flow, and then transports the absorbed ions through an ion exchange membrane to a concentrated water flow under the action of an applied electric field. During this process, the ion exchange resin does not need to be regenerated by acid or alkali.
This new technology can replace traditional electrode ionization (DI) equipment to produce ultrapure water with a resistance of up to 18 MΩ-cm according to your raw water quality and product water requirements. Our professional engineers can fully customize and design it to meet your needs business needs.
Advantage:
1. The water quality is fresh, the treatment process is transparent, clean and hygienic, and meets the national standard requirements
2. High technical content, stable operation, easy maintenance and long service life
3. Can be designed according to customer requirements
4. Competitive prices and higher profits
FEED WATER SPECIFICATIONS
- Feed Water Conductivity Equivalent, including CO2
and Silica: < 40 µS/cm - Feed Water Source: RO permeate
- Temperature: 41 – 113 °F (5 – 45 °C)
- Inlet Pressure: = 100 psi (6.9 bar)
- Maximum Total Chlorine (as Cl): < 0.02 ppm
- Iron (as Fe): < 0.01 ppm
- Manganese (as Mn): < 0.01 ppm
- Sulfide (S2-): < 0.01 ppm
- pH: 4 – 11
- Total Hardness (as CaCO3): < 1.0 ppm
- Dissolved Organics (TOC as C): < 0.5 ppm
- Silica (SiO2): < 1.0 ppm
| Features: | Benefits of EDI: |
|
|
| The ideal applications for an Electro-Deionization Unit include: | ||
|
|
|
About Us
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment quipment design, manufacturing, trading and shipment served for main industrial sectors.
HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.
Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water rever osmosis (BWRO), ultrafiltration (UF)system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners. So far, our company has become a major water treatment equipment supplier for food and beverage industry, pharmaceutical industry, chemical industry, electric power industry, urban water supply industry, municipal and industrial wastewater treatment and more industries, as well as being an exporter to more than 20 countries and regions in Asia, Europe, the Americas, Africa, etc.
OUR CLIENTS
INDUSTRIES SERVED
PRODUCTION SYSTEM
Our production system consist of a list of industry-specialized partnership factories accross China. Some of them singularly cover an area of over 10,000 square meters, including 5,000 square meters of workshop and warehouse and 1,500 square meters of office buildings. All of our technical staff has more than 10 years of experience in the design of water treatment systems, so we are able to provide the perfect solution for all kinds of water purification and sewage treatment applications.
Since the establishment, the Company has always regarded quality as the life of our business. We choose the best components only for the production of various water treatment systems. Our systems are easy to use and maintain, and they stays highly reliable even under toughest conditions.
Our FACTORY
