Flow Range 1.3 – 4.0 M3/Hr 33m² PVDF DOW UF Membranes Modules SFP-2660 / SFD-2660
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP-2660 / SFD-2660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Material: | PVDF(Polyvinylidene Fluoride) | Flow Configuration: | Outside In, Dead End Flow |
|---|---|---|---|
| Max Operating Air Scour Flow: | 12 Nm3/hr | Expected Filtrate SDI: | ≤2.5 |
| Max. Operating TMP: | 2.1 Bar | Operating PH: | 2-11 |
| Diameter: | 6 Inch | Temperature: | 1-40ºC |
| Highlight: | PVDF ultrafiltration membrane for wastewater treatment,Ultrafiltration Membrane System,Ultrafiltration Membranes For Water Treatment |
||
Product Description
Flow range 1.3 – 4.0 m3/hr 33m² PVDF DOW UF Membranes Modules SFP-2660 / SFD-2660
The DOW™ ultrafiltration (UF) modules are made from high strength, hollow fiber membranes that have excellent features and benefits:
-
High strength: The DOW™ UF modules are made from durable, high strength hollow fiber membranes that can withstand high pressures and temperatures, making them ideal for a wide range of applications.
-
Excellent filtration performance: The membranes in DOW™ UF modules have a tight pore size distribution, allowing for efficient removal of particles, bacteria, and other contaminants from water and other liquids.
-
Easy to clean: The design of the DOW™ UF modules allows for easy cleaning and maintenance, ensuring long-lasting performance and efficiency.
-
Versatile applications: The DOW™ UF modules can be used in a variety of applications, including water and wastewater treatment, food and beverage processing, and industrial processes.
-
Cost-effective: The DOW™ UF modules offer a cost-effective solution for filtration needs, with low operating and maintenance costs compared to other filtration technologies.
Product Specifications

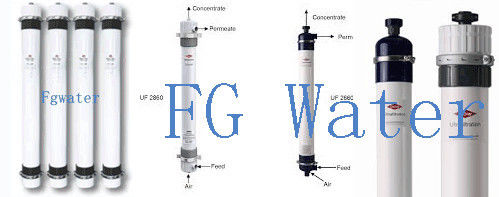

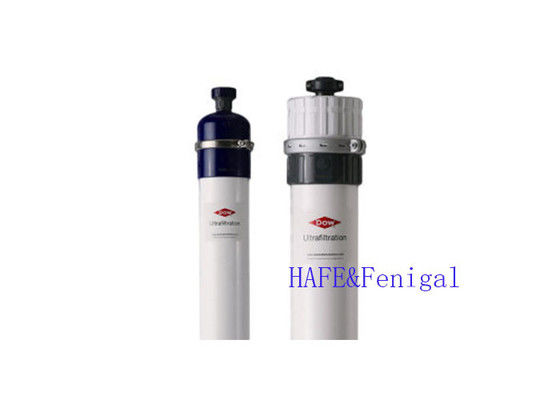

Figure 1: SFP and SFD 2660 (6-inch diameter)
Figure 2
Operating Parameters
Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed.
