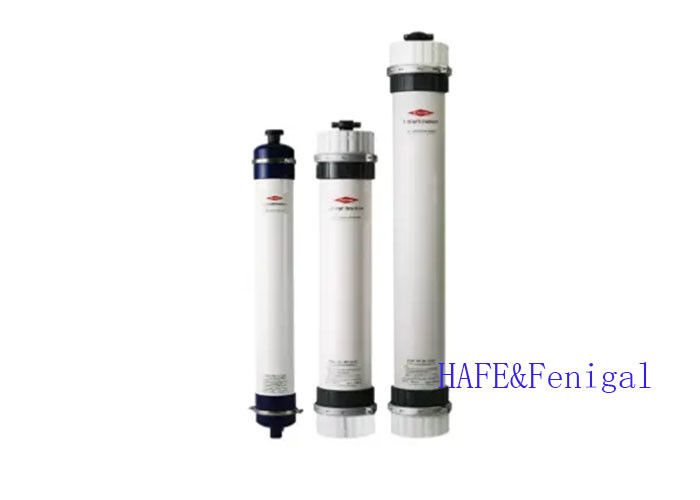

3.1 – 9.3 M3 /hr 77 M² PVDF DOW UF Membranes Module SFP-2880 / SFD-2880
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP-2880 and SFD-2880 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Flow Range Per Module: | 3.1 – 9.3 M3 /hr | Membrane Area: | 77 M² |
|---|---|---|---|
| Nominal Pore Diameter: | 0.03 µm | Membrane Material: | PVDF |
| Filtrate Flux: | 40-120 | Diameter: | 8 Inch |
| Flow Direction Settings: | External Pressure Structure, Dead End Filtration | Max. Operating TMP: | 2.1 Bar |
| Max. Inlet Module Pressure: | 6.25 Bar | Operating PH: | 2-11 |
| Flow Configuration: | Outside In, Dead End Flow | Certifications: | ISO 9001, NSF, CE |
| Highlight: | DOW Ultrafiltration Membranes,Ultrafiltration Membrane System,Ultrafiltration Membranes For Water Treatment |
||
Product Description
3.1 – 9.3 m3 /hr 77 m² PVDF Dow Ultrafiltration Membrane Modules SFP-2880 / SFD-2880
Features
Key features of the DOW UF SPD/SPF2880 membranes include:
- High-efficiency filtration: This ultrafiltration membrane can efficiently remove suspended matter, particles, bacteria, viruses, and organic matter from water. They are able to provide reliable water treatment and separation solutions.
- Excellent separation performance: DuPont Dow SFD2880 ultrafiltration membrane has excellent separation performance and can effectively separate particles and molecules of different sizes. This makes it widely used in liquid separation, concentration and purification processes.
- High flux and flow rate: DuPont Dow SFD2880 ultrafiltration membranes are designed to achieve high flux and high flow rate. This means that they can handle a large amount of liquid and complete the filtration and separation process in a shorter time.
- Good chemical resistance: This ultrafiltration membrane is made of high-quality materials and has good chemical resistance. They are resistant to a variety of chemicals and solvents and can be used in various environmental conditions.
- Long life and durability: DuPont Dow SFD2880 ultrafiltration membranes have a long service life and excellent durability. They are carefully designed and manufactured to provide stable performance in different applications.
- Multiple application fields: The ultrafiltration membranes are widely used in water treatment, food and beverage industry, pharmaceuticals, biotechnology, chemical industry, electronics and other fields. They can meet the needs of different industries and provide efficient separation and purification solutions.
Product Specifications

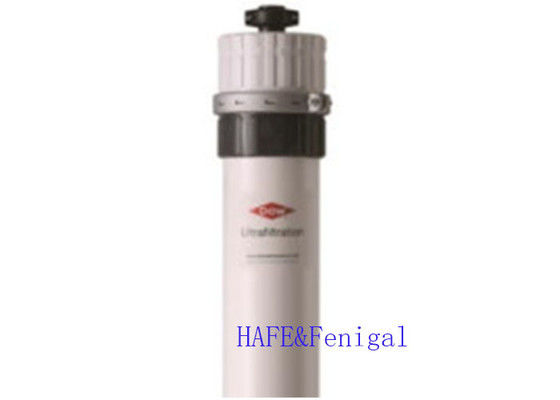

Figure 1: SFP and SFD 2880 (8-inch diameter)
Operating Parameters
Ensuring that the UF system is properly started is critical to preparing the membrane for operation and preventing potential membrane damage. Following the correct startup sequence is essential to maintaining system parameters within design specifications, helping to achieve water quality and productivity goals.
Before beginning the startup procedure, membrane preconditioning, membrane module installation, instrumentation calibration, and system checks must be completed per the guidelines outlined in the product technical manual.
To prevent membrane damage, sudden pressure changes during startup, shutdown, cleaning, or other sequences should be avoided. Before startup, flush the UF system thoroughly to eliminate any remaining shipping solution. In addition, purge any residual air from the system before commencing operation.
Start the unit manually, with the goal of achieving an initial permeate flow rate of 60% of the design capacity. Depending on the application, it may be necessary to discard the permeate obtained during initial operation. Refer to the product technical manual for detailed instructions.
General information
If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty (Form No. 795-00027) will be null and void.
To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
Regulatory note NSF/ANSI 61 certified drinking water modules require specific conditioning procedures prior to producing potable water. Please refer to the product technical manual flushing section for specific procedures. Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use and sale.
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
