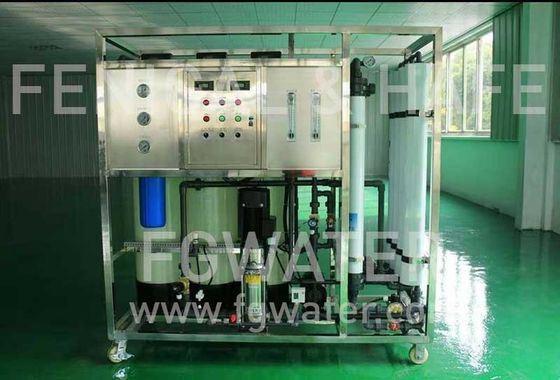

Commercial 5000LPH Brackish Water Filtration System

Commercial 5000LPH Brackish Water Filtration System

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/UL/NSF etc.
Model Number: BWRO4-14

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 50 set per month
Get Best Price Contact Now

Detail Information

Technology: Brackish Water Reverse Osmosis Permeate: 5000LPH
Feed TDS/ppm: <5,000 Water Temp.: 5~35˚C
PH: 4~9 TSS/mg/L: <5
Silt Density Index: <3 Material: SS304/SS316L,carbon Steel
Voltage: 380V,415V,220V,can Be Customized Application: Water Purification,Filtration,pharmceutical,drinking Water,food
Control: Electronic,Manual/PLC Ro Membrane: Hydranautics Or DOW,4040
High Light:

5000LPH brackish water filtration system


415V brackish water filtration system


5000LPH salt water filtration system

Product Description

Commercial 5000LPH Brackish Water Filtration System

Commercial 1000LPH Salt Water Filtration Brackish Water Reverse Osmosis System


(1), high salt rejuction:99%, and high recovery rate:75%.

(2), CIP cleaning system,automatic flushing when systems stops, thus prolong the membrane’s performance life.

(3), voltage protection,lack water protection, full water stop, emergency online monitoring the security of equipment operation.

(4), PLC control

Water level ,pumps ,valves ,conductivity ,PH ,flow ,pressure get monitored and displayed in front of you.

(5), various combination of purify process.

RO,RO+RO,RO+EDI,RO+EDI+UF,etc..according to the water quality you need.

(6), core components imported for world famous brand, Filmtec , Dow, can customized, you name.


How does reverse osmosis system work?

The principle of reverse osmosis is the water and the solution separated by the permeable membrane, the water is to the solution phase infiltration, and finally to balance, between the two phases osmotic pressure. If the solution phase is greater than the osmotic pressure, the water in the solution phase will penetrate in the opposite direction to the water. Raw water in sufficient pressure, through the osmotic membrane and become pure water, there is no water through the membrane dissolved, suspended solids discharged through the sewage outlet.

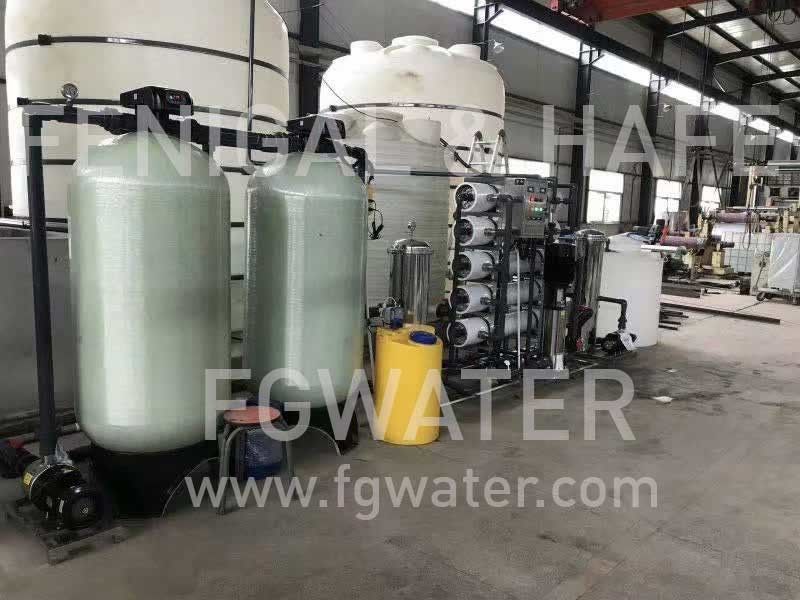

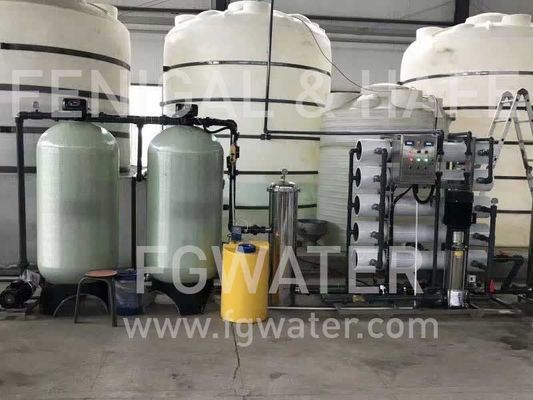

Salt Water Filtration Systems Process


Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter ->Antiscale dosing system-> Active carbon filter-> High pressure pump ->Security filter -> RO equipment->Pure water tank


Some parts function:

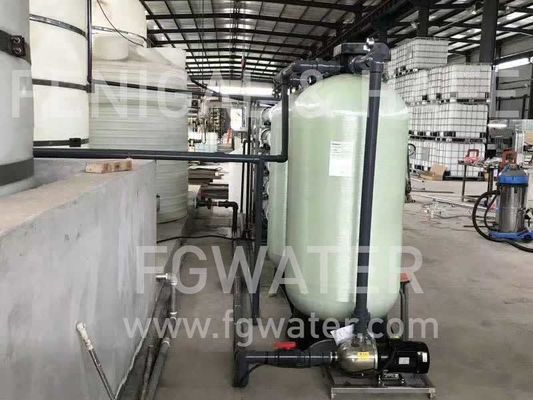

1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...


Salt Water Filtration Systems Application


Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......











Permeate flow rate m3/day 10 15 25 30 35 50
Permeate recovery rate % 40~70 (varies according to feed water quality and RO configuration)
Ambient design temperature °C 1~35 (1~43 with optional air conditioned container)
Feed water inlet pressure kPa min. 200~500 max. (flooded suction only with optional low pressure feed pump)
Permeate discharge pressure kPa ~40
Brine discharge pressure kPa ~40
Power supply -

AC 120V, 1 Phase, 60Hz

AC 220~240V, 1 Phase, 50Hz

380~460V, 3 Phase, 50/60Hz

Power consumption (approx.) kW 2 2 2 3 3 5
Control panel IP rating - IP50
Skid dimensions (approx.) mm 1,500W x 1,700H x 680D
Skid weight (approx.) kg 150 160 170 180 190 200
UV disinfection (optional) UV dose >40 mJ/cHM @ 90% UVT
Distribution pump set (optional) m3/hr @ 300kPa 1.04 1.56 2.6 3.13 3.65 5.21
