How Do Reverse Osmosis Filter Systems Work & What Do They Do?
If you're looking for a water filter that will provide outstanding drinking water for your home or factory, Reverse Osmosis (RO) filtration is one of the most popular and best water filtration methods available. In simple terms, reverse osmosis works as water is forced across a semi-permeable membrane, leaving contaminants behind that are flushed down the drain. The clean drinking water collects in a holding tank.
Why is Reverse Osmosis a Good Water Filtration Option?
We've been in the water filtration business since 2000 and have found Reverse Osmosis filtration to consistently be one of the best ways to achieve superior water for the home and business.
||BWRO-6TPH RO Water Treatment System
||6T (Customized from 500L/H to 200T/H)
||More Than 97%
||High quality U-PVC (Stainless steel for option)
||304stainless steel (carbon steel,316stainless steel for option)
|Pre-treatment vessel material
||FRP vessel ( stainless steel or carbon steel for option)
||DuPont (Vontron or GE for Option)
|RO membrane housing
||FRP or stainless steel
|Raw water pump&high pressure pump
||Nanfang, Grundfos and others for optional

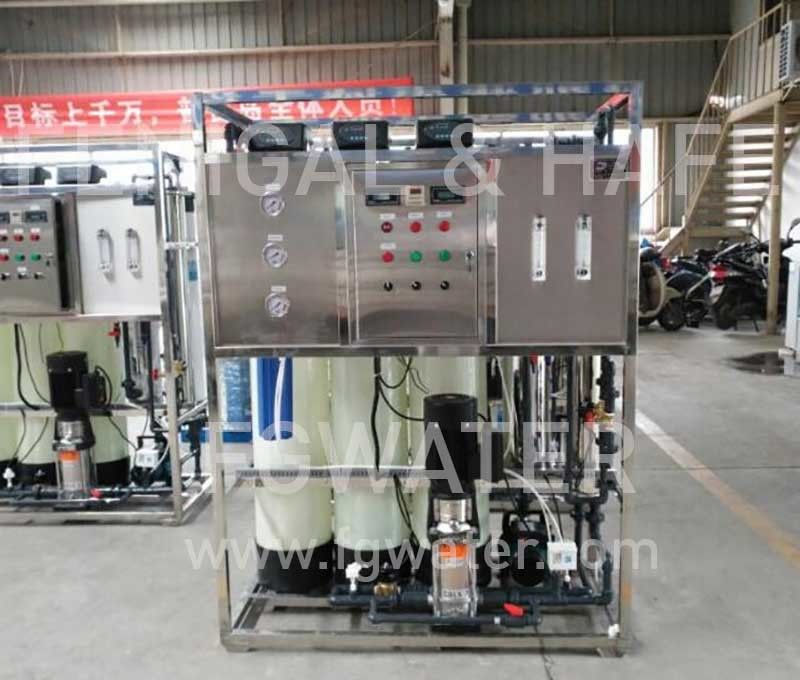

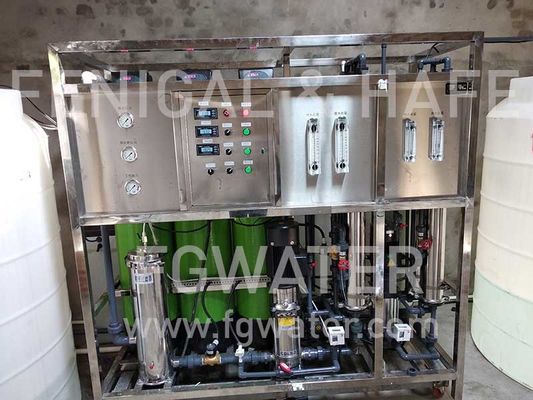

Description of RO unit
This system adopts mechanical and carbon filtration as pre-stage treatment. The device removes the sediments, organic substance, colloid, bacteria and other impurities in water. And the water can be pre-desalted by program control system. Most of the dissolved salt species material, bacteria and heat source can be removed by this method. Then use ozone preservation device to make sure that the water quality is up to the standard.
This system has both automatic and manual mode. The self-set program control system can implement the automatic running mode by regulating the transducer and pressure controller.
Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
