200GPM Ion Exchange Water Purification System , EDI Plant Water Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | IX-3A-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Technology: | Pressurized Filtration | Material: | Carbon Steel/FRP/stainless Steel |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Water Flow Rate: | Up To 200 M3/day.vessel | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Surface, Underground Water, Sewage Water Treatment | Size: | Dia.20cm~180cm |
| Control: | Electronic,Manual/PLC | ||
| High Light: | 200GPM Ion Exchange Water Purification System,415V Ion Exchange Water Purification System,200GPM edi plant water treatment |
||
Product Description

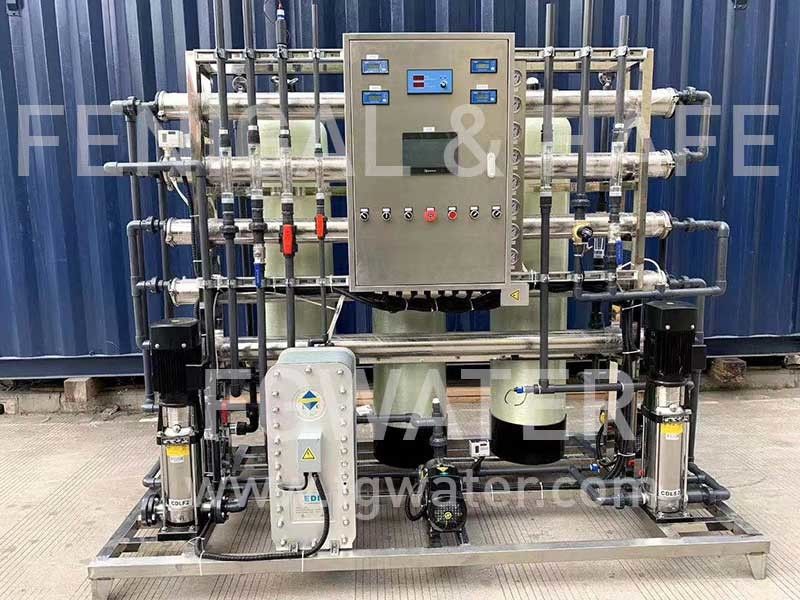

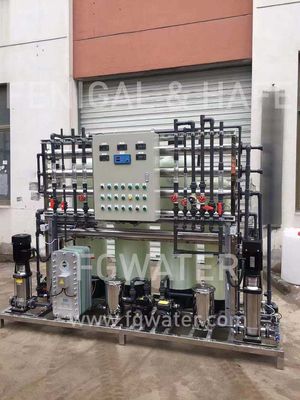

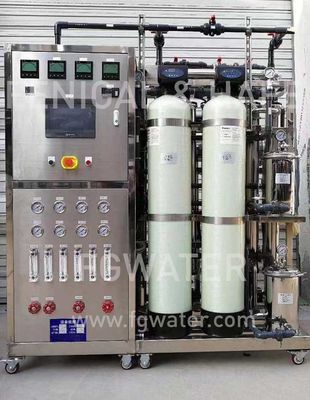

200GPM Ion Exchange Water Purification System , EDI Plant Water Treatment
Electro-deionizationwater purification system for Power Generation, Pharmaceutical, Semiconductor 25GP~200GPM
The Electro-Deionization process is the latest technology in deionized water treatment to achieve ultrapure water.
EDI uses ion exchange resins in the presence of a DC voltage potential to remove cation and anion contaminants from the feed water supply. Ion selective membranes are then used within the modules to continuously remove these contaminants and carry them out in a small concentrate stream.
The voltage applied across the cell allows for the electrochemical "splitting" of water into hydrogen (H+) and hydroxide (OH-) ions within the ion exchange resins resulting in constant regeneration without the addition of chemicals, wastewater neutralization/disposal, and shutdown time. This results in a major advantage over the operation of traditional, regenerable Mixed-Bed Deionization and Service Exchange DI Systems.
The following are just a few of the industrial applications that
can benefit from purified water produced by EDI systems:
• Power Generation
• Chemical Manufacturing
• Electronics / Semiconductor
• Industrial Process Water
• Boiler Feed
• Research Lab Facilities
Operating Parameters
• Nominal Recovery: 90–95%
• EDI Water Quality: 15–18 meg-ohm
• Feedwater Requirements: See table on reverse side
• Operating Temperature: 50–100° F
• Maximum Inlet Pressure: 100 psig
• Minimum Inlet Pressure: 60 psig
• Expected Pressure Drop: 30–40 psig
• Electrical Requirement: 460 VAC, 3-phase, 60 Hz. 120 VAC, 1-phase, 60 Hz.
Materials of Construction
• Skid Frame: Epoxy-coated carbon steel
• EDI Housings: FRP
• System piping: Sch 80 PVC
• EDI cell tubing: Polyethylene
SYSTEM SPECIFICATIONS
| MODEL | MEDI-25 | MEDI-50 | MEDI-100 | MEDI-150 | MEDI-200 |
| EDI WATER PRODUCTION RATE (GPM) | 25 | 50 | 100 | 150 | 200 |
| QUANTITY OF EDI CELLS | 1 | 2 | 4 | 6 | 8 |
| MAXIMUM CURRENT LOAD at 350 VDC (AMP) | 6 | 12 | 24 | 36 | 48 |
| INLET FEED WATER RATE (GPM) | 28 | 55 | 110 | 166 | 220 |
| MAXIMUM WATER TO DRAIN (GPM) | 3 | 5 | 10 | 16 | 20 |
| INLET FEED CONNECTION SIZE | 2” | 2” | 3” | 3” | 4” |
| PRODUCT CONNECTION SIZE | 2” | 2” | 3” | 3” | 4” |
| DRAIN CONNECTION SIZE | 3/4” | 3/4” | 1” | 1” | 1” |
| ELECTROLYTE FLUSH CONNECTION | 1/2” | 1/2” | 3/4” | 3/4” | 3/4” |
| SYSTEM DIMENSIONS (LxWxH) | 92”x48”x73” | 100”x48”x73” | 133”x48”x73” | 133”x48”x84” | 133”x48”x84” |
| SHIPPING WEIGHT (LBS) | 2,200 | 2,500 | 3,000 | 3,750 | 4,400 |
FEEDWATER REQUIREMENTS
| PARAMETERS | REQUIREMENT |
| FEED CONDUCTIVITY (INCLUDING CO2) | < 10 µs/cm |
| pH | 7-10 |
| SILICA (REACTIVE) | < 0.1 ppm |
|
TOTAL HARDNESS AS CaCO3 TOC |
< 0.1 ppm |
| < 0.1 ppm | |
| HEAVY METALS (Fe, Mn etc.) | < 0.01 ppm |
| FREE CHLORINE AS Cl2 | < 0.05 ppm |
• Standard specifications are based on typical applications and incoming water quality from a Two-Pass Reverse Osmosis (RO) System. Specifications may be altered to meet certain site conditions and changes in incoming and/or product water quality requirements.
• Dimensions and shipping weights are estimated only. Actual dimensions and weights differ dependant upon the final system design and options selected.
