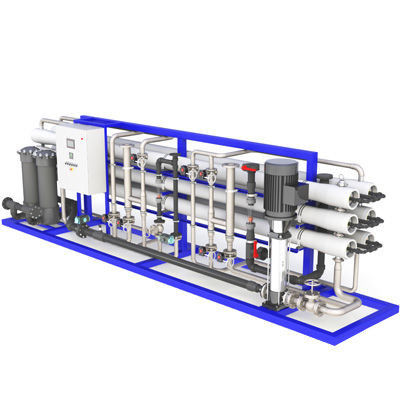

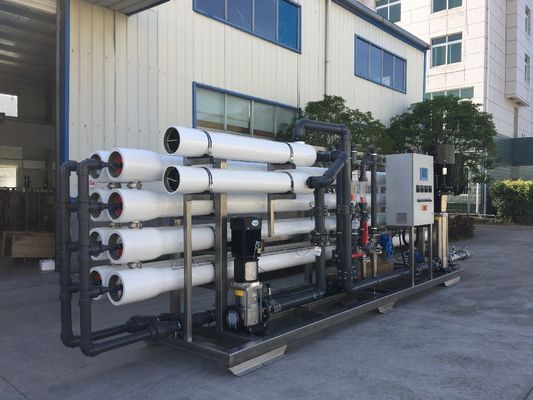

BWRO-L Skid Mount 96.8TPH Brackish Water RO System
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/UL/NSF etc. |
| Model Number: | BWRO-L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Brackish Water Reverse Osmosis | Design: | Skid Mount |
|---|---|---|---|
| Recovery Rate: | 40~70% | Feed TDS/ppm: | <5,000 |
| Water Temp.: | 5~35˚C | PH: | 4~9 |
| TSS/mg/L: | <5 | Silt Density Index: | <3 |
| Free Chlorine Mg/L: | 0 | Dissolved Iron Mg/L: | <0.1 |
| Warranty: | 1 Year | Material: | SS304/SS316L,carbon Steel |
| Capacity: | 0.5-100m3/h | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Water Purification,Filtration,pharmceutical,drinking Water,food | Size: | Depends,1750*550*1650mm |
| Type: | Reverse Osmosis System | Function: | Water Purifying, Desalination |
| Desalination Rate: | 99%,99.7% | Control: | Electronic,Manual/PLC |
| Ro Membrane: | Hydranautics Or DOW,4040 | Pump: | CNP / Grundfos,CNP |
| Highlight: | 96.8TPH brackish water ro system,BWRO-L brackish water ro system,96.8TPH salt water ro system |
||
Product Description
BWRO-L brackish water reverse osmosis treatment system 16TPH~96.8TPH
BWRO-L Series Reverse Osmosis Systems have been engineered for capacities ranging from 16m3/h to 108m3/h (Feed TDS < 2500 ppm)
Features
Vontron RO membrane
ASME certified membrane housing
CNP boost pump SS316L
(with ABB VFD & High pressure pump soft start)
SS316 high pressure piping
Control box IP54 (painted carbon steel)
Control system (Siemens PLC, Weinview HMI)
Tank level control & Auto flush
Pretreatment lockout control backup
Benefits
Fully equipped and customizable
Individually tested and preserved
Expandable and skid mounted
Low operation and maintenance costs
Components easily accessible
Easy maintenance and servicing
Pre-plumbed, wired and assembled
1-year limited warranty
| Model | Capacity | Recovery |
| BWRO-L-16 | 16m³/hr | 75% |
| BWRO-L-20 | 19.7m³/hr | 75% |
| BWRO-L-24 | 24m³/hr | 75% |
| BWRO-L-30 | 29.9m³/hr | 75% |
| BWRO-L-36 | 32.5m³/hr | 75% |
| BWRO-L-48 | 48m³/hr | 75% |
| BWRO-L-60 | 57.8m³/hr | 75% |
| BWRO-L-72 | 65m³/hr | 75% |
| BWRO-L-90 | 86m³/hr | 75% |
| BWRO-L-108 | 96.8m³/hr | 75% |
