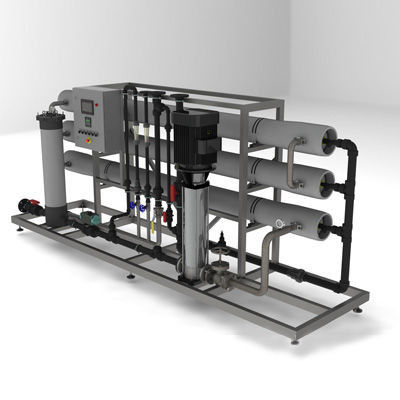

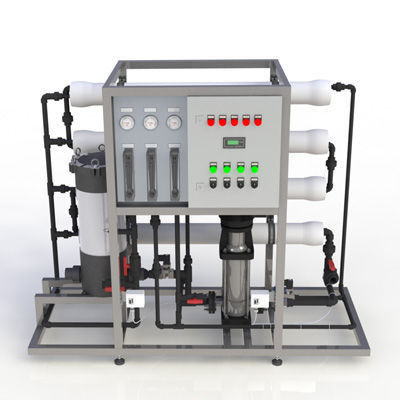

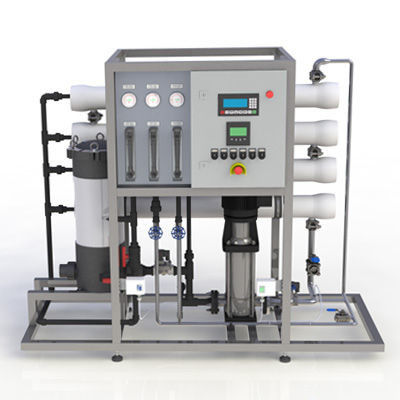

BWRO-P412 18000GPD Brackish Water Reverse Osmosis Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/UL/NSF etc. |
| Model Number: | BWRO-P412 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Brackish Water Reverse Osmosis | Design: | Skid Mount |
|---|---|---|---|
| Recovery Rate: | 40~70% | Feed TDS/ppm: | <5,000 |
| Water Temp.: | 5~35˚C | PH: | 4~9 |
| TSS/mg/L: | <5 | Silt Density Index: | <3 |
| Free Chlorine Mg/L: | 0 | Dissolved Iron Mg/L: | <0.1 |
| Warranty: | 1 Year | Material: | SS304/SS316L,carbon Steel |
| Capacity: | 0.5-100m3/h | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Water Purification,Filtration,pharmceutical,drinking Water,food | Size: | Depends,1750*550*1650mm |
| Type: | Reverse Osmosis System | Function: | Water Purifying, Desalination |
| Desalination Rate: | 99%,99.7% | Control: | Electronic,Manual/PLC |
| Ro Membrane: | Hydranautics Or DOW,4040 | Pump: | CNP / Grundfos,CNP |
| High Light: | 18000GPD brackish water reverse osmosis plant,BWRO-P412 brackish water reverse osmosis plant,SS304 salt water purification system |
||
Product Description
BWRO-P412 18000GPD Brackish Water Reverse Osmosis Plant
BWRO-P412 water reverse osmosis treatment system 6,000~18,000gpd
Our commercial ro systems will take care of removing unwanted dissolved solids from your tab, brackish or well water through the utilization of highly efficient reverse osmosis membranes. Less wastewater, low energy consumption, high flow rates and contaminant rejection at competitive prices makes our commercial ro systems the most valuable in the market. These systems incorporate dependable components and an extremely sturdy construction, along with designed features from years of experiences of producing high quality commercial reverse osmosis systems.
Additional features provided by our commercial RO water system include:
- Compact, Heavy Duty, Powder Coated Carbon Steel Frame
- Membranes from most reputable brands
- Long-lasting performance
- Tried and tested (trouble-free operation)
- Minimal membrane fouling
- Cost-effective
- Enhanced energy efficiency
- Reduction of scaling deposits
- Fresher, clearer improved tasting water
BWRO-P412 Series Reverse Osmosis Systems Brackish Water Treatment
| MODEL | BWRO-P412-6000 | BWRO-P412-9000 | BWRO-P412-12000 | BWRO-P412-15000 | BWRO-P412-18000 |
| Feed Water TDS ¹ | <3000ppm | <3000ppm | <3000ppm | <3000ppm | <3000ppm |
| Nominal Perm. rate ² | 1.0m³/hr | 1.5m³/hr | 2m³/hr | 2.5m³/hr | 3.0m³/hr |
| Approx. conc. rate | 0.45m³/hr | 0.62m³/hr | 0.86m³/hr | 1.05m³/hr | 1.24m³/hr |
| Approx. conc. recycle rate | 0.5m³/hr | 0.1m³/hr | 0.9m³/hr | 0.5m³/hr | 0.3m³/hr |
| Approx. Feed rate | 1.45m³/hr | 2.06m³/hr | 2.86m³/hr | 3.5m³/hr | 4.2m³/hr |
| Recovery Rate | 65~75% | 65~75% | 65~75% | 65~75% | 65~75% |
| Pump and Motor | |||||
| Manufacturer | CNP | CNP | CNP | CNP | CNP |
| Model | CDLF2-15 (60hz) | CDLF2-18 (60hz) | CDLF4-14 (60hz) | CDLF4-14 (60hz) | CDLF4-16 (60hz) |
| Motor HP | 3kw | 4kw | 5.5kw | 5.5kw | 5.5kw |
| Wet contact Material | SS316 | SS316 | SS316 | SS316 | SS316 |
| Design flow rate ³ | 1.95m³/hr | 2.3m³/hr | 3.76m³/hr | 4.0m³/hr | 4.5m³/hr |
| Design RO Working pressure | 17.8bar | 20.5bar | 17.2bar | 17.0bar | 18.8bar |
| Membranes Elements and Housings | |||||
| Membrane quantity | 4 | 6 | 8 | 10 | 12 |
| Housing quantity | 4 (single element) | 6 (single element) | 4 (2-element) | 5 (2-element) | 6 (2element) |
| Membrane housing array | 1→1→1→1 | 1→1→1→1→1→1 | 2→2 | 2→2→1 | 2→2→2 |
| Valves | |||||
| Auto inlet valve | 1" SS316; solenoid | 1" SS316; solenoid | 1-1/4" SS316; solenoid | 1.5" SS316; solenoid | 1.5" SS316; solenoid |
| Auto flush valve | 1/2" SS316; solenoid | 1/2" SS316; solenoid | 3/4" SS316; solenoid | 3/4" SS316; solenoid | 3/4" SS316; solenoid |
| Feed valve after HP pump | 3/4" SS316;adjustable | 1" SS316;adjustable | 1" SS316;adjustable | 1-1/4" SS316; adjustable | 1-1/4" SS316; adjustable |
| Concentrate valve | 1/2" SS316;adjustable | 1/2" SS316;adjustable | 3/4" SS316;adjustable | 3/4" SS316;adjustable | 3/4" SS316;adjustable |
| Recycle valve | 1/2" SS316;adjustable | 1/2" SS316;adjustable | 3/4" SS316;adjustable | 3/4" SS316;adjustable | 3/4" SS316;adjustable |
| Recycle check valve | 1/2" UPVC | 1/2" UPVC | 3/4" UPVC | 3/4" UPVC | 3/4" UPVC |
| Manual product valve | 3/4" UPVC double union ball valve | 3/4" UPVC double union ball valve | 1" UPVC double union ball valve | 1" UPVC double union ball valve | 1" UPVC double union ball valve |
| Manual CIP inlet | 1" SS316 ball valve | 1" SS316 ball valve | 1" SS316 ball valve | 1" SS316 ball valve | 1" SS316 ball valve |
| Manual CIP conc.outlet | 1/2" SS316 ball valve | 1/2" SS316 ball valve | 3/4" SS316 ball valve | 3/4" SS316 ball valve | 3/4" SS316 ball valve |
| Manual CIP perm.outlet | 1/2" UPVC double union ball valve | 1/2" UPVC double union ball valve | 1/2" UPVC double union ball valve | 1/2" UPVC double union ball valve | 1/2" UPVC double union ball valve |
| Installation | |||||
| Inlet | 1.5"BSPT or NPT | 1.5"BSPT or NPT | 1.5"BSPT or NPT | 1.5"BSPT or NPT | 1.5"BSPT or NPT |
| Permeate | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
| Drain | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT |
| CIP inlet | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
| CIP outlet | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
| Package Dimension | |||||
| Approx. Height | 1350mm | 1350mm | 1350mm | 1350mm | 1350mm |
| Approx. Width | 700mm | 700mm | 850mm | 850mm | 850mm |
| Approx. Depth | 1650mm | 1650mm | 2350mm | 2350mm | 2350mm |
| Approx. Shipping Weight | 240kg | 260kg | 250kg | 265kg | 275kg |
| Options | |||||
| Antiscalant Feed System | Metering pump: 1.5L/hr Chemical tank: 60-100L | Metering pump: 1.5L/hr Chemical tank: 60-100L | Metering pump: 1.5L/hr Chemical tank: 60-100L | Metering pump: 1.5L/hr Chemical tank: 60-100L | Metering pump: 1.5L/hr Chemical tank: 60-100L |
| CIP system | CIP tank: 200L CIPpump: 2m³/h@3bar CIP filter: 4.5"×20"BB | CIP tank: 200L CIPpump: 2m³/h@3bar CIP filter: 4.5"×20"BB | CIP tank: 200 or 300L CIPpump: 4m³/h@3bar CIP filter: 4.5"×20"BB | CIP tank: 200 or 300L CIPpump: 4m³/h@3bar CIP filter: 4.5"×20"BB | CIP tank: 200 or 300L CIPpump: 4m³/h@3bar CIP filter: 4.5"×20"BB |
| Pretreatment: PTSC836 series | PTSC836-14 | PTSC836-16 | PTSC836-18 | PTSC836-21 | PTSC836-24 |
| Pretreatment: PTSCS836 series | PTSCS836-14 | PTSCS836-16 | PTSCS836-18 | PTSCS836-21 | PTSCS836-24 |
| ¹Treatment ability and working pressure of the RO system are dependent on feed water quality. | |||||
| ² Maximum permeate rate listed at temperature 25℃, Permeate rate will decreases with decreasing temperature | |||||
| ³ Design flow rate of the pump is the sum of Feed rate and Concentrate recycle rate | |||||
| Operating Limits | |||||
| Maximum Feed Temperature °C (°F) | 30 (86) | pH (Continuous) | 4 ~ 9 | ||
| Minimum Feed Temperature °C (°F) | 5 (41) | Minimum pH (Continuous) | 4 | ||
| Maximum Feed Pressure bar (psi) | 5 (72) | Free Chlorine | undetectable | ||
| Minimum Feed Pressure bar (psi) | 2 (29) | Iron ppm | <0.1 | ||
| Maximum TDS ppm | 3000 | Manganese ppm | <0.05 | ||
| SDI | <5 | Organic matter ppm | <1 | ||
