Skid Mount OEM 100TPH UF Water Purification System
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | UF-T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Ultrafiltration | Design: | Skid Mount |
|---|---|---|---|
| Permeate Flow/TPD: | 5~100/skid | Recovery Rate: | 90~98% |
| Feed TDS/ppm: | <35,000 | Water Temp.: | 5~35˚C |
| PH: | 2~11 | TSS/mg/L: | <100 |
| Tubidity: | <300 | Free Chlorine Mg/L: | 0 |
| Dissolved Iron Mg/L: | <0.1 | Warranty: | 1 Year |
| Skid Material: | SS304/SS316L,carbon Steel | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Water Purification,Filtration,pharmceutical,drinking Water,food | Size: | Depends,1750*550*1650mm |
| Function: | Water Purifying, RO Pre-treatment | Desalination Rate: | 99%,99.7% |
| Control: | Electronic,Manual/PLC | UF Membrane: | Hydranautics Or DOW / China Make |
| Pump: | CNP / Grundfos,CNP | ||
| High Light: | 100TPH UF water purification system,OEM UF water purification system,100TPH water ultrafiltration system |
||
Product Description

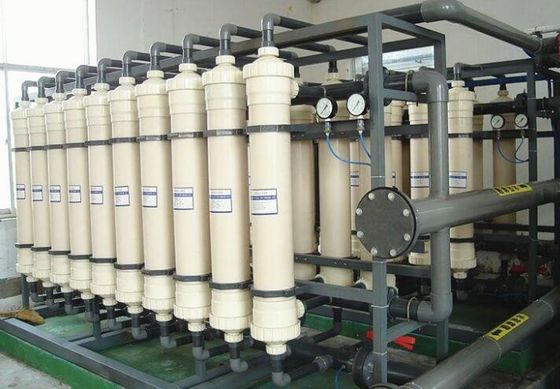

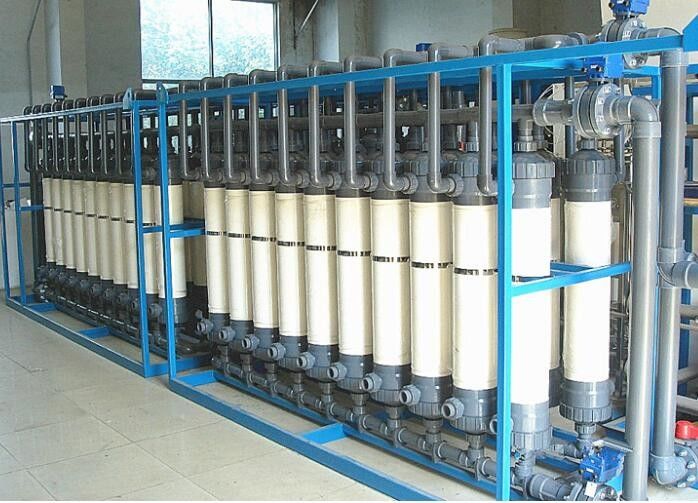

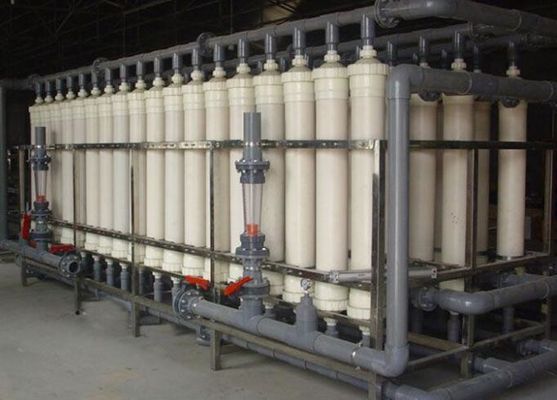

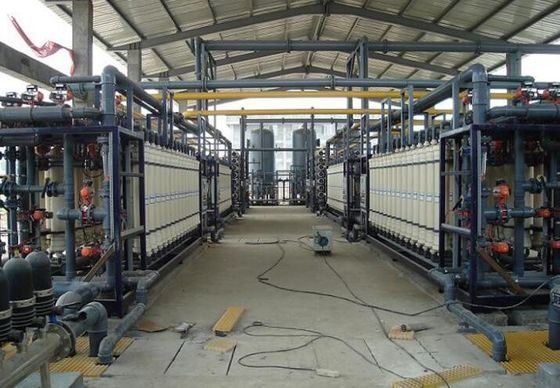

Skid Mount OEM 100TPH UF Water Purification System
Industrial ultrafiltration(UF) water purification system 5TPH~100TPH skid mount
Our UF plants are built with hollow fiber outside-in membranes, up to 100 m3/h, to purify surface or groundwater from suspended solids, colloids and all kind of micro-organisms such as bacteria, virus, protozoa, germs and larvae.
Ultrafiltration is also commonly used as a Reverse Osmosis plant pretreatment.
General design data for Ultrafiltration Plants:
| Groundwater | Seawater | Surface water | |
| Turbidity | < 5 NTU | < 20 NTU | < 50 NTU |
| Flux | 75 lmh | 60 lmh | 45 lmh |
| Daily recovery (24h) | 96% | 94% | 85% |
| Membrane types | Hollow fiber outside-in | ||
| Max TSS | 100 mg/L | ||
| Max COD | 60 ppm | ||
| Max oil and grease | 2 ppm | ||
Ultrafiltration plant for Low, Medium and High turbidities
High resistance, low fouling outside-in membranes
All equipment mounted on stainless steel 304 skid
Standard control with micro-controller and turbidity display
Advanced control with flow, pressure, differential pressure and turbidity transmitters for data monitoring, normalization and SCADA.
Integrity test
The system includes:
Feed pump with frequency control SS 316
Self-cleaning filter 50 -200 microns
UF modules Hollow fiber outside / in in dead-end or cross-f flow configuration
Backwash pump
Air blower
Chemical dosing stations for chemically enhanced backwash
Standard or advanced instrumentation
Three configuration plants available in UF-T series:
- UF-T1, Low turbidity < 5 NTU
- UF-T2, Medium turbidity < 20 NTU
- UF-T3, High turbidity < 50 NTU
| Type UF Low | UF-T1-5 | UF-T1-10 | UF-T1-20 | UF-T1-30 | UF-T1-50 | UF-T1-70 | UF-T1-100 |
| Production flow m3/h | 5 | 10 | 20 | 30 | 50 | 70 | 100 |
| Daily production | 120 | 240 | 480 | 720 | 1200 | 1680 | 2400 |
| Daily waste water | 5 | 10 | 19 | 29 | 48 | 67 | 96 |
| Connections | |||||||
| Feed | DN 50 | DN 65 | DN 80 | DN 100 | DN 115 | DN 125 | DN 150 |
| Permeate | DN 40 | DN 50 | DN 65 | DN 80 | DN 100 | DN 115 | DN 125 |
| Concentrate | DN 40 | DN 50 | DN 50 | DN 50 | DN 50 | DN 50 | DN 65 |
| Power 400v, 50Hz** | 2.0 kW | 4.0 kW | 8.0 kW | 12.5 kW | 22.0 kW | 30.0 kW | 40.0 kW |
| Dimensions (mm) | |||||||
| Length | 2800 | 3800 | 3800 | 4200 | 5000 | 6200 | 8000 |
| Width | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Height | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Type UF Medium | UF-T2-5 | UF-T2-10 | UF-T2-20 | UF-T2-30 | UF-T2-50 | UF-T2-70 | UF-T2-100 |
| Production flow m3/h | 5 | 10 | 20 | 30 | 50 | 70 | 100 |
| Daily production | 120 | 240 | 480 | 720 | 1200 | 1680 | 2400 |
| Daily waste water | 7 | 14 | 29 | 43 | 72 | 101 | 144 |
| Connections | |||||||
| Feed | DN 50 | DN 65 | DN 80 | DN 100 | DN 115 | DN 125 | DN 150 |
| Permeate | DN 40 | DN 50 | DN 65 | DN 80 | DN 100 | DN 115 | DN 125 |
| Concentrate | DN 40 | DN 50 | DN 50 | DN 50 | DN 50 | DN 50 | DN 65 |
| Power 400v, 50Hz** | 2.2 kW | 4.4 kW | 10 kW | 13.5 kW | 24.0 kW | 32.5 kW | 46.0 kW |
| Dimensions (mm) | |||||||
| Length | 3000 | 4000 | 4000 | 4400 | 5800 | 7200 | 9500 |
| Width | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Height | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Type UF High | UF-T3-5 | UF-T3-10 | UF-T3-20 | UF-T3-30 | UF-T3-50 | UF-T3-70 | UF-T3-100 |
| Production flow m3/h | 5 | 10 | 20 | 30 | 50 | 70 | 100 |
| Daily production | 120 | 240 | 480 | 720 | 1200 | 1680 | 2400 |
| Daily waste water | 17 | 34 | 67 | 101 | 168 | 235 | 336 |
| Connections | |||||||
| Feed | DN 50 | DN 65 | DN 80 | DN 100 | DN 115 | DN 125 | DN 150 |
| Permeate | DN 40 | DN 50 | DN 65 | DN 80 | DN 100 | DN 115 | DN 125 |
| Concentrate | DN 40 | DN 50 | DN 50 | DN 50 | DN 50 | DN 50 | DN 65 |
| Power 400v, 50Hz** | 2.6 kW | 5.2 kW | 11 kW | 16 kW | 28.0 kW | 38.0 kW | 54.0 kW |
| Dimensions (mm) | |||||||
| Length | 3400 | 4800 | 4800 | 5000 | 7000 | 9000 | 12000 |
| Width | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Height | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
