5000L Flocculant Dosing Systems

5000L Flocculant Dosing Systems

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/NSF etc.
Model Number: CDS-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Application: Chemical Dosing Method: Chemical Treatment
Function: Mix And Dosing Chemical Agent To Wastewater Usage: Industrial
PE Tank Volume: 40-5000L Configuration: Pump + Mixer+ PE Tank
Control: Electronic,Manual/PLC
High Light:

5000L chemical dosing system


flocculant dosing systems


5000L flocculant dosing systems

Product Description

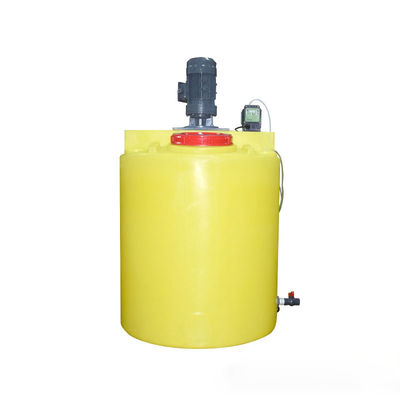

5000L Flocculant Dosing Systems

Effluent Treatment Plant Automatic Chemical Mixing Dosing System / Flocculant Dosing Systems

Description :
dosing device is mainly composed of solution tank,stirring tank (with sirrer),metering pump ,level gauge,electronic control ,piprlinr ,valve ,safety valve,staircase etc (which can confihuration according to client's actual requirement) according to required agentia concentration ,preparation in stirring tank ,inject it into solution tank after stir well by stirrer ,using metering pump deliver the preparation solution to dosing point or appointed system .the whole set of dosing system with the charateristic of compact structure ,safety simple ,operation using convenient etc.this device can be targeted design according to client's different processing requirement ,realize different functions by configuration necessary components.

Application scope in water supply ,water draining processing procedure,it need dosing all kinds of chemical agentia as coagulation ,flocculation ,coagulant aids and didinfection sterilization ,to realize the purpose of water purification .this agentia has solid particles ,liquids and colloid etc ,it can get the best effect by dissolve,dilute and ration dosing .suitable for water supply ,water draining ,water quality purification ,sewage treatment and chemical industry ,petroleum,power plant ,textile ,papermaking ,medical etc industry projects.


1. Compact design,small occupy,sample instruction,stable performance.
2. Metering accuracy,easy control,easy to install.
3. Metering pump is suction type,hand to be blocked,can work for long time,low operating cost.
4. Anti-corrosion,long service life.
5. Liquid tank material:PE, FRP, SS304, SS316.
6. Mixer material: SS304,SS316.
7. Metering pump flow portion material:PP,PVC,PVDF,SS316.

Main components:
1. Metering pump
- PVC,PTFE, PVDF,304,316 is available as the pump head material
- flow can be adjusted during operation, the range is 0.5~500L/h

Pressure range:0.2~1 Mpa
- Automatic control who can accpet4~20mA is available (JWM-AD series)
- Motor: standard 220V/380V,50Hz

Regulating mode: manual / automatic
2. mixer
Rated power :0.18~11kW;
mixer diameter: 0.4~3m
mixing speed:60~200rpm
3. Solution tank
Volume :1000L

Dosing Tank size:
Mixer power:

Product Parameters

Model Diamater mm Height mm Mixer (KW) Dosing pump (KW)
MC100 450 700 0.37 0.06
MC200 550 900 0.37 0.06
MC300 650 1000 0.40 0.37
MC500 810 1100 0.40 0.37
MC1000 1040 1250 0.40 0.37

Note: The above data may be not correct. Pls contact with our sales diectly.

1. Coagulant, filter aid, disinfectant, acid and alkali are added in water treatment.
2. Add scale inhibitor into cooling water and circulating water.
3. Acid, alkali and other solutions are added in chemical industry, papermaking, printing and dyeing.
