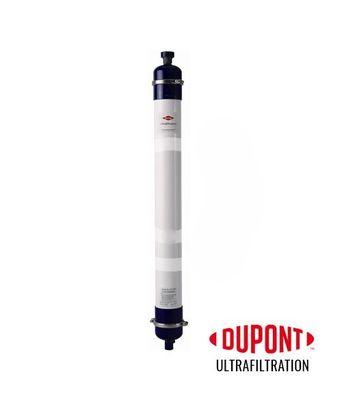

Dupont SFP-2660 IntegraFlux™ UF Module – For Wastewater Reuse & RO Pretreatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Dupont |
| Certification: | CE |
| Model Number: | SFP-2660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Area Of SFP-2660: | 33m² | Nominal Pore Diameter Of SFP-2660: | 0.03 µm |
|---|---|---|---|
| Module Membrane Operating Pressure Of SFP-2660: | 0.35MPa | SFP-2660 Membrane Flow Range: | 1.3 – 4.0 M3/hr |
| Filtration Accuracy Of SFP-2660: | 0.01-0.1µm | Filter Method: | External Pressure |
| Temperature: | 1-40ºC | Membrane Particle Size (max.): | 300 µ |
| Membrane Max Backwash Pressure Of This Model: | 2.5 Bar | TSS (max.) Of This Model: | 100 Mg/L |
| Main Material Of This Model: | PVDF | Advantages: | High-Flux, Low-Fouling Powerhouse |
| Application: | Pretreatment | ||
Product Description
DOW™ SFP-2660 IntegraFlux™ UF Module – For Wastewater Reuse & RO Pretreatment
Product Introduction:
The DOW™ SFP-2660 is a high-performance ultrafiltration (UF) membrane module designed for industrial and municipal water treatment. It features PVDF (polyvinylidene fluoride) hollow fiber technology, providing high mechanical strength, chemical resistance, and stable filtration performance.
Key Features & Benefits:
✔ 0.03μm Nominal Pore Size – Effectively removes bacteria, viruses, colloids, and suspended solids for high-purity water production.
✔ High Chemical Resistance – Tolerates pH 2–11 (operating) and up to 2,000 ppm NaOCl for robust cleaning.
✔ Outer-Pressure (Out-to-In) Design – Handles higher TSS (Total Suspended Solids) levels (up to 100 mg/L) with reduced pretreatment needs.
✔ High Flux & Low Energy Consumption – Optimized for 50 m³/hr (220 gpm) systems, ensuring cost-effective operation.
✔ Compact 6-Inch Diameter, 60-Inch Length – Ideal for space-constrained installations while maximizing membrane area.
Typical Applications:
-
Wastewater Reuse (Industrial & Municipal)
-
RO/NF Pretreatment (Seawater & Brackish Water Desalination)
-
Drinking Water Purification (Pathogen & Turbidity Removal)
-
Electronics & Power Plant Process Water
Technical Specifications:
-
Model: SFP-2660
-
Membrane Material: PVDF (Hydrophilic Modified)
-
Filtration Mode: Dead-End / Crossflow (Outer-Pressure)
-
Max Operating Pressure: 6.25 bar
-
Max Backwash Pressure: 2.5 bar
-
Temperature Range: 1–40°C (34–104°F)
-
Effective Membrane Area: ~51 m² (549 ft²)
Certifications: NSF/ANSI 61 & 419 (for potable water applications).
Product Specifications

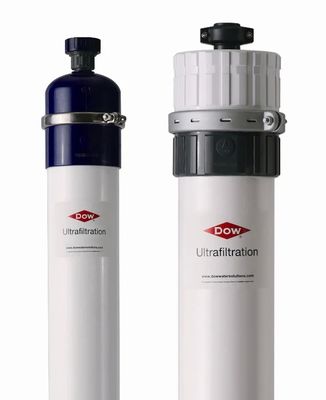

Figure 1: SFP and SFD 2660 (6-inch diameter)
Figure 2
Operating Parameters
Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed.
