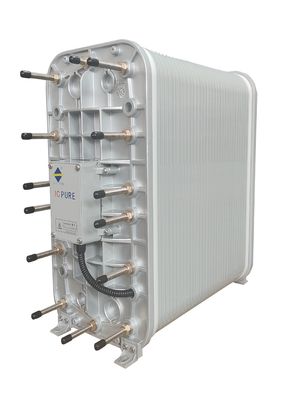

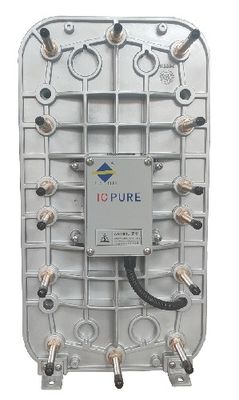

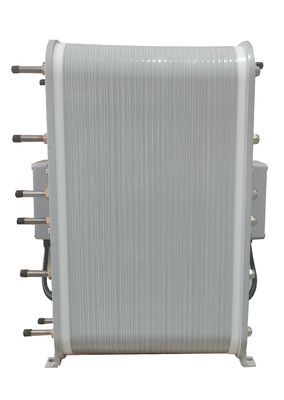

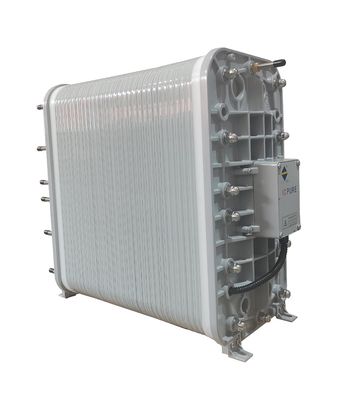

500L/H--5000L/H High Temperature Sterilization Type EDI Modules LCX-H Series
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |
| Model Number: | High Temperature Sterilization Type |
| Document: | LCX-EDI (3) (1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Stack Standard Water Flow Rate (L/h): | 500L/H--5000L/H | Stack Operating Voltage (VDC): | 0-200V/340V/550V |
|---|---|---|---|
| Stack Working Current (0-6A): | 2.5 | Stack Maximum Power (KW/H): | 1.2 / 2 /3 |
| Overall Height (mm): | 605 | Overall Width (mm): | 315 |
| Origin: | China | Left And Right Positioning (mm): | 215 |
| Highlight: | 5000L/H EDI Modules,500L/H EDI Modules,High Temperature Sterilization EDI Modules |
||
Product Description
500L/H--5000L/H High Temperature Sterilization Type EDI Modules -LCX-H Series
1. EDI模块工作原理
2.EDI模块流程的优势
Representing a major step forward in water treatment, EDI (Electrodeionization) integrates electrodialysis and ion exchange to achieve chemical-free desalination. Utilizing DC current and selective membranes, it continuously directs ions out of the product stream, yielding ultra-pure water (5-18 MΩ.cm) without acid or alkali regeneration. This key environmental benefit, combined with continuous, automated operation, has driven EDI to largely replace mixed-bed systems as the final purification stage. Its reliability makes it essential in demanding industries including electronics manufacturing, pharmaceuticals, power generation, and chemical processing.
2.EDI模块流程的优势
- EDI模块可连续生产超纯水,省去生产过程中复杂的再生操作.
床的使用,减少了许多混合待命的需要.
4 .High Temperature LCX-H Series EDI Module Specifications
- 安装条件简单,安装时电去离子小.
- 临时和临时间歇,临时和临时的中和处理系统.
阻止吸收的水量为
非常小.
- 运行成本低.与各种混床相比,渗漏分析系统具有价格对比.
- 的设计,对于漏电分析系统实用来说,无论是维护还是扩容,都很容易.
维护更换,安装地点.
- EDI出水水质稳定,不会像普通混床那样出现水质变化.
- 易于安装允许和维护.EDI设备通过重新分配模块的维护
流向其他膜堆而不会改变其性能.
3.High Temperature EDI Inlet Water Quality Requirements- 标准化设计.采用标准主机,可满足不同水量用户的需求.
4 .High Temperature LCX-H Series EDI Module Specifications
| 型号(MODEL) | LCX-05H | LCX-10H | LCX-20H | LCX-30H | LCX-38H | LCX-45H |
| 流量范围(m3/h) FlowRange(m3/h) |
0.4-0.6 | 0.8-1.2 | 1.8-2.3 | 2.8-3.2 | 3.8-4.2 | 4.8-5.3 |
| 工作电流(0-6A) OperatingCurrent(0-6A) |
2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| 操作电压(VDC) OperatingVoltage(VDC) |
0-200 | 0-200 | 0-340 | 0-340 | 0-550 | 0-550 |
| 最大功率(KW/H) MaximumPower(KW/H) |
1.2 | 1.2 | 2 | 2 | 3 | 3 |
| 运输重量(KG) OperatingWeight(KG) |
40 | 50 | 75 | 100 | 125 | 140 |
| 外形尺寸高(mm) Height(mm) |
605 | 605 | 605 | 605 | 605 | 605 |
| 外形尺寸宽(mm) Width(mm) |
315 | 315 | 315 | 315 | 315 | 315 |
| 总长A(mm) OveralllengthA(mm) |
270 | 370 | 560 | 735 | 840 | 945 |
| 左右定位中心距(mm) LeftandRightPositioning Holes(mm) |
215 | 215 | 215 | 215 | 215 | 215 |
| 前后定位中心距B(mm) FrontandBackPositioning HolesB(mm) |
205 | 290 | 415 | 670 | 725 | 835 |
| 淡水进口/出口接头( Inner Thread) Pure Water Inlet/Outlet |
1-1/4″ PT internal thread |
1-1/4″ PT internal thread |
1-1/4″ PT internal thread |
1-1/4″ PT internal thread |
1-1/4″ PT internal thread |
1-1/4″ PT internal thread |
| 浓水进口/出口接头( Inner Thread) Concentrated Water Inlet/Outlet |
3/4″ PT internal thread |
3/4″ PT internal thread |
3/4″ PT internal thread |
3/4″ PT internal thread |
3/4″ PT internal thread |
3/4″ PT internal thread |
