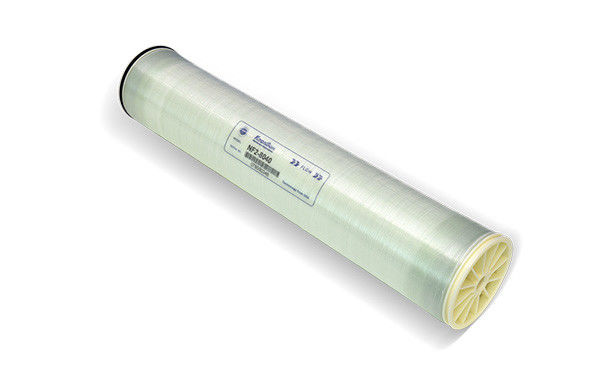

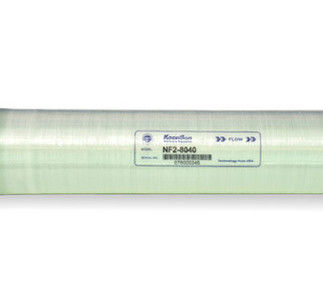

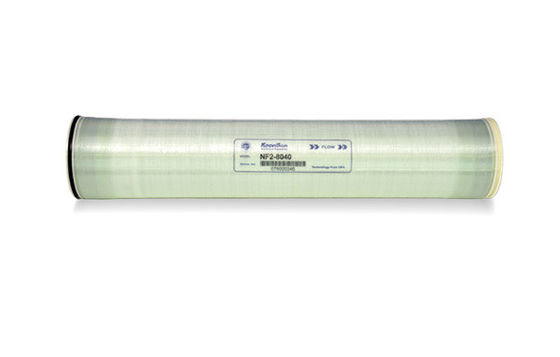

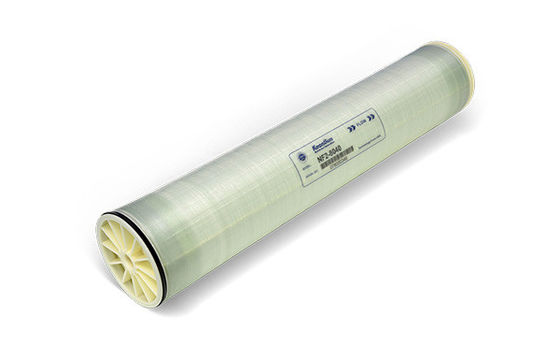

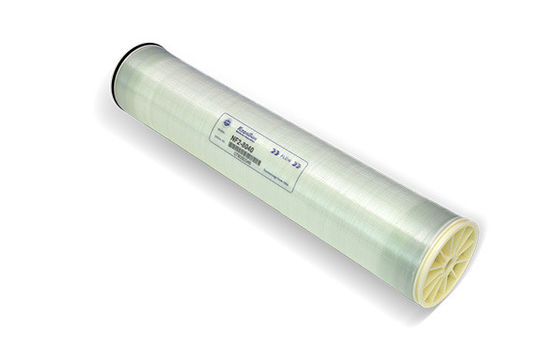

Nanofiltration(NF) Membrane Element-NF2-8040 For High Salt Concentration Wastewater
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | ISO9001,NSF |
| Model Number: | NF2-8040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Origin: | China | Certification Of This Product: | ISO9001,NSF |
|---|---|---|---|
| Brand: | Keensen | The Model Name: | NF2-8040 |
| Concentration Of Solution: | 500mg/L NaCl | Temperature: | 25℃） |
| PH: | 7.5-8 | Applicable Scenarios: | High Salt Concentration Wastewater |
| Highlight: | High Salt Concentration Nanofiltration Membrane Element,Wastewater Nanofiltration Membrane Element,High Salt Concentration NF Membrane Element |
||
Product Description
Nanofiltration(NF) Membrane Element-NF2-8040 For High Salt Concentration Wastewater
Nanofiltration membrane is a special membrane that can separate nanoscale substances. Its pore size ranges from a few nanometers to tens of nanometers, so it can remove heavy metals, bacteria, viruses and other harmful substances in water. The advantages of nanofiltration membrane are:
1. Retaining beneficial minerals: Nanofiltration membrane can filter out harmful substances in water, but will not filter out beneficial minerals. Therefore, water filtered by nanofiltration membrane can retain minerals that are beneficial to the human body.
2. High temperature resistance: Nanofiltration membrane has high heat resistance and can be used under high temperature conditions, which makes it advantageous in some specific applications.
3. Simple maintenance: The replacement cycle of nanofiltration membrane is long, generally only needs to be replaced every 3-5 years, and when replacing, only the membrane shell needs to be opened, and the operation is relatively simple.
It is applicable to the desalination of direct drinking water, spring water, boiler water, also desalination and decolorization of wastewater with high salt concentration.
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Solution Type |
| NF2-8040 | 400(37.2) | 13000(49.2) | 30-50 | NaCl |
| 11000(41.6) | >97 | MgSO4 |
| Concentration of Solution | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L NaCl | 25 | 7.5-8 | 70(0.48) | 15 |
| 2000mg/L MgSO4 | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 17m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
