1. The concentration and purification process is carried out at room temperature, without phase change, chemical reaction, other impurities and decomposition and denaturation of the product, which is particularly suitable for heat-sensitive substances.
2. It can remove the salt of the product, reduce the ash content of the product, and improve the purity of the product. Compared with solvent desalination, not only the product quality is better, but also the yield can be improved.
It is applicable to the desalination of direct drinking water, spring water, boiler water, also desalination and decolorization of wastewater with high salt concentration.
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Solution Type |

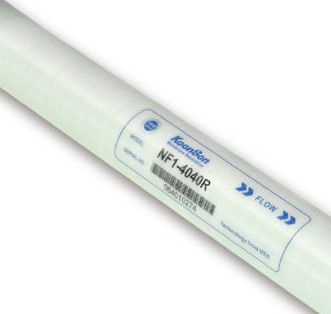

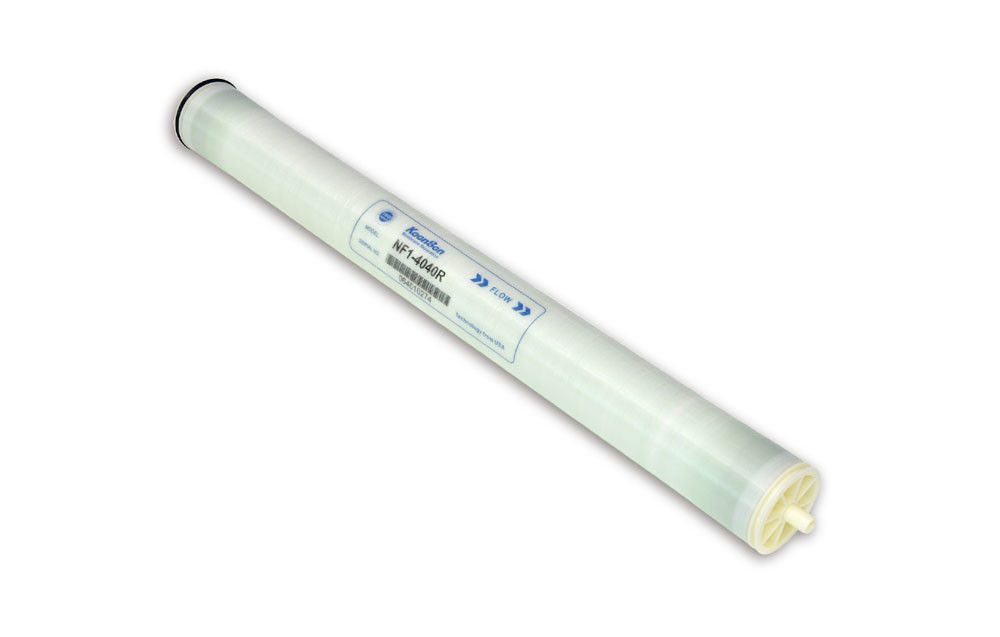

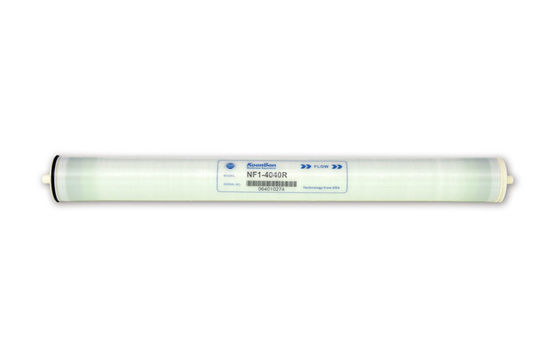

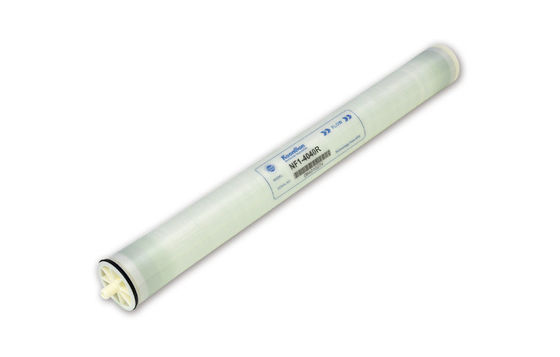

| NF1-4040R | 85(7.9) | 2200(8.3.) | >85 | NaCl |
| 1800(6.8) | >99 | MgSO4 |
| Concentration of Solution | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L NaCl | 25 | 7.5-8 | 70(0.48) | 15 |
| 2000mg/L MgSO4 | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. Feed Water Flow | 3.6m3/h |
| Max. FeedWaterSDI15 | 5.0 |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pHRange of FeedWaterDuring Continuous Operation | 3-10 |
| pHRange of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |

![]() |
![]() |
