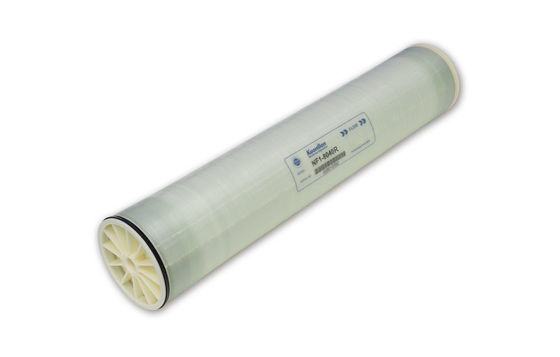

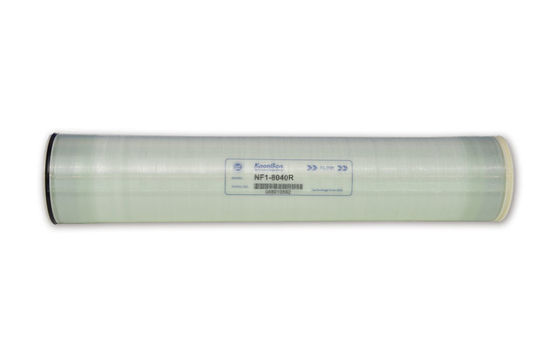

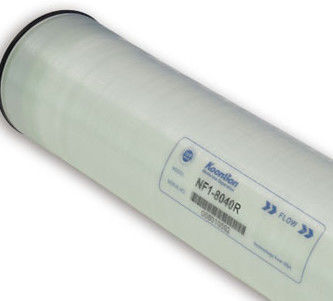

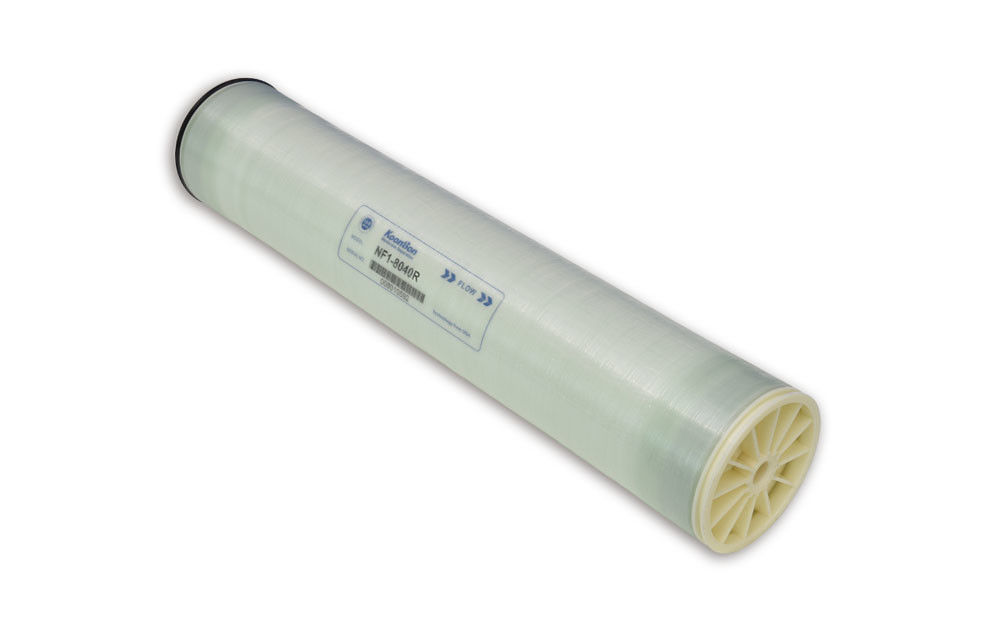

High Flux Nanofiltration(NF) Membrane Element-NF1-8040R For Spring Water
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | NF1-8040R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| The Categary Of This Membrane: | Industrial Membrane Element | Usage Of This Model: | It Is Applicable To The Desalination Of Direct Drinking Water, Spring Water, Boiler Water |
|---|---|---|---|
| The Certification Of This Product: | ISO9001,NSF | Active Membrane Area Ft2(m2) Of This NF Membrane: | 400(37.2) |
| Model: | NF1-8040R | Advantages Of This Product: | Low Working Pressure |
| Max.Working Pressure Of This Model: | 600 Psi(4.14MPa) | Max. FeedWater Temperature Of This Model: | 45 ℃ |
| Highlight: | High Flux Nanofiltration Membrane Element,Spring Water Nanofiltration Membrane Element,NF1-8040R Nanofiltration Membrane Element |
||
Product Description
High Flux Nanofiltration(NF) Membrane Element-NF1-8040R For spring water
1. Investment and operating costs: Although the initial investment may be higher, nanofiltration membrane technology is usually economically superior when considering long-term operating cost savings (such as energy consumption, chemical usage, and maintenance costs).
2. Reduce disinfection by-products: Nanofiltration membranes can significantly reduce the organic content in raw water, reduce the risk of generating disinfection by-products during the disinfection process, and improve the safety of drinking water.
3. Automation and integration: The nanofiltration membrane system can be designed to be highly automated and modular, which facilitates installation, expansion and maintenance, and improves operational efficiency and reliability.
It is applicable to the desalination of direct drinking water, spring water, boiler water, also desalination and decolorization of wastewater with high salt concentration.
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Solution Type |
| NF1-8040R | 400(37.2) | 11000(41.6) | 50-70 | NaCl |
| 9000(34.0) | >99 | MgSO4 |
| Concentration of Solution | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L NaCl | 25 | 7.5-8 | 70(0.48) | 15 |
| 2000mg/L MgSO4 | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. Feed Water Flow | 17.0m3/h |
| Max. FeedWaterSDI15 | 5.0 |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pHRange of FeedWaterDuring Continuous Operation | 3-10 |
| pHRange of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
