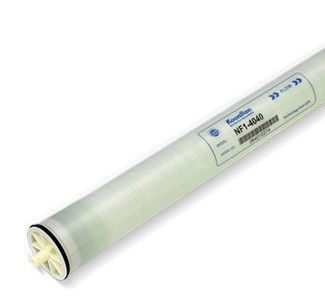

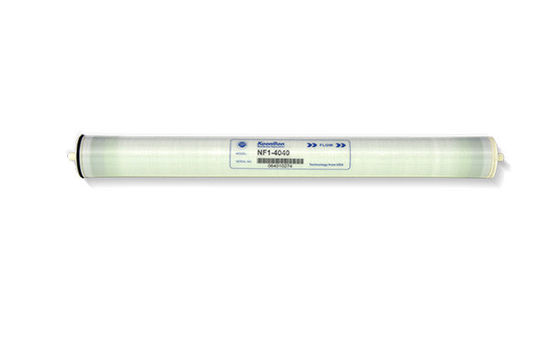

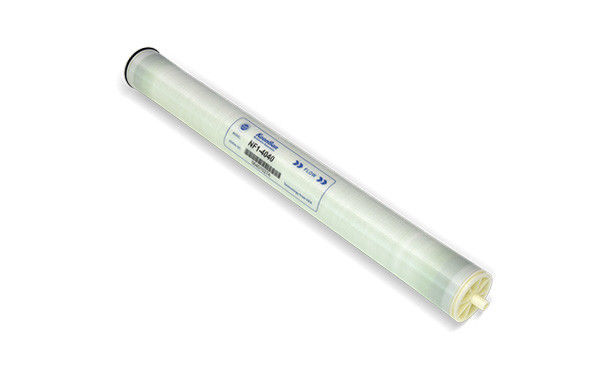

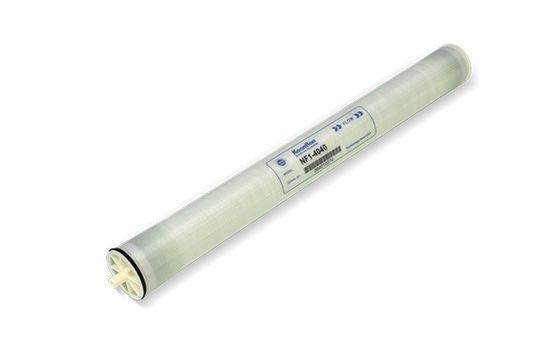

Low Working Pressure Nanofiltration NF Membrane Element-NF1-4040 For Boiler Water
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | NF1-4040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| The Type Of Model: | Nanofiltration(NF) Membrane | Usage Of This Model: | It Is Applicable To The Desalination Of Direct Drinking Water, Spring Water, Boiler Water, Also Desalination And Decolorization Of Wastewater With High Salt Concentration. |
|---|---|---|---|
| Product Certification: | ISO9001,NSF | Active Membrane Area Ft2(m2) Of This NF Membrane: | 400(37.2) |
| The Model: | NF1-4040 | Advantages Of Membrane: | Low Working Pressure |
| Membrane Area Ft2(m2): | 85(7.9) | PH Value Of This Model: | 7.5-8 |
| Highlight: | Boiler Water Nanofiltration Membrane Element,Low Working Pressure Nanofiltration Membrane Element,NF1-4040 Nanofiltration Membrane Element |
||
Product Description
low working pressure Nanofiltration(NF) Membrane Element-NF1-4040 for boiler water
1. Energy saving and environmental protection: Nanofiltration membrane technology achieves efficient separation under low pressure and low energy consumption. Compared with traditional physical or chemical treatment methods, energy consumption is reduced by more than 80%. In addition, nanofiltration membranes have a long life, are easy to clean, and can be used multiple times, reducing the use of chemicals and waste generation, which is beneficial to environmental protection.
2. Wide range of applications: Nanofiltration membrane technology is not only widely used in the field of water treatment, but also suitable for food and beverage, biomedicine, chemical and energy industries. In the field of food and beverage, nanofiltration membrane technology is used for juice concentration, purification, sterilization, etc.; in the field of biomedicine, it is used in the precision manufacturing and purification process of drugs.
It is applicable to the desalination of direct drinking water, spring water, boiler water, also desalination and decolorization of wastewater with high salt concentration.
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Solution Type |
| NF1-4040 | 85(7.9) | 2200(8.3) | 50-70 | NaCl |
| 1800(6.8) | >98 | MgSO4 |
| Concentration of Solution | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L NaCl | 25 | 7.5-8 | 70(0.48) | 15 |
| 2000mg/L MgSO4 | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 3.6m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
