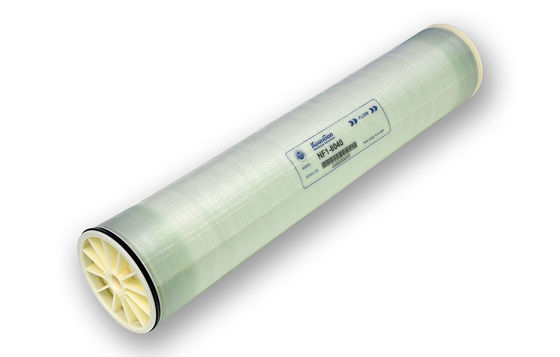

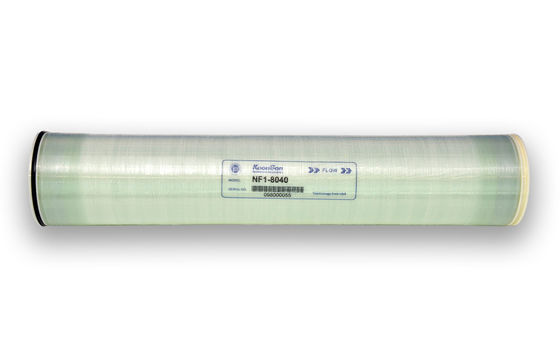

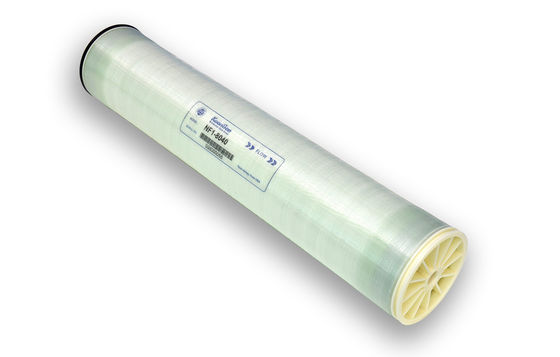

Industrial High Rejection Nanofiltration NF Membrane Element-NF1-8040
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | NF1-8040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| The Type Of Membrane: | Nanofiltration(NF) Membrane | Feature: | It Has The Selective Desalination Mechanism For Removal Of High Polyvalent Ions And Partial Maintaining Of Monovalent Ions With Health Benefits. |
|---|---|---|---|
| Certification: | ISO9001,NSF | Usage Of This Membrane: | It Is Applicable To The Desalination Of Direct Drinking Water, Spring Water, Boiler Water, Also Desalination And Decolorization Of Wastewater With High Salt Concentration. |
| Active Membrane Area Ft2(m2) Of This NF Membrane: | 400(37.2) | Permeate Flow GPD(m3/d) Of This NF Membrane: | 11000(41.6) |
| Stable Rejection Rate (%) Of This NF Membrane: | 50-70 | Solution Type: | NaCl |
| Operating Pressure Psi(MPa): | 70(0.48) | ||
| Highlight: | Industrial Nanofiltration Membrane Element,High Rejection Nanofiltration Membrane Element,NF1-8040 Nanofiltration Membrane Element |
||
Product Description
Industrial High Rejection Nanofiltration Membrane Element-NF1-8040
1. Efficient separation effect: The pore size of the nanofiltration membrane is between 1 nanometer and 100 nanometers, which can effectively separate the size and shape of molecules or ions. It can remove microorganisms, bacteria, viruses, organic matter, heavy metal ions and other harmful substances in the water, significantly improving water quality.
2. Flexible controllability: Nanofiltration membrane technology can achieve selective interception of molecules or ions of different sizes and charge states by adjusting the pore size and charge properties of the membrane. This controllability makes nanofiltration membrane technology suitable for a variety of water sources and specific pollutant treatments.
It is applicable to the desalination of direct drinking water, spring water, boiler water, also desalination and decolorization of wastewater with high salt concentration.
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Solution Type |
| NF1-8040 | 400(37.2) | 11000(41.6) | 50-70 | NaCl |
| 9000(34.0) | >98 | MgSO4 |
| Concentration of Solution | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L NaCl | 25 | 7.5-8 | 70(0.48) | 15 |
| 2000mg/L MgSO4 | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 17m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
