1. High efficiency of filtration performance and high desalination rate: The anti-pollution reverse osmosis membrane adopts advanced membrane manufacturing technology, which increases the effective membrane area and improves the ability to produce pure water per unit time. Its desalination rate is as high as 99.8%, which can effectively remove dissolved salts in water.
2. Strong anti-pollution ability: The surface of the anti-pollution reverse osmosis membrane has been specially treated to reduce the roughness and reduce the chance of debris retention. The optimized membrane material has stronger hydrophilicity, enhances the repulsion effect, and slows down the pollution rate of the membrane surface. In addition, the electrically neutral membrane surface design reduces the electrostatic adsorption of bacteria and microorganisms, further enhancing its ability to resist biological pollution.
3. Wide cleaning compatibility and good recovery performance: The anti-pollution reverse osmosis membrane allows chemical cleaning in a wide pH range, effectively removing pollutants such as inorganic scale, organic matter and microorganisms. Its optimized water supply channel design eliminates dead corners of water flow, increases turbulence, makes pollutants easier to wash away, and improves the regeneration efficiency and service life of membrane elements.
It is applicable to the desalination of surface water, groundwater and water treatment with salt concentration between 2000 and 8000ppm. It can be widely used in the medicine, chemical industry, beverage, electricity and other various industries etc..
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |

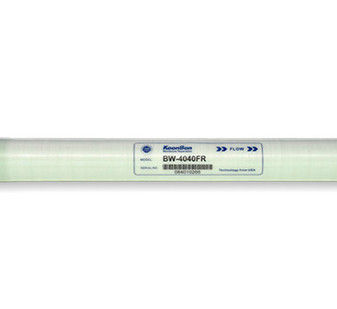

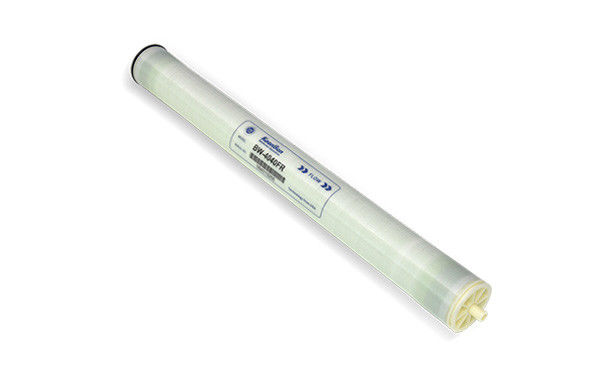

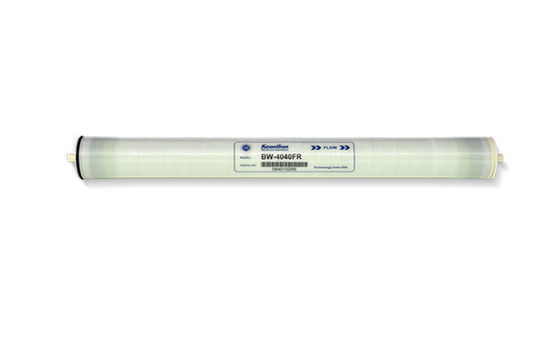

| BW-4040FR | 78(7.3) | 34 | 2000(7.6) | 99.60 | 99.50 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 2000mg/L | 25 | 7.5-8 | 225(1.55) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 3.6m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |

![]() |
![]() |
