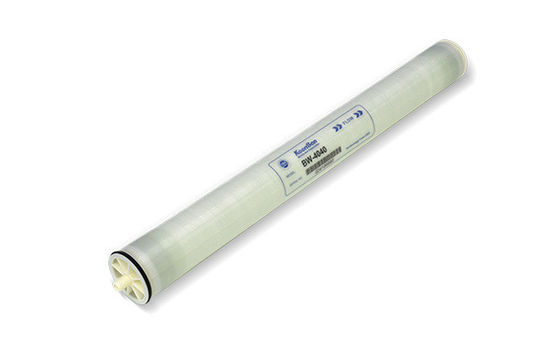

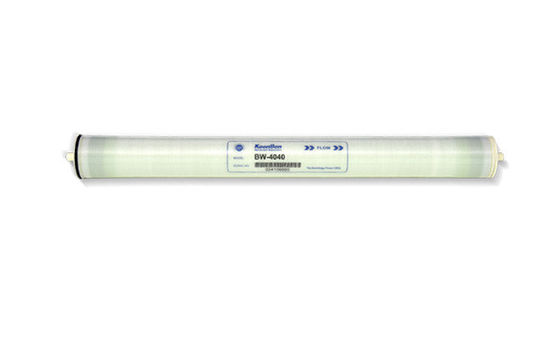

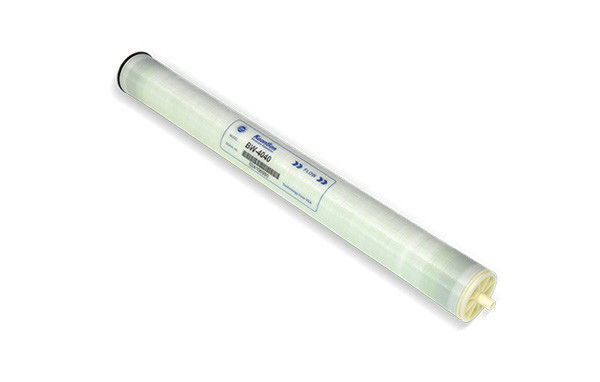

High Rejection Rate Brackish Water Reverse Osmosis BWRO Membranes Element-BW-4040
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | BW-4040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Categary:: | Industrial Membrane Element | Main Feature Of This Model: | High Rejection Rate, Large Flux And Excellent Anti-fouling Property. |
|---|---|---|---|
| Applicable Occasions: | It Can Be Widely Used In The Medicine, Chemical Industry, Beverage, Electricity And Other Various Industries Etc.. | Product Active Membrane Area Ft2(m2): | 85(7.9) |
| Product Concentrate Channel Spacer (mil): | 28 | Product Permeate Flow GPD(m3/d): | 2500(9.5) |
| Product Stable Rejection Rate (%): | 99.60 | Prodcut Minimum Rejection Rate (%): | 99.50 |
| Highlight: | Brackish Water BWRO Membranes,BWRO Membranes Element-BW-4040,High Rejection Rate BWRO Membranes |
||
Product Description
High rejection rate Brackish Water Reverse Osmosis Membranes Element-BW-4040
1. High desalination rate: BW reverse osmosis membrane adopts advanced coating technology and automated membrane winding process, and the standard desalination rate can reach more than 99.5%, which can effectively remove harmful substances such as dissolved salts, heavy metals, colloids, microorganisms and organic matter in water.
2. High water output: Through precise interface reaction control and secondary post-modification cross-linking technology, BW reverse osmosis membrane has high water output, which can significantly improve the treatment efficiency while ensuring the quality of water output.
It is applicable to the desalination of surface water, groundwater and water treatment with salt concentration between 2000 and 8000ppm. It can be widely used in the medicine, chemical industry, beverage, electricity and other various industries etc..
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
| BW-4040 | 85(7.9) | 28 | 2500(9.5) | 99.60 | 99.50 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 2000mg/L | 25 | 7.5-8 | 225(1.55) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 3.6m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
