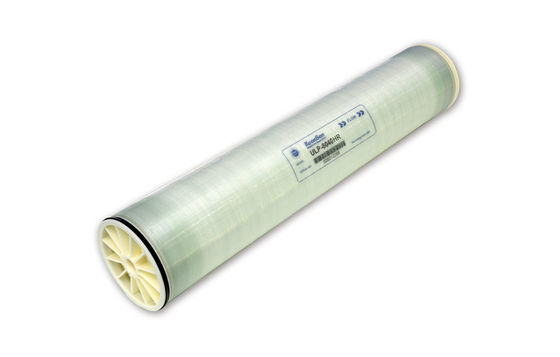

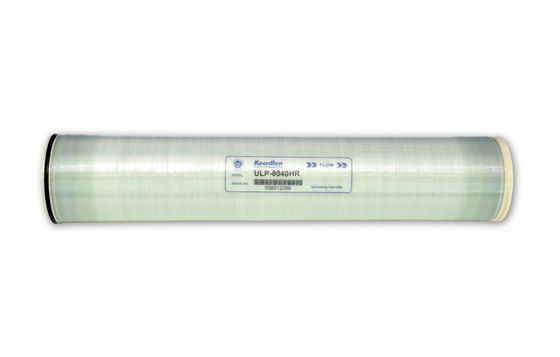

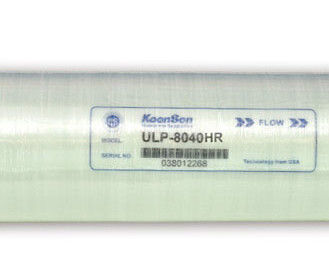

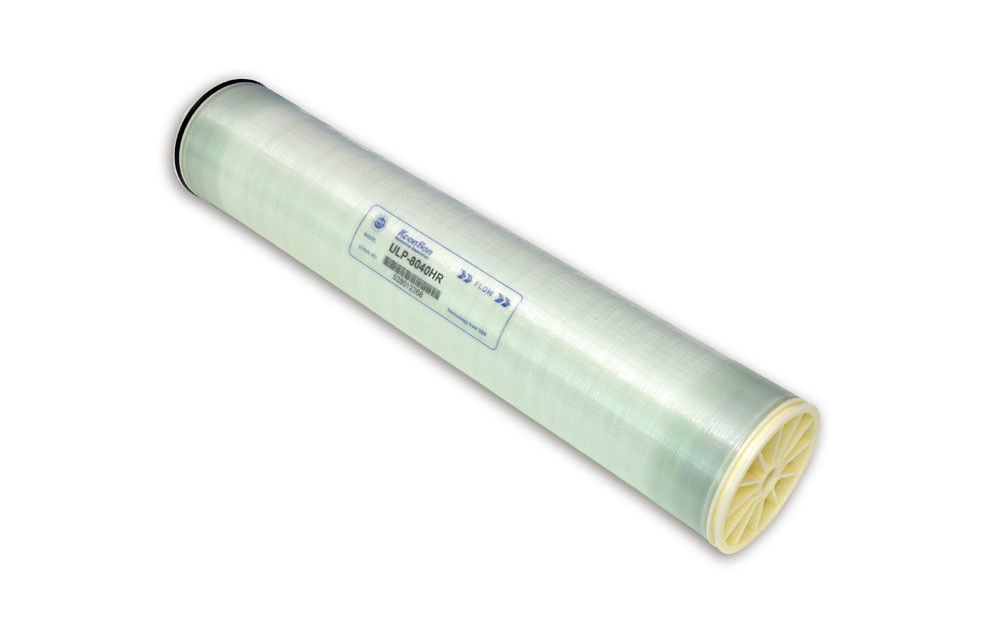

150psi Ultra Low Pressure Reverse Osmosis Membranes ULP-8040HR For Groundwater Desalination
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | ULP-8040HR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Max.Working Pressure Of Model: | 600 Psi(4.14MPa) | Max. FeedWater Temperature Of Model: | 45 ℃ |
|---|---|---|---|
| Max. Feed Water Flow Of Model: | 17.0m3/h | Max. FeedWaterSDI15: | 5.0 |
| Free Chlorine Concentration Of FeedWater: | 0.1mg/L | PHRange Of FeedWaterDuring Continuous Operation: | 2-11 |
| PHRange Of FeedWaterDuring Chemical Cleaning: | 1-13 | Operating Pressure Of Membrane: | 1.03MPa |
| Advantage Of RO Membrane: | Ultra Low Pressure | ||
| Highlight: | 150psi Reverse Osmosis Membranes,ULP-8040HR Reverse Osmosis Membranes,Groundwater Desalination Reverse Osmosis Membranes |
||
Product Description
150psi Ultra Low Pressure Reverse Osmosis Membranes ULP-8040HR For Groundwater Desalination
1.Smart design and simple operation: Ultra-low pressure reverse osmosis membrane equipment is simple, compact, occupies a small area, and is easy to maintain and operate. Its design reduces heavy processes, the equipment occupies a small area, is easy to disassemble and replace, and the technical process is simple.
2.Strong anti-pollution ability: The ultra-low pressure reverse osmosis membrane has excellent anti-pollution ability, can maintain high-efficiency filtration performance under complex and changeable water quality conditions, is not easily blocked by pollutants, and ensures the continuous stability of water quality.
It is applicable to the desalination of municipal water, groundwater with salt concentration less than 1500ppm. It can be widely used in residential dual water supplying system, pure water preparation plant, industry, food production and other fields etc..
| Model | Active Membrane Area ft2(m2) | Permeate Flow GPD(T/D) | Stable Rejection Rate (%) |
| ULP-8040HR | 400(37.2) | 9000(34.1) | 99.7 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value > | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 1500ppm | 25 | 7.5-8 | 150(1.03) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. Feed Water Flow | 17.0m3/h |
| Max. FeedWaterSDI15 | 5.0 |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pHRange of FeedWaterDuring Continuous Operation | 2-11 |
| pHRange of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
