Extreme Low Pressure Reverse Osmosis Membranes Element XLP-4040 For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | XLP-4040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Features: | Extreme Low Pressure | Active Membrane Area: | 8.4m2 |
|---|---|---|---|
| Permeate Flow GPD(T/D): | 2400(9.1) | Stable. Rejection Rate (%): | 99.2 |
| Concentration Of Solution (NaCl): | 500ppm | Temperature （℃）: | 25 |
| PH Value: | 7.5-8 | Operating Pressure Psi(MPa): | 100(0.69) |
| Recovery Rate （%）: | 15% | ||
| Highlight: | Industrial Reverse Osmosis Membranes Element,Industrial Reverse Osmosis Membranes,XLP-4040 Reverse Osmosis Membranes |
||
Product Description

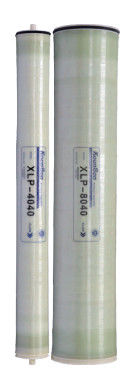

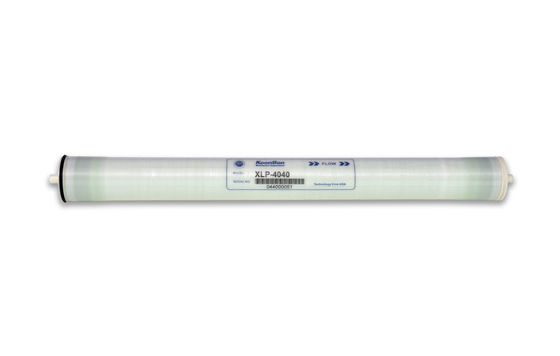

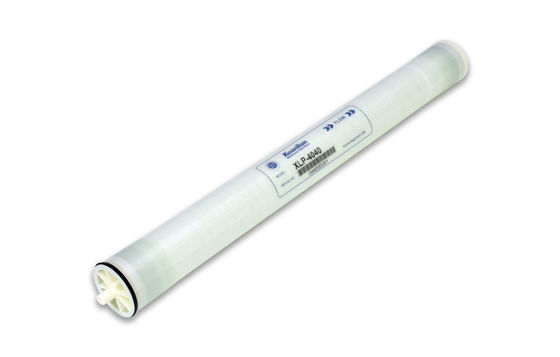

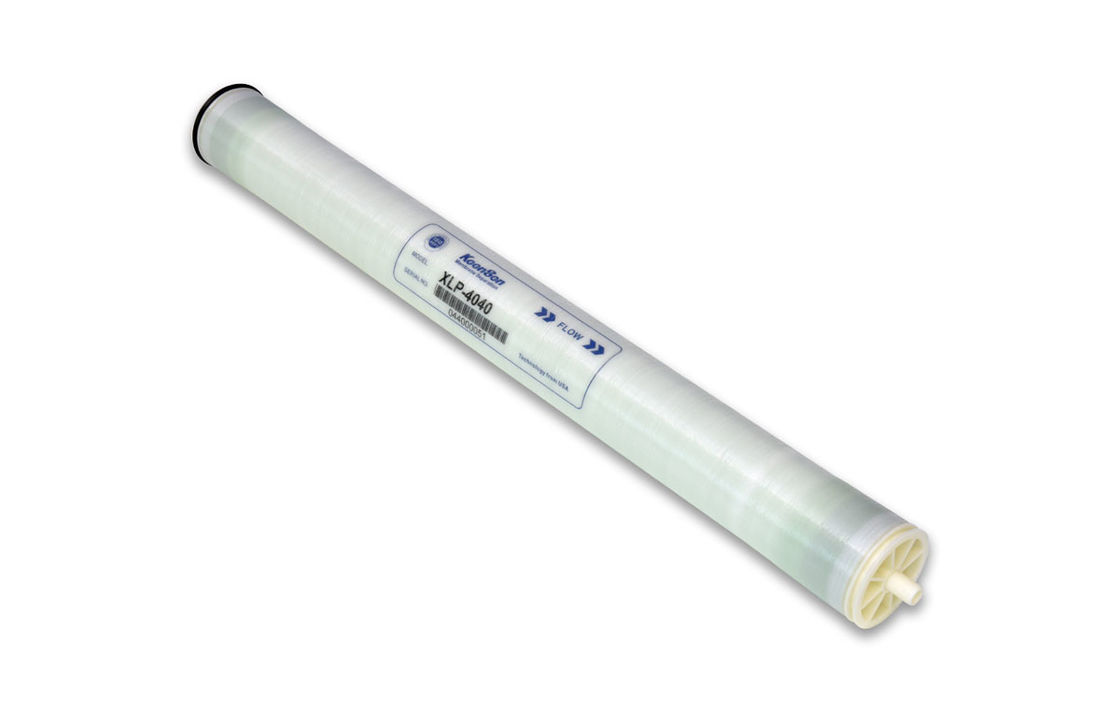

Extreme Low Pressure Reverse Osmosis Membranes Element XLP-4040 For Industrial
It is applicable to the desalination of municipal water, groundwater with salt concentration less than 1000ppm. It can be widely used in pure water preparation and related industries.
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
| XLP-4040 | 90(8.4) | 28 | 2600(9.8) | 99.20 | 99.00 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L | 25 | 7.5-8 | 100(0.69) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 3.6m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
