OEM 180cm Ion Exchange Water Purification System

OEM 180cm Ion Exchange Water Purification System

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/NSF etc.
Model Number: IX-2B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Technology: Pressurized Filtration Material: Carbon Steel/FRP/stainless Steel
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Water Flow Rate: Up To 200 M3/day.vessel Voltage: 380V,415V,220V,can Be Customized
Application: Surface, Underground Water, Sewage Water Treatment Size: Dia.20cm~180cm
Control: Electronic,Manual/PLC
High Light:

180cm Ion Exchange Water Purification System


FRP 180cm Ion Exchange Water Purification System


180cm OEM ion exchange water filter

Product Description

OEM 180cm Ion Exchange Water Purification System

Ion exchange water purification system demineralize two-bed ormixed-bed configuration

Demineralization is the process of removing mineral salts from Water by using the ion exchange process.
Demineralised Water is Water completely free ( or almost ) of dissolved minerals as a result of one of the following processes :

  • Distillation
  • Deionization
  • Membrane filtration (reverse osmosis or nanofiltration)
  • Electrodyalisis
  • Or other technologies.

Demineralized Water also known as Deionized Water, Water that has had its mineral ions removed. Mineral ions such as cations of sodium, calcium, iron, copper, etc and anions such as chloride, sulphate, nitrate, etc are common ions present in Water. Deionization is a physical process which uses specially-manufactured ion exchange resins which provides ion exchange site for the replacement of the mineral salts in Water with Water forming H+ and OH- ions. Because the majority of Water impurities are dissolved salts, deionization produces a high purity Water that is generally similar to distilled Water, and this process is quick and without scale buildup. De-mineralization technology is the proven process for treatment of Water. A DM Water System produces mineral free Water by operating on the principles of ion exchange, Degasification, and polishing. Demineralized Water System finds wide application in the field of steam, power, process, and cooling.

Raw Water is passed via two small polystyrene bead filled (ion exchange resins) beds. While the cations get exchanged with hydrogen ions in first bed, the anions are exchanged with hydroxyl ions, in the second one.

In the context of Water purification, ion-exchange is a rapid and reversible process in which impurity ions present in the Water are replaced by ions released by an ion-exchange resin. The impurity ions are taken up by the resin, which must be periodically regenerated to restore it to the original ionic form. (An ion is an atom or group of atoms with an electric charge. Positively-charged ions are called cations and are usually metals; negatively-charged ions are called anions and are usually non-metals).

The following ions are widely found in raw Waters :


  • Calcium (Ca2+)
  • Magnesium (Mg2+)
  • Sodium (Na+)
  • Potassium (K+)


  • Chloride ( Cl-)
  • Bicarbonate (HCO3-)
  • Nitrate (NO3-)
  • Carbonate (CO32-)
Model Pump Flow PSF ACF Cation Resin Anion Resin Skid Dosing Tanks Conductivity Meter
IXC - 05 50 to 80 LPH Cartridge Filter Included Included Included Included Included
IXC - 15 500 LPH 618 618 Included Included Included Included Included
IXC - 30 800 LPH 844 844 Included Included Included Included Included
IXC - 50 800 LPH 1054 1054 Included Included Included Included Included
IXC - 100 1200 LPH 1354 1354 Included Included Included Included Included
IXC - 140 2000 LPH 1465 1465 Included Included Included Included Included
IXC - 180 2500 LPH 1665 1665 Included Included Included Included Included
IXC - 260 3000 LPH 1865 1865 Included Included Included Included Included
IXC - 300 3500 LPH 2162 2162 Included Included Included Included Included
IXC - 440 5000 LPH 2472 2472 Included Included Included Included Included
IXC- 710 6500 LPH 3072 3072 Included Included Included Included Included


DM Plants works better for TDS in the range of 100 ppm to 600 ppm
Vessels MOC FRP
Vessels Make Pentair / Equi
Pump Horizontal, Centrifugal - CRI / Kirloskar
Resin Make Thermax / Ion Exchange
Skid MS - Powder Coated
Typically DM plants produce TDS < 30 ppm at outlet, depending upon the raw water TDS.
For TDS < 5 ppm- One needs to consider Mixed Bed (MB) unit after DM plant


Ion Exchange Resins

There are two basic types of resin - cation-exchange and anion-exchange resins. Cation exchange resins will release Hydrogen (H+) ions or other positively charged ions in exchange for impurity cations present in the Water. Anion exchange resins will release hydroxyl (OH-) ions or other negatively charged ions in exchange for impurity anions present in the Water.

The application of ion-exchange to Water treatment and purification. There are three ways in which ion-exchange technology can be used in Water treatment and purification :

first, cation-exchange resins alone can be employed to soften Water by base exchange; secondly, anion-exchange resins alone can be used for organic scavenging or nitrate removal; and thirdly, combinations of cation-exchange and anion-exchange resins can be used to remove virtually all the ionic impurities present in the feedWater, a process known as deionization. Water deionizers purification process results in Water of exceptionally high quality



For many laboratory and industrial applications, high-purity Water which is essentially free from ionic contaminants is required. Water of this quality can be produced by deionization.The two most common types of deionization are :
• Two-bed deionization
• Mixed-bed deionization

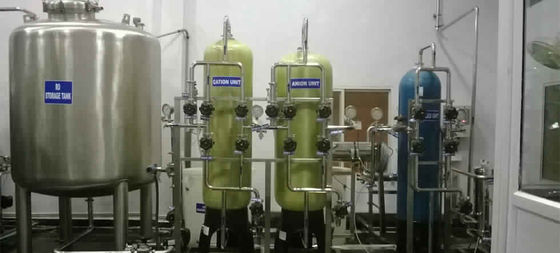

Two-bed deionization

The two-bed deionizer consists of two vessels - one containing a cation-exchange resin in the hydrogen (H+) form and the other containing an anion resin in the hydroxyl (OH-) form. Water flows through the cation column, whereupon all the cations are exchanged for hydrogen ions. To keep the Water electrically balanced, for every monovalent cation, e.g. Na+, one hydrogen ion is exchanged and for every divalent cation, e.g. Ca2+, or Mg2+, two hydrogen ions are exchanged. The same principle applies when considering anion-exchange. The decationised Water then flows through the anion column. This time, all the negatively charged ions are exchanged for hydroxide ions which then combine with the hydrogen ions to form Water (H2O).


Mixed-bed deionization

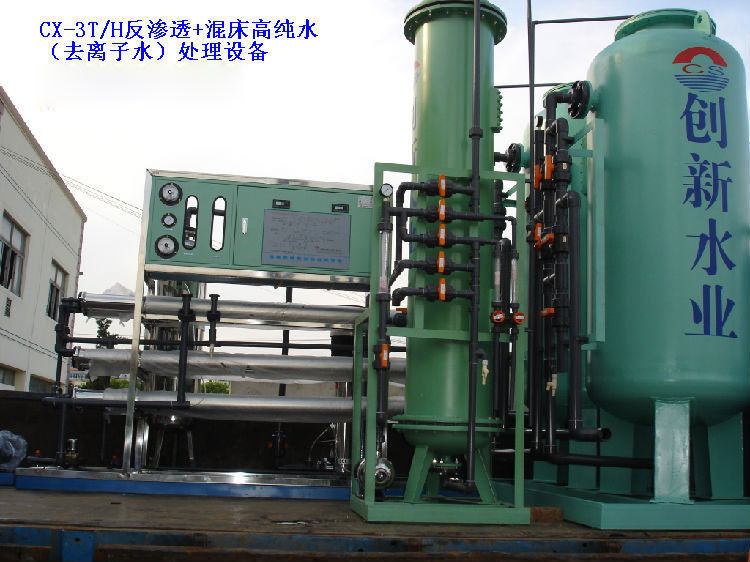

In mixed-bed deionizers the cation-exchange and anion-exchange resins are intimately mixed and contained in a single pressure vessel. The thorough mixture of cation-exchangers and anion-exchangers in a single column makes a mixed-bed deionizer equivalent to a lengthy series of two-bed plants. As a result, the Water quality obtained from a mixed-bed deionizer is appreciably higher than that produced by a two-bed plant. Although more efficient in purifying the incoming feedWater, mixed-bed plants are more sensitive to impurities in the Water supply and involve a more complicated regeneration process. Mixed-bed deionizers are normally used to ‘polish' the Water to higher levels of purity after it has been initially treated by either a two-bed deionizer or a reverse osmosis unit.


Electrodeionization EDI

Electrodeionization Systems remove ions from aqueous streams, typically in conjunction with reverse osmosis (RO) and other purification devices. Our high-quality deionization modules continually produce ultrapure Water up to 18.2MW/cm. EDI may be run continuously or intermittently


  • Variety of cost effective standard models.
  • Improved aesthetics and rugged design.
  • User friendly, low maintenance and easy to install.
  • Simpler distribution and collection systems.
  • Quick availability.
  • Pre dispatch assembly check.
  • The multiport valves are top mounted as well as side mounted with the necessary high pressure rating PVC piping.
  • Single valve operation as compared to the six valves in conventional filters
  • Each operating step is clearly marked on the valve, thereby eliminating chances of error in the operating sequence.
  • Single valve assembly, with its simplified frontal Piping, simpler distribution collecting systems is Very easy to install.
  • Rust free
  • Less power consumption
  • Durable
  • Economical
  • High shelf life

Major Applications

• Boilers feed Water, Textiles, Pharmaceuticals, Chemicals, Breweries, Swimming pools, Potable Water, Hospitals, Automobile, and Battery, Fertilizers.
• Ion Exchange Plants

- Softener
- Industrial DM Plant
- Two Stage & Multi Stage DM Plants
- Mix Bed Demineraliser

- De-Gasifiers
- Cation Polisher
- Manual/Automatic Plants
- Pharmaceutical Industry

- Power Plant
- Oil & Gas sector
- Chemical Industries
- Textile Industries


Food Industry, Pharmaceutical industry, Automobile, laboratory, and many more.
