Skid Mount 1000TPD Industrial Marine RO Water Maker
Product Details:
Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE/UL/NSF etc. |
Model Number: | SWRO-50TPD~1000TPD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
Delivery Time: | 15~30 days |
Payment Terms: | T/T, Western Union, Paypal etc. |
Supply Ability: | 50 set per month |
Detail Information |
|||
Technology: | Reverse Osmosis | Design: | Skid Mount |
---|---|---|---|
Recovery Rate: | 35~40% | Feed TDS/ppm: | <42,000 |
Water Temp.: | 5~35˚C | PH: | 4~9 |
TSS/mg/L: | <5 | Silt Density Index: | <3 |
Free Chlorine Mg/L: | 0 | Dissolved Iron Mg/L: | <0.1 |
Warranty: | 1 Year | Material: | SS304/SS316L,carbon Steel |
Capacity: | 0.5-100m3/h | Voltage: | 380V,415V,220V,can Be Customized |
Application: | Water Purification,Filtration,pharmceutical,drinking Water,food | Size: | Depends,1750*550*1650mm |
Type: | Seawater Reverse Osmosis System | Function: | Water Purifying, Desalination |
Desalination Rate: | 99%,99.7% | Control: | Electronic,Manual/PLC |
Ro Membrane: | Hydranautics Or DOW,4040 | Pump: | Danfoss/CAT/CNP |
High Light: | 1000TPD marine ro water maker,Skid mount marine ro water maker,1000TPD reverse osmosis watermaker |
Product Description

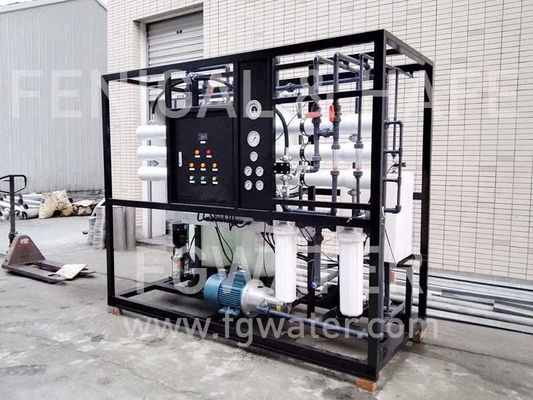

Skid Mount 1000TPD Industrial Marine RO Water Maker
SWRO-1000 Industrial Seawater Reverse Osmosis Watermaker Systems 50TPD~1,000TPD
Sea Water Reverse Osmosis (SWRO) plants are designed to treat sea water, or high salinity ground water, with < 40,000 mg/L of dissolved solids (TDS) and < 30 mg/L of suspended solids (TSS), to achieve potable water quality.
The standard treatment process involves pre filtration (auto-backwashing multimedia filters and cartridge filters), anti-scalant dosing to prevent membrane scaling, RO desalination and auto flushing and CIP systems for membrane cleaning. Additional pre-RO and post-RO treatment steps may be added as required to suit feed water conditions and/or treated water quality requirements.

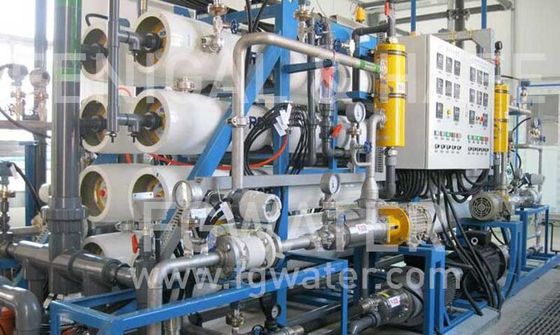

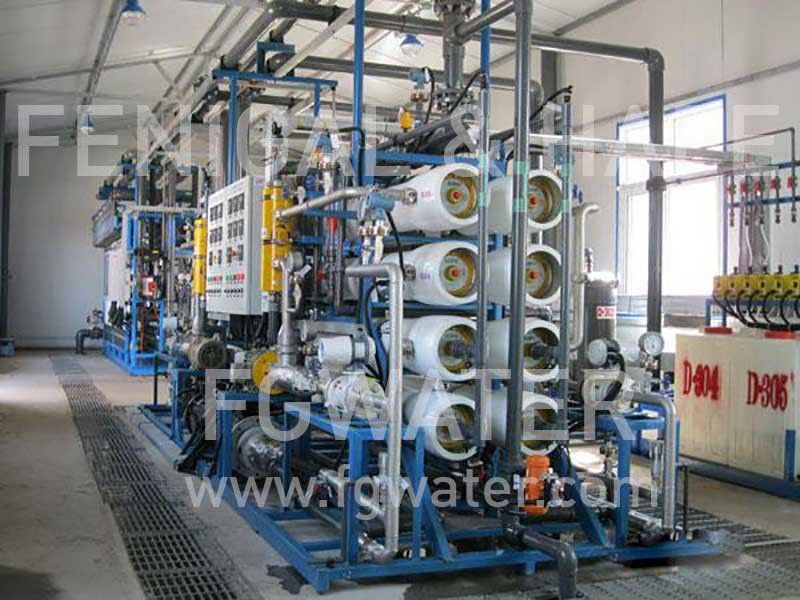

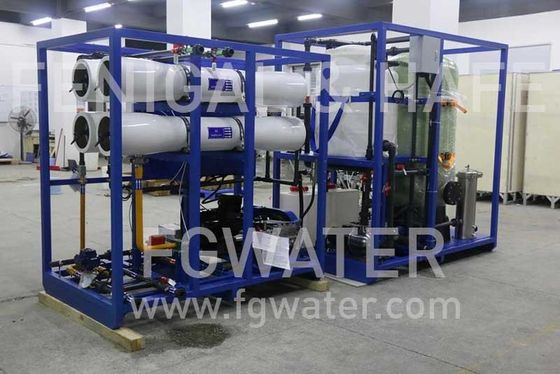

Our SWRO plants are available as skid mounted or containerized systems.
STANDARD SPECIFICATIONS
Parameter | Units | SWRO-50 | SWRO-100 | SWRO-150 | SWRO-250 | SWRO-500 | SWRO-1000 | |
Permeate Flow Rate | m3/day | 50 | 100 | 150 | 250 | 500 | 1000 | |
Permeate Recovery Rate | % | 40 (typical) | ||||||
Permeate TDS | mg/L | <500 (typical) | ||||||
Raw Water TDS | mg/L | <35,000 | ||||||
Raw Water TSS | mg/L | <30 | ||||||
Raw Water Temperature | °C | 15 ~ 35 | ||||||
Ambient Design Temperature | °C | 5 ~ 45 (-15 ~ 50 for insulated containerised system) | ||||||
Feed Water Inlet Pressure | kPa | >15 (flooded suction) | ||||||
Permeate Discharge Pressure | kPa | ~40 (higher discharge pressures available on request) | ||||||
Brine Discharge Pressure | kPa | ~40 (higher discharge pressures available on request) | ||||||
Power Supply | - | AC 380~450 V, 3Phase, 50/60 Hz | ||||||
Power Consumption |
Standard | kW | 20 | 25 | 35.5 | 52.5 | 105 | 190 |
High Efficiency | - | - | 26 | 43 | 71 | 142 | ||
No. Containers (Optional) | - | 1 x 20' | 1 x 20' | 1 x 40' | 1 x 40' | 2 x 40' | 2 x 40' |
STANDARD INCLUSIONS + OPTIONS
✓= Standard Supply o = Optional Supply - = Not Applicable
Equipment | SWRO-50 | SWRO-100 | SWRO-150 | SWRO-250 | SWRO-500 | SWRO-1000 | |
Skid Mounted Plant & Equipment | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Low Pressure Feed Pump | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
High Pressure RO Pump (c/w ERD) | Std Efficiency | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
High Efficiency | - | - | o | o | o | o | |
Pre-filtration | Multimedia | o | ✓ | ✓ | ✓ | o | o |
Ultra Filtration | o | o | o | o | ✓ | ✓ | |
Cartridge Filters | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Anti Scalant Dosing System | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Membrane CIP & Auto Flush System | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
PLC Control System with HMI | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Containerized system, c/w A/C & Lights | o | o | o | o | o | o | |
Container Insulation (walls & ceiling) | o | o | o | o | o | o | |
Container non-slip floor coverings | o | o | o | o | o | o | |
Container Side Access Door | o | o | ✓ | ✓ | ✓ | ✓ | |
Additional Pre-RO Treatment | o | o | o | o | o | o | |
Additional Post-RO Treatment | o | o | o | o | o | o | |
Premium Instrumentation Package | o | o | o | o | ✓ | ✓ | |
Permeate Distribution Pump Set | o | o | o | o | o | o |
Instrumentation | Standard Package | Premium Package |
Pressure Gauges | ✓ | ✓ |
Pressure Transmitters (4-20 mA) | - | ✓ |
HP RO Pump Inlet Low Pressure Switch | ✓ | ✓ |
Flow Gauges (Rotameters) | ✓ | - |
Flow Transmitters (4-20 mA) | - | ✓ |
Conductivity Transmitter (4-20 mA) | ✓ | ✓ |
Float Switches (Feed/Permeate, Chemical Dosing & CIP Tanks) | ✓ | ✓ |
Remote Monitoring & Control Capabilities | - | ✓ |
More information about SWRO
What is seawater reverse osmosis?
Seawater reverse osmosis systems are designed to decline more than 99% of saline compromised within the feed water. These systems also incorporate a rinsing, chemical purifying apparatus to eliminate sodium chloride, avert scaling, and preserve system performance. There are two fundamental elements within every seawater reverse osmosis system, which are reverse osmosis membranes and high pressure feed pumps. These elements make up the center of any reverse osmosis system and need special consideration and application for successful operation.
Does reverse osmosis remove salt from seawater?
Yes, semipermeable membranes enable the feed water to pass through it at a much higher volume than dissolved salts. Reverse osmosis systems work by applying pressure as freshwater streams through its membranes to filter out the concentrated saline in the feed water, as well as minerals and pollutants. These unwanted impurities are either flushed away, recycled, or processed. Seawater reverse osmosis systems utilize more than one membrane to boost the load of purified water turned out each day.
What are the advantages of desalination plants?
Seawater desalination has become a vital alternative to the production of pure freshwater throughout the areas of the world without drinkable water. As other sources such as rivers, lakes, wells, and springs have become more exhausted due to excessive extraction, the ocean has provided an abundant supply of available water for human use. Although ocean water consists of elevated levels of salt, and therefore is unable to be utilized for consumption or most other purposes, seawater desalination has helped make it practical.
