Carbon Steel Ro Ce Reverse Osmosis Water Treatment System 1000l/H
Product Details:
Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE etc. |
Model Number: | Rogen |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
Delivery Time: | 15~30 days |
Payment Terms: | T/T, Western Union, Paypal etc. |
Supply Ability: | 50 set per month |
Detail Information |
|||
Technology: | Reverse Osmosis | Design: | Skid Mount |
---|---|---|---|
Permeate Flow/TPD: | 10~1000 | Recovery Rate: | 60~90% |
Feed TDS/ppm: | <2,000 | Water Temp.: | 5~35˚C |
Material: | SS304/SS316L,carbon Steel | Free Chlorine Mg/L: | 0 |
Silt Density Index: | <3 | Dissolved Iron Mg/L: | <0.1 |
Size: | Depends,1750*550*1650mm | Capacity: | 0.5-110m3/h |
Desalination Rate: | 98%, 99% | TSS/mg/L: | <5 |
Voltage: | 380V,415V,220V,can Be Customized | Application: | School, Restaurant, Offices |
PH: | 3~9 | Pump: | CNP / Grundfos,CNP |
Type: | Reverse Osmosis System | Function: | Water Purifying, Desalination |
High Light: | ce reverse osmosis water treatment system,carbon steel small reverse osmosis system,reverse osmosis water treatment system 1000l/h |
Product Description

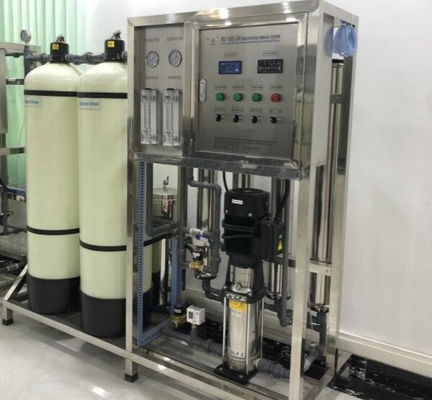

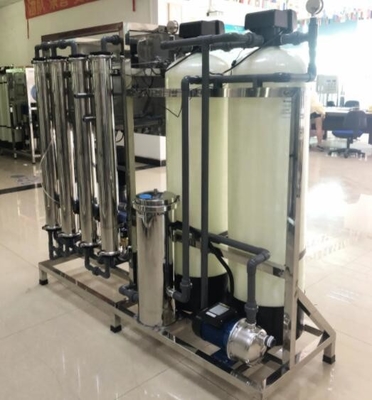

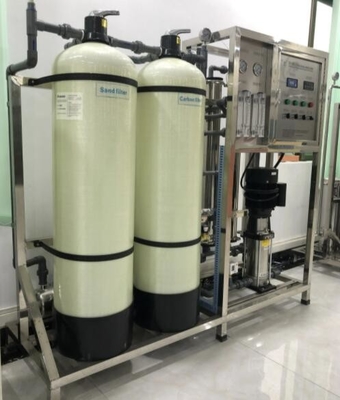

Carbon Steel Ro Ce Reverse Osmosis Water Treatment System 1000l/H
RO 1000L/H Water Reverse Osimosis System Water Purifier Purification Plant Factory Price
Working process
Raw water booster pump→quartz sand filter→activated carbon filter→water softener (optional)→security filter→high pressure pump→RO system→UV light(optional)→pure water tank(or bottled water filling production line)
S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | |
5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | |
6 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm | |
7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
8 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec Dow |
Different water TDS compare and usage | ||||
Usage/Source Water | Bottled water, bag Water | City Water | Brackish water | Sea Water |
TDS Range | 2-10ppm | 100-1000ppm | 2000-20,000ppm | 20,000-40,000ppm |
Direct Drinking | Yes | Yes/No | No | No |
Cooking, human consumption, washing | Yes | Yes | No | No |
Irrigation, industry, animal drinking | Yes | Yes | No | No |
Treatment Processes

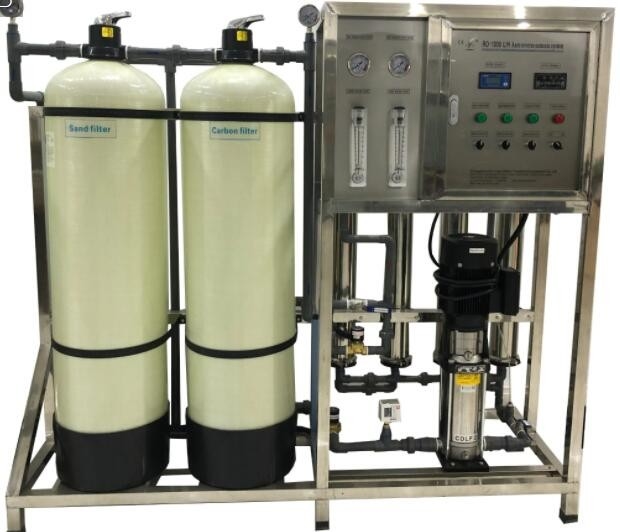

Pre-treatment filters: sand filter and carbon filter
6--PLC(Programmable Logic Controller): Design the progaram as requirements you need.
7--PLC extension module, analog output module. (optional)
8--Air switch:protect the electric system.
9--AC contactor, thermal relay
10--Indicator light, knob switch
11-- Intermediate relay, Fuse box
12-- Terminals, miscellaneous pieces of electrical appliances
13--When the raw water pump or high pressure pump overheat, relay will stop. So it can protect water pumps from damage.
Model: LCLE-4040 Quantity:2 pcs
Brand: Dupont, USA (Top in the world,with high quality and good reputation)
Model: ULP31-4040 Quantity:2 pcs
Brand:VONTRON, made in China
The service life is about 2 years. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.
Optional membrane brand : Toray & HYDECANME & Vontron ...
Main Parameters of the Reverse Osmosis System
Model | KYRO-1000 | Remark |
Production capacity | 1000L/H | |
Power supply | 380V 50Hz 3Phase or customize | 230v 50hz single phase |
Power | 2.5kw | |
Raw water pump | Nanfang Hangzhou | China famous brand |
Quartz sand filter | φ350×1350 fiber glass 1pc | Quartz sand:150kg |
Activated carbon filter | φ350×1350 fiber glass 1pc | Activated carbon:50kg |
Auto water softener | φ300×1400 fiber glass 1pc | Resin:75L |
Security filter | 20 "× 5μm pp filter cartridges, 5pcs | Housing material:SUS-304 |
High pressure pump | Nanfang Hangzhou | |
Reverse osmosis (RO)membrane | USA DOW | |
Membrane housing | 4040 material: SUS-304 | |
Sterilizer device | Ultraviolet lamp or ozone machine |
2.Application:
1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: filter for mineral water, wines and fruit juice
3). Medicine industry: filter for drug liquid, gases
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding
